Micro Self-priming Suction Water Pump DC 3.7V 5V 6V Mini 310 Motor Water Pump Small Diaphragm Air Water Pump DIY Tea Table
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Variant |
|---|---|---|---|
$1720
|
In stock
|
DH-3789-cee05f6739b30b33c8a35fdd
|
Variant:
|
|
$1620
|
In stock
|
DH-3789-ef2cd3660c818003d10bfc0e
|
Variant:
|
$1236
|
In stock
|
DH-3789-8c21d8a7437a551c9d34bca2
|
Variant:
|
City: EN, Sheridan
Specification:
Model B: DC 6V Pump
1.Model B: RF-310 Motor Mini Pump
2.Type: Diaphragm Pump
3.Rated voltage: DC 6V
4.Test data:
Voltage:6.0V Current:150mA
5.Suitable voltage: DC 3.7V-7.4V
6.Suction lift: ≥ 1 meter
7.Lift: ≥ 2 meter
8.Weight: 40g
=========================
Package List:
Mini Pump x 1PCS
1.Model: Mini 320 Water Pump
2.Motor diameter: 24mm
3.Pump head diameter: 27mm
4.Pump height: 48mm
5.Water inlet/outlet diameter: 5mm
6.Weight: 42g
7.Cable length: 150mm
8.Rated voltage: DC 6V
9.Working current: 370mA
10.Flow: about 800mL/min
11.Suitable voltage: DC 3.0V-6.0V
12.Working current: 220mA-370mA

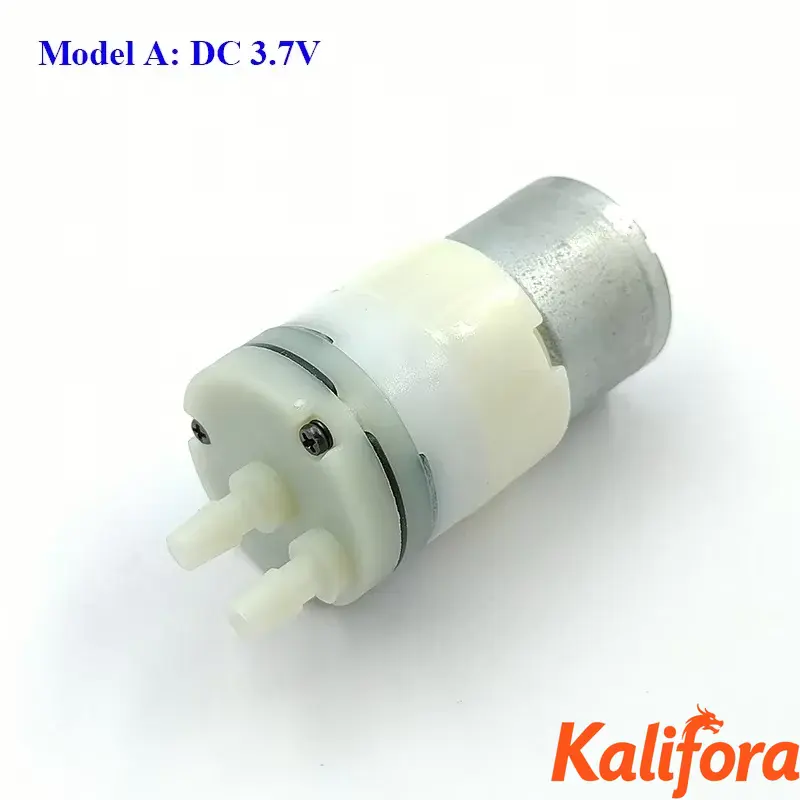

Model A: DC 3.7V Pump
1.Model: Mini 310 Water Pump
2.Motor diameter: 24mm
3.Pump head diameter: 27mm

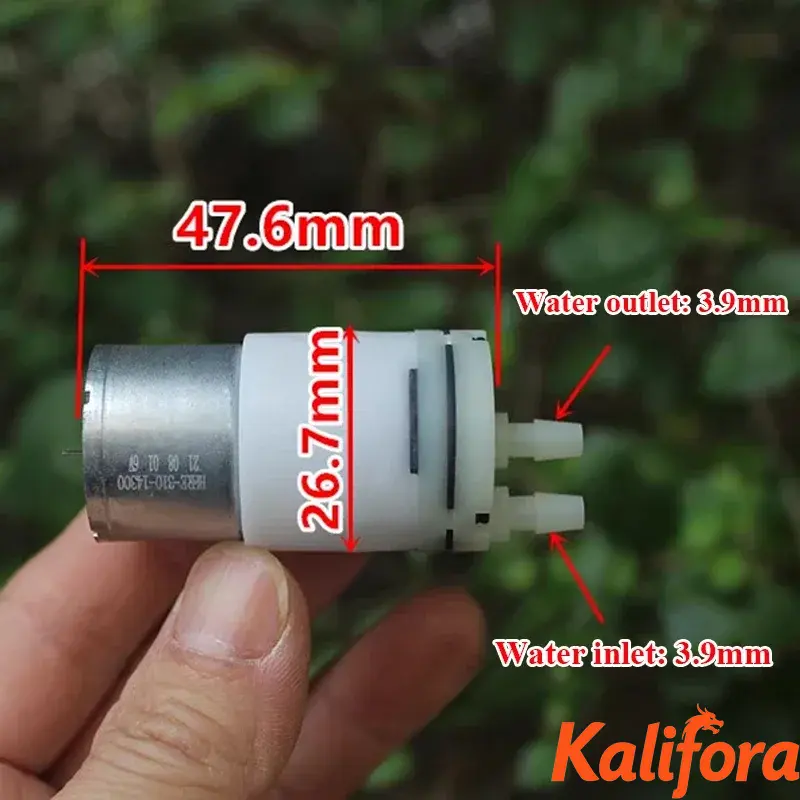

4.Pump height: 47.6mm
5.Water inlet/outlet diameter: 5mm
6.Weight: 40g
7.Rated voltage: DC 3.7V
8.Working current: 600mA
9.Flow: about 600mL/min
10.Suitable voltage: DC 3.0V-5.0V
11.Working current: 500mA-850mA
Product specifications
| EU LVD Voltage | Low voltage: Below 50Vac or 75Vdc |
|---|---|
| Structure | Diaphragm Pump |
| Power Source | Electric |
| Certification | CE |
| Does it include batteries | Not included |
| Country of origin | China Mainland |
| Pressure | Low Pressure |
| Usage | Water |
| Model Number | Mini 310 Water Pump |
| Application | Metering |
| Power (W) | Electric |
| Fuel | Electric |
| Rated voltage | DC 6V |
| Suitable voltage | DC 3.7V-7.4V |
| Weight | 40g |
