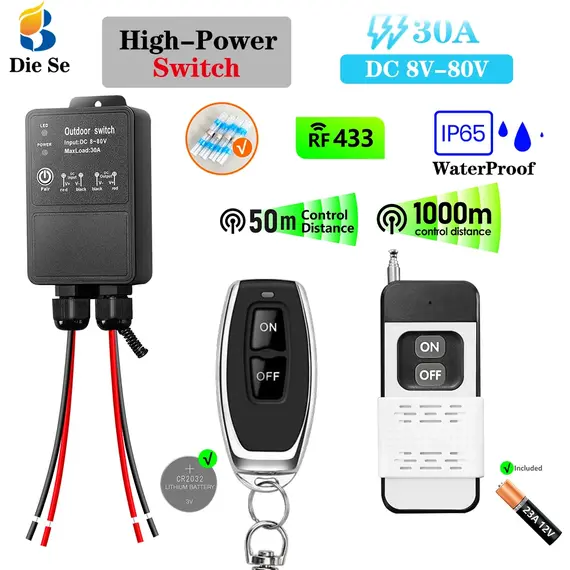

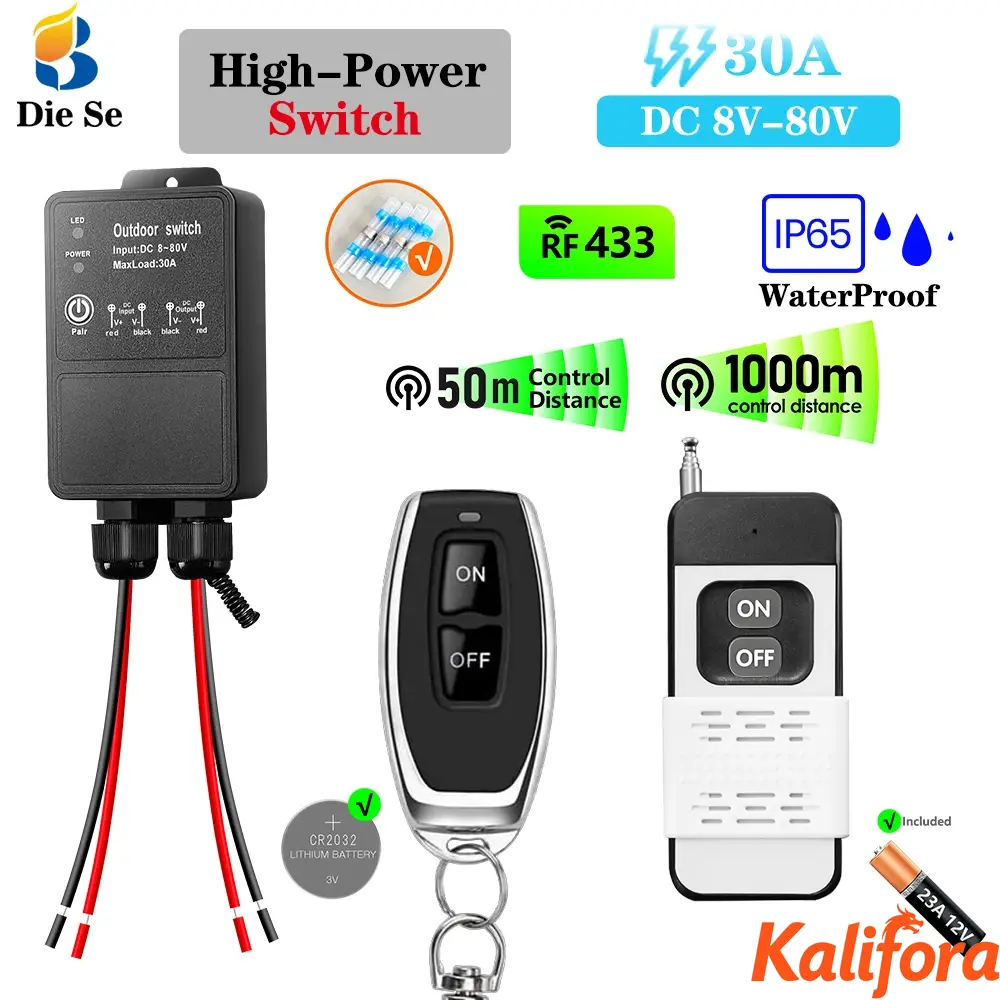

DC 12V 24V 30A RF High Power WaterProof Switch 433MHz Wireless Remote Control Switch Transmit 1000M for Water Pump LED Fan
$13264
DC 12V 24V 30A RF High Power WaterProof Switch 433MHz Wireless Remote Control Switch Transmit 1000M for Water Pump LED Fan
DH-3902-ab0f16d4cf82127bfb8c0227
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Variant |
|---|---|---|---|
|
$13264
|
In stock
|
DH-3902-ab0f16d4cf82127bfb8c0227
|
Variant:
|
$4152
|
In stock
|
DH-3902-7a75023700b38c2183902620
|
Variant:
|
$1804
|
In stock
|
DH-3902-248f193c52a8e681e5d0d48d
|
Variant:
|
$2168
|
In stock
|
DH-3902-90412d54caf5bd93814596fe
|
Variant:
|
$4736
|
In stock
|
DH-3902-76709a7749c0aefa5bb12f96
|
Variant:
|
$11532
|
In stock
|
DH-3902-950c7dd5e92099008fbaf003
|
Variant:
|
$4920
|
In stock
|
DH-3902-e4a7c74fbc708f3a0d836d38
|
Variant:
|
$9584
|
In stock
|
DH-3902-a9a53a0b2e4c05991bd11f29
|
Variant:
|
$4512
|
In stock
|
DH-3902-7eaa6e3e0b3e5fae58dd06db
|
Variant:
|
Kalifora is a global online marketplace that makes it easier to discover and shop for...
City: EN, Sheridan
Description
Video Display
This is a high-power waterproof receiver, suitable for most scenarios, the most common of which are LED, water pump and household equipment control. If you like it, you can place an order directly.

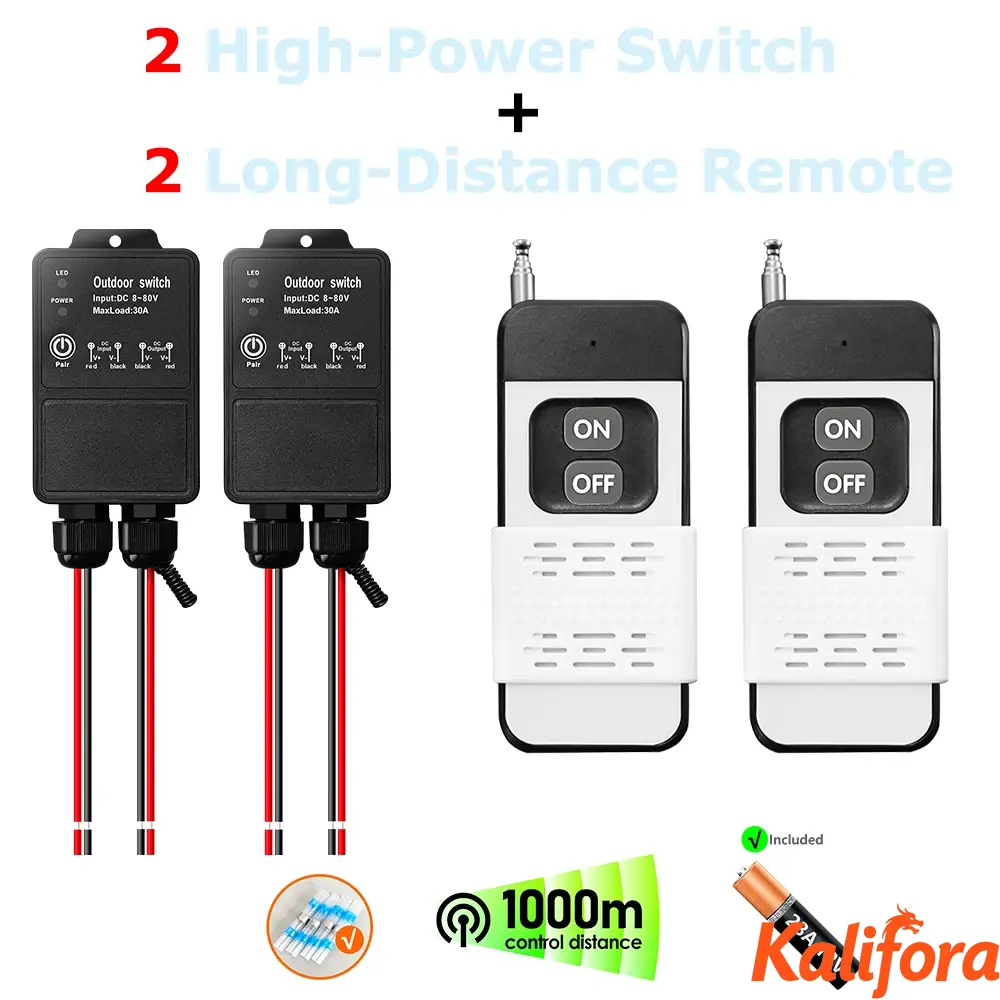

Before purchasing, please make sure whether you are buying a set or a single receiver or a single remote control. It is not recommended to buy a single receiver or a single remote control unless you have a single receiver or a single remote control to use with it. Thank you
Before purchasing, please make sure whether you are buying a set or a single receiver or a single remote control. It is not recommended to buy a single receiver or a single remote control unless you have a single receiver or a single remote control to use with it. Thank you
Product Advantages
30A High-Power Switch Module
The working voltage is DC 8-80 V, and the maximum current is 30A. Equipment capable of carrying 400W high power makes the receiver more widely used. The current of 10A is no longer sufficient, but 30A can meet this requirement very well.Easy to connect
There are only V+ and V- wires at the input and output terminals. You only need to find the correct wire port to connect. The operation is simple.433 Wireless radio frequency remote control
The remote control uses RF433MHz, 1527 learning code/2262 fixed code, and powerful chip functions. It is waterproof and can still be used normally after being splashed with water.Long Distance Launch
The transmitting distance in an open outdoor area can reach 1000M.3 Programmable Modes
There are 2 programmable modes: Momentary mode, Toggle mode, Latched mode. You can change the programming according to your own preferences, easy to operate.IP65 WaterProof Rating
The switch adopts a closed design and is not afraid of outdoor rain. Comes with hot-melt wiring tube, which can make the wiring more perfectly sealed and waterproof after hot-melting.
One receiver can be paired with multiple remote controls, and one remote control can be paired with multiple receivers
One receiver supports storing approximately 20 remote controls, and one remote control can control approximately 3 receivers to achieve diverse controls.Various application scenarios
Can be applied to homes, farms, factories, offices, supermarkets and other places. Can be used to connect lights, electric fans and other household equipment and electrical equipment.
*Comprehensive After-sales and Service.
Our after-sales service team can provide the most professional solution to any of your problems.
Product Features

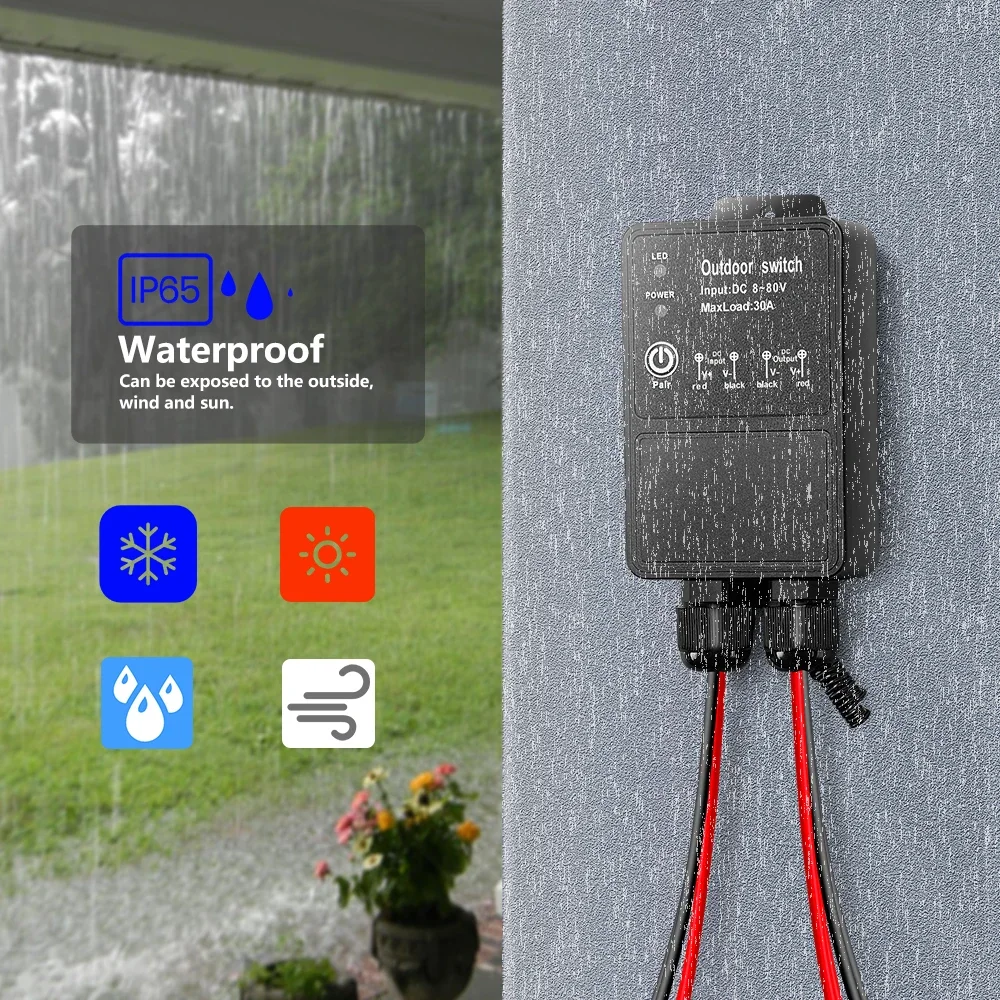

Special design, can be well waterproofed:
The receiver is IP65 waterproof and adopts a closed design. The hot melt method is used at the wiring joint to provide better waterproofing and better convenience for users.
30A High Power, Wide range of product applications:
Products can be used in homes, farms, factories, offices, laboratories, supermarkets, etc.
Remote control water pump\fan\table lamp\LED light\bulb\ventilator\signal transmission.....
Remote control water pump\fan\table lamp\LED light\bulb\ventilator\signal transmission.....
Stable Signal , Anti-interference:
The maximum control distance can be up to 1000 meters in open areas ..

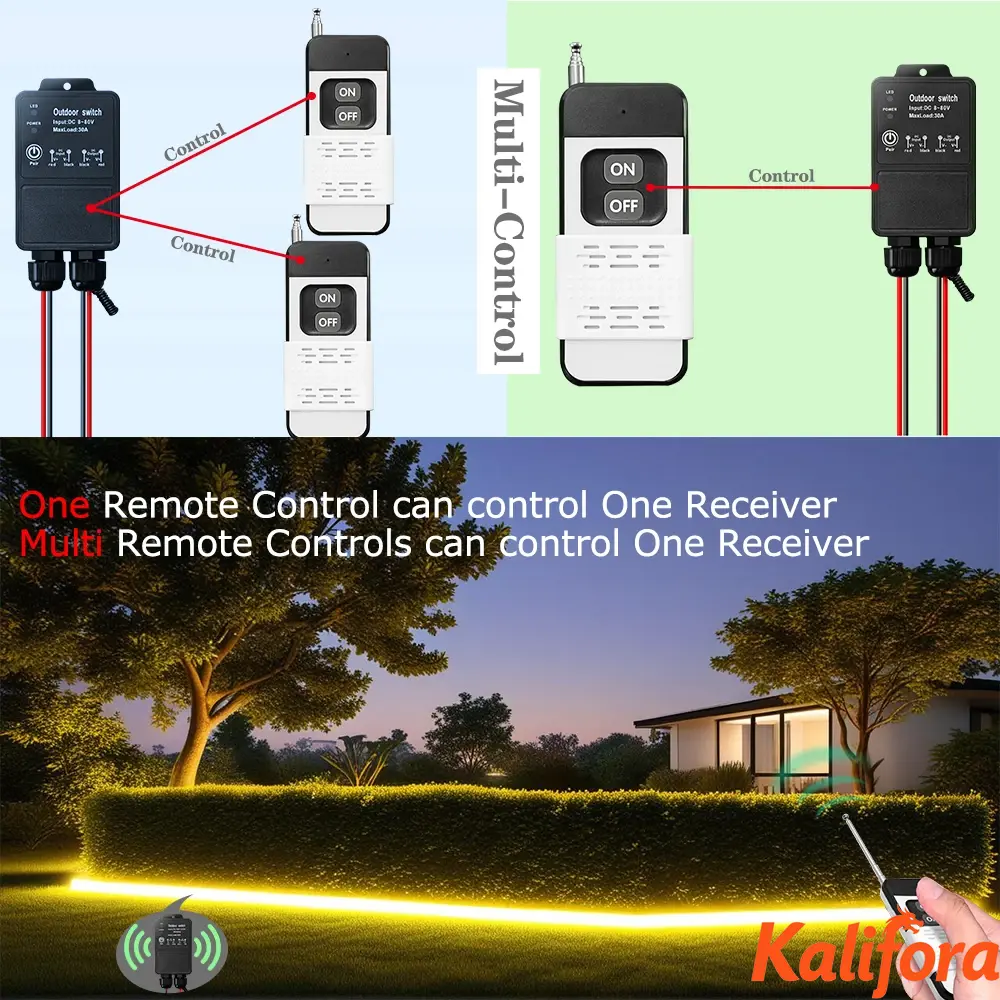

Receiver and remote control enable multiple controls:
One remote control can control one receiver.
One receiver can store the data of approximately 20 remote controls, and one remote control can control approximately 3 receivers.
One receiver can store the data of approximately 20 remote controls, and one remote control can control approximately 3 receivers.

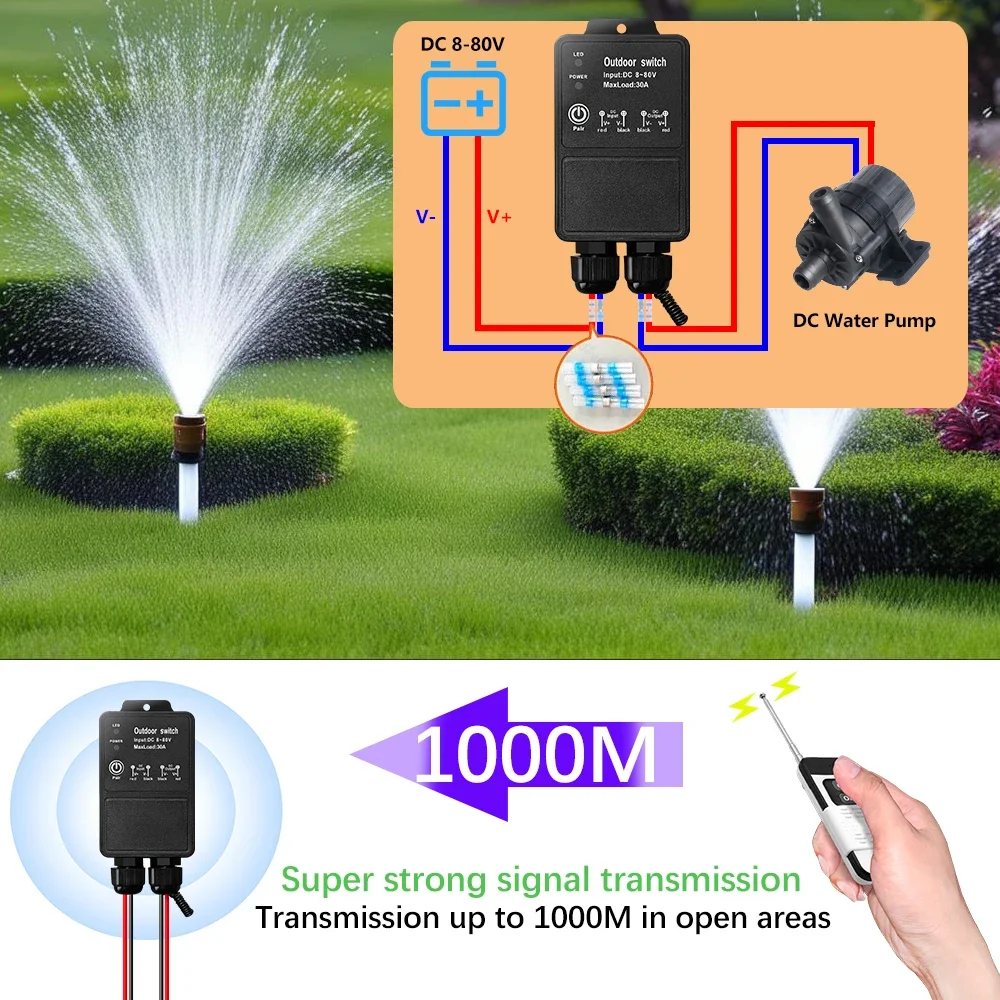

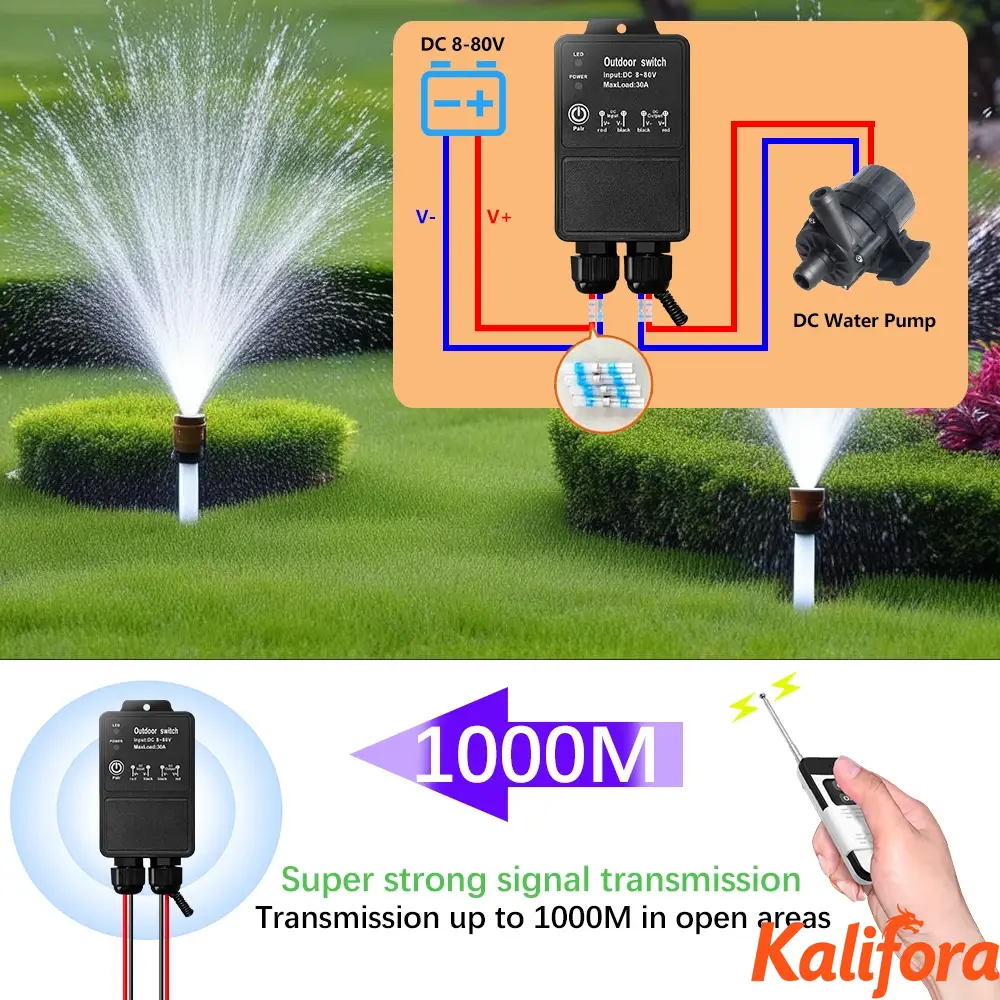

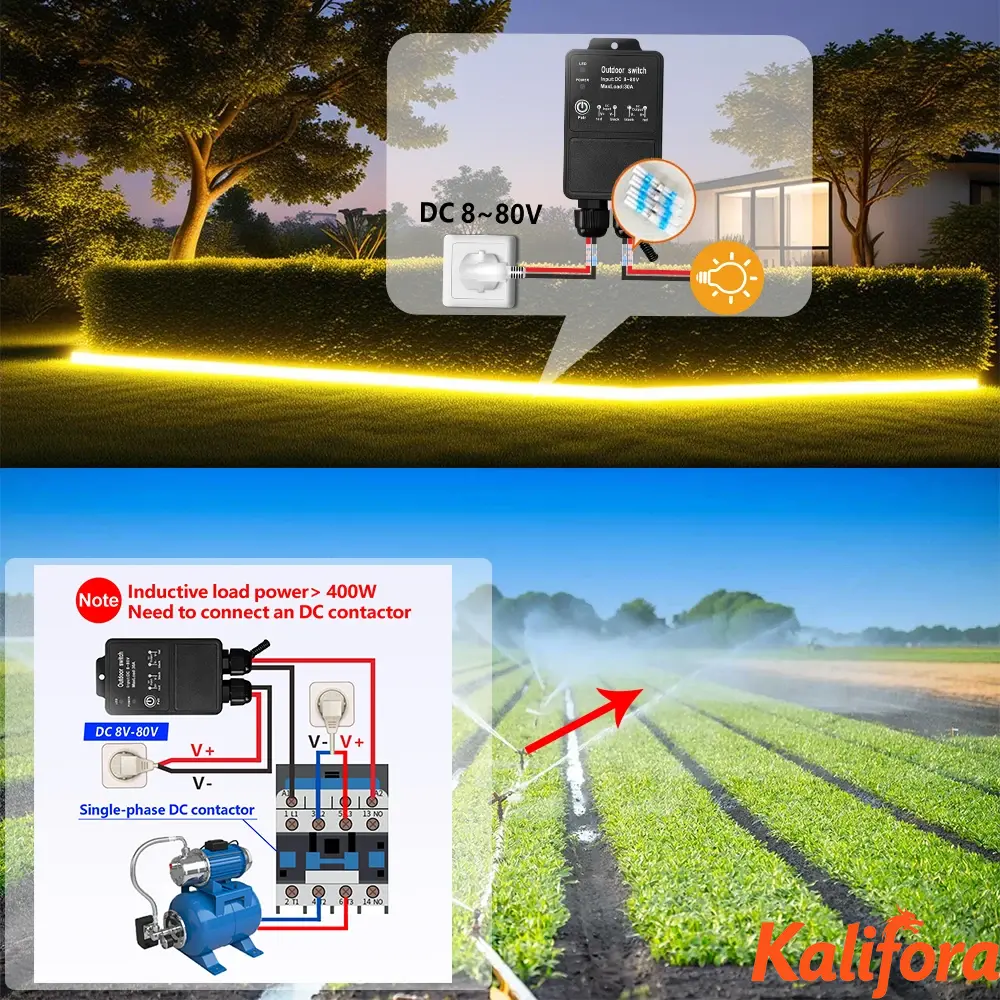

Simple Wiring
Parameter
RF433mhz High-Power Wireless Receiver
Working voltage : DC 8-80V
Max current : 30A
RF frequency : 433MHz
Working temperature : -30~+80
Receiving Sensitivity : >97dbm
Amount of storage remote controls : about 20 pieces
Support encoding : 1527 leaning code/ 2262 fixed code
RF Operating mode : ASK superheterodyne wireless reception

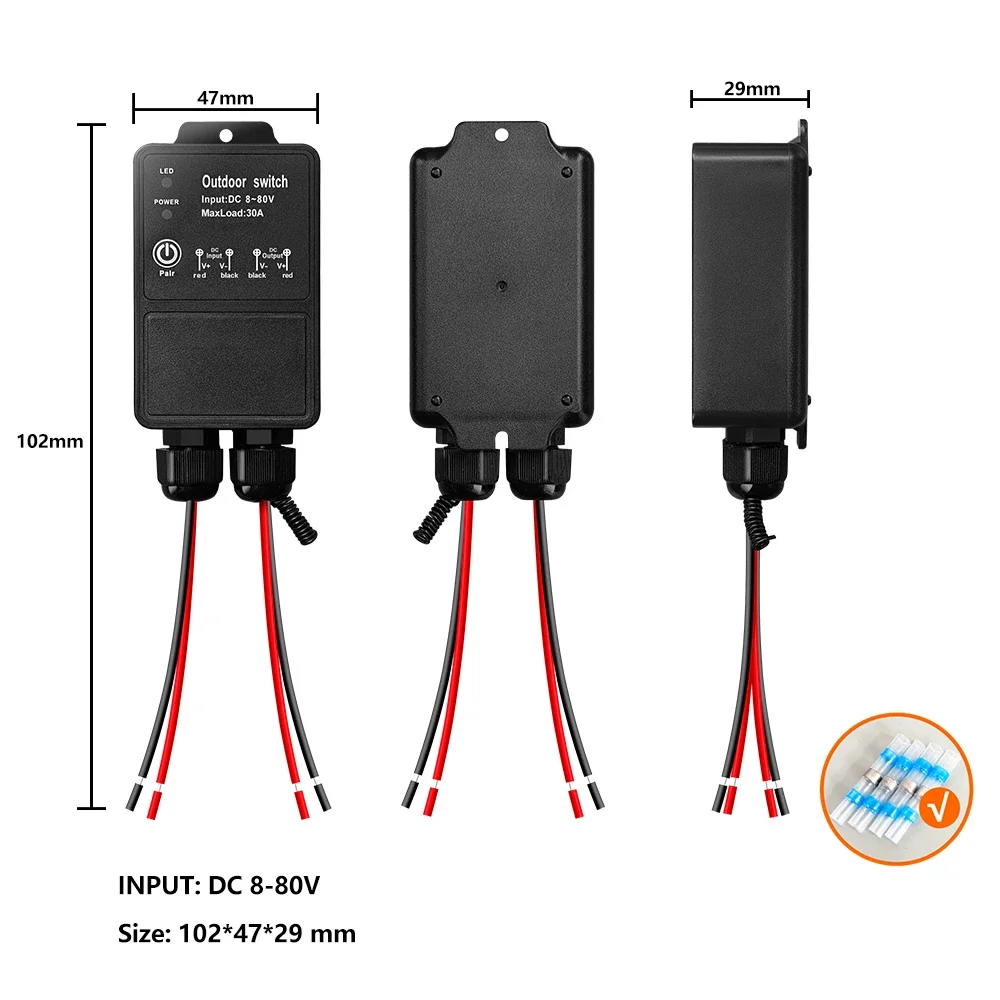

Size: 47*29*93mm
Max current : 30A
RF frequency : 433MHz
Working temperature : -30~+80
Receiving Sensitivity : >97dbm
Amount of storage remote controls : about 20 pieces
Support encoding : 1527 leaning code/ 2262 fixed code
RF Operating mode : ASK superheterodyne wireless reception
Size: 47*29*93mm

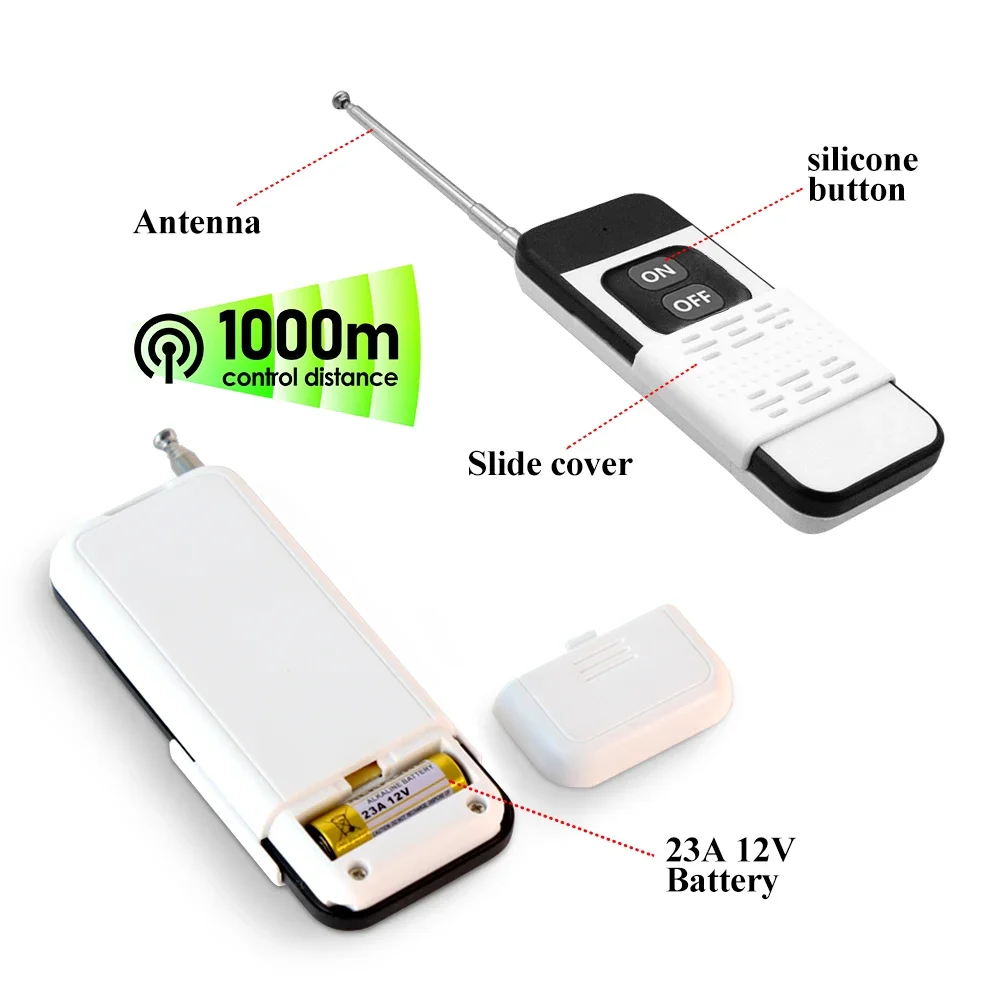

RF433mhz Remote Control
Support encoding : 1527 Leaning code/ 2262 fixed code
Remote distance : up to 50m or 1000m (theoretical distance)
Battery : 1 pcs 23A 12V(included) or 1 pcs CR2032 (included)
RF frequency : 433MHz
Size: 97*40*16 mm or 60*30*13 mm
Intelligent DIY control methods
*Momentary Mode*
1. Press and hold the button, The device will turn ON .
2. Release the button, The device will turn OFF.
2. Release the button, The device will turn OFF.
*Toggle Mode*
1. Pressthe button once,The device will turn ON .
2. Pressthe button again,The device will turn OFF.
*Latched Mode*
2. Pressthe button again,The device will turn OFF.
*Latched Mode*
1. Pressthe "ON" button, The device will turn ON .
2. Pressthe "OFF" button, The device will turn OFF.
Signal pairing
2. Pressthe "OFF" button, The device will turn OFF.
Signal pairing
Note
1. When you receive our products, it may set in one remote mode randomly, that because each product was tested before it can be arranged to shipment. So, please delete the existing data to first use.
2. After deleted the data, all the remote controls cannot work any more.
2. After deleted the data, all the remote controls cannot work any more.
Clear data:
Press the learn button (on the receiver) 8 times until the light flashes. All data is deleted.
Pair RF433mhz signal:
*Momentary Mode
Step1: Press the learning button on the receiver Once , Wait for 3 seconds;
Step2: Press the button on the remote, Wait for 3 seconds; Succeed.
*Toggle Mode
Step1: Press the learning button on the receiver Twice , Wait for 3 seconds;
Step2: Press the button on the remote, Wait for 3 seconds; Succeed.
*Latched Mode*
Step1: Press the learning button on the receiver 3 times , Wait for 3 seconds;
Step2: Press the button "ON" the remote, the indicator light flashes and then lights up;
Step3: Press the button "OFF" the remote,succeed.
About shipping
We usually use Ali standard shipping to ship your parcel within 48 hours after you paid the order.If you want a fast shipping like DHL,UPS,FEDEX,please contact with us.Thank you.
*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
Product specifications
| Brand Name | Diese |
|---|---|
| Material | Plastic |
| Country of origin | China |
| EU LVD Voltage | Low voltage: Below 50Vac or 75Vdc |
| Current | 30A |
| Item Type | SWITCHES |
| Warranty | 1 Year |
| Switch Type | Remote control |
| Remote Distance | 50m or 1000m |
| Certification | CE |
| Certification | RoHS |
| Certification | ce |
| Certification | ROHS |
| Model Number | 2401H2 + KT18 + KT03 |
| Is Smart Device | no |
| Work Voltage | DC 8-80 V |
| Switch size | 47*29*93mm |
| WaterProof Level | IP65 |
| Max Current | 30A |
| RF Frequency | 433MHz |
| Transmission distance | up to 50m or 1000m(Theoretically) |
| Control Port | V+ / V- |
| Code | 1527 Learning Code/2262 Fixed Code |
| Quiescent Current | less than 5MA |
| Working Temperature | -30~+80 Celsius |
| Modulation Mode | ASK superheterodyne wireless reception |
| Number of stored remote controls | about 20 pieces |
| Remote Control Size | 97*40*16 mm or 60*30*13 mm |
| Remote Control Battery | 23A 12V(Include) or CR2032(inclued) |
| Feature | High-Power, Long Distance, Widely Use |
| Application | Fan, Fish tank, Light, LED, Lamps, Motorcycle Switch,Pumps, |
| Application scenario | Family, Farm, Factory, Office, Supermarket |
