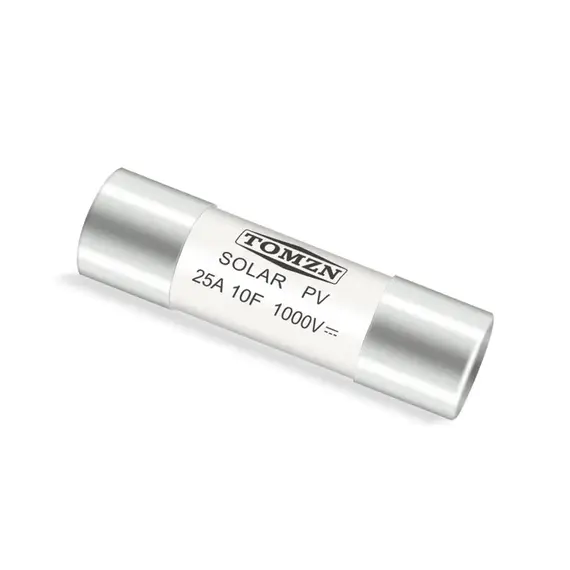

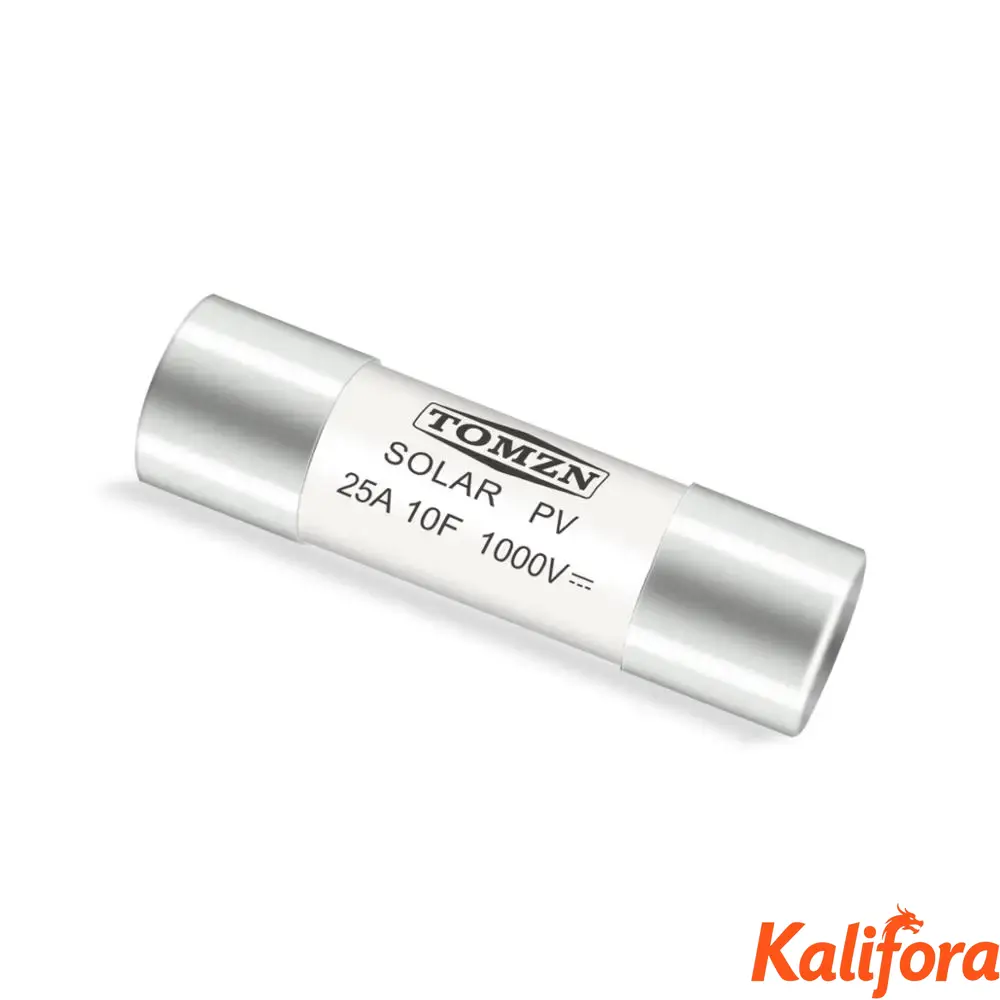

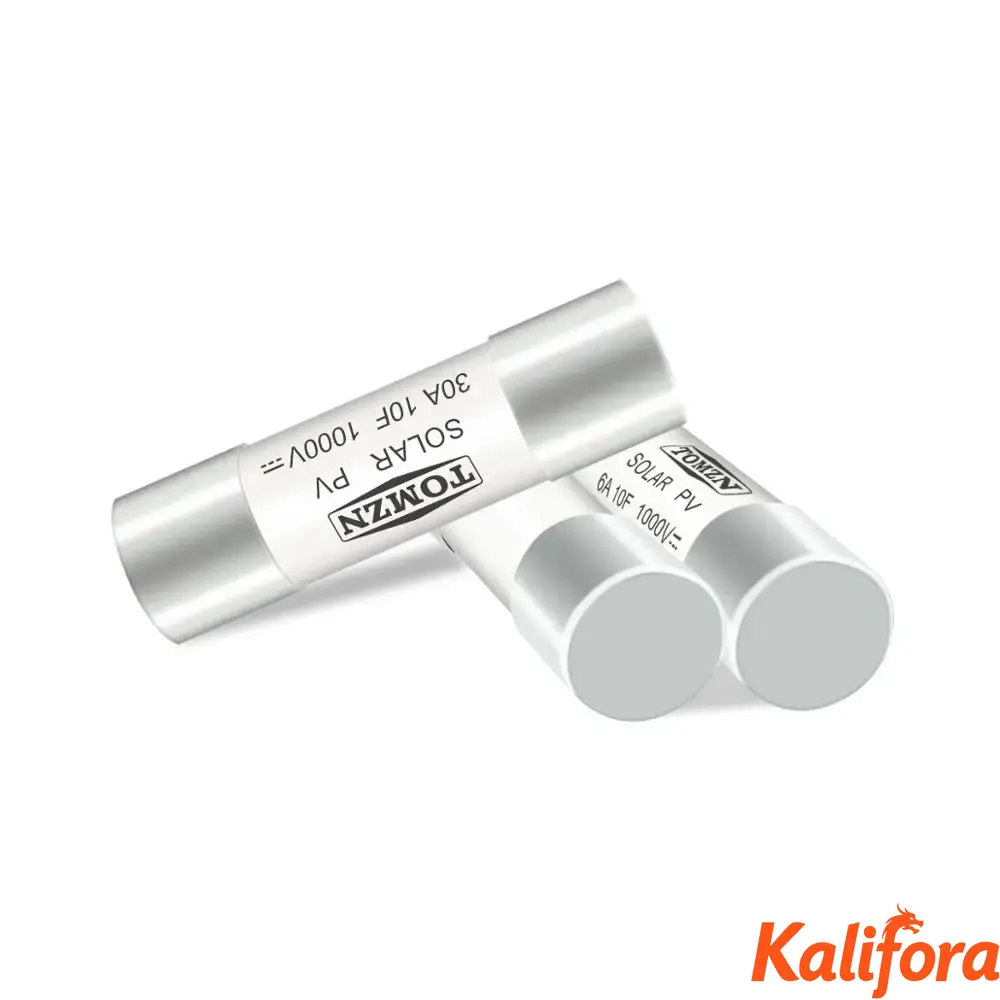

TOMZN Solar DC 1000V PV Fuse 3A 6A 10A 15A 16A 20A 25A 30A 32A High Voltage for Solar System Protection
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Variant |
|---|---|---|---|
$864
|
In stock
|
DH-3718-69ddc440007751a2838c5de3
|
Variant:
|
$884
|
In stock
|
DH-3718-68eee78f0f86db21df6c9e75
|
Variant:
|
$900
|
In stock
|
DH-3718-b54afce2a068c2f42921928f
|
Variant:
|
$728
|
In stock
|
DH-3718-9ab8ceda6b7b87129ebfb0ff
|
Variant:
|
$832
|
In stock
|
DH-3718-d1d432390ff9ef1dab1f95d5
|
Variant:
|
$752
|
In stock
|
DH-3718-379c86a8a95c9747927672ba
|
Variant:
|
$832
|
In stock
|
DH-3718-c8db0a2ff8b414927017f4f7
|
Variant:
|
|
$976
|
In stock
|
DH-3718-16929abd4b5ca4ff066508b9
|
Variant:
|
$828
|
In stock
|
DH-3718-026d73211d038947a83ec10b
|
Variant:
|
City: EN, Sheridan

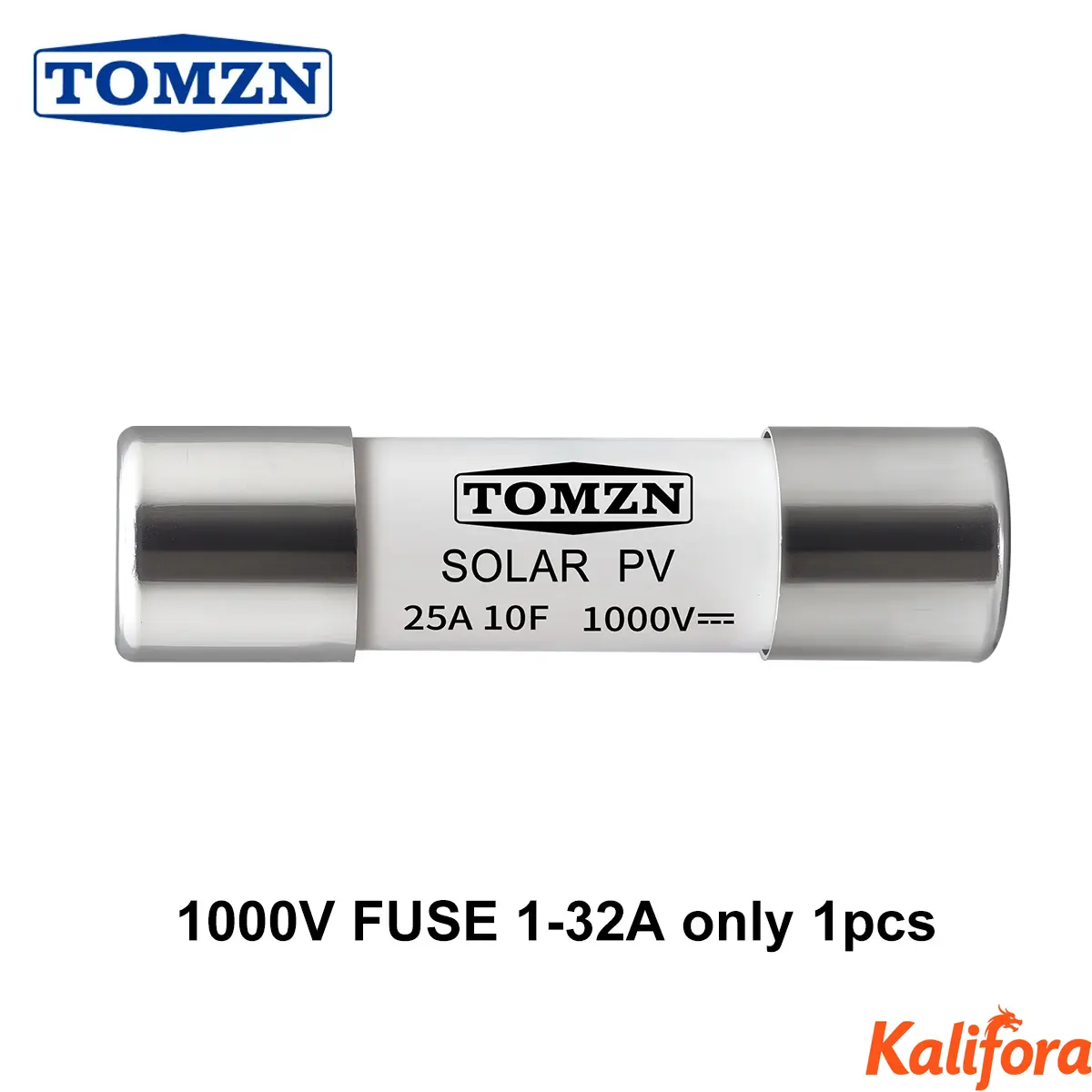

Please noted ONLY 1 PCS

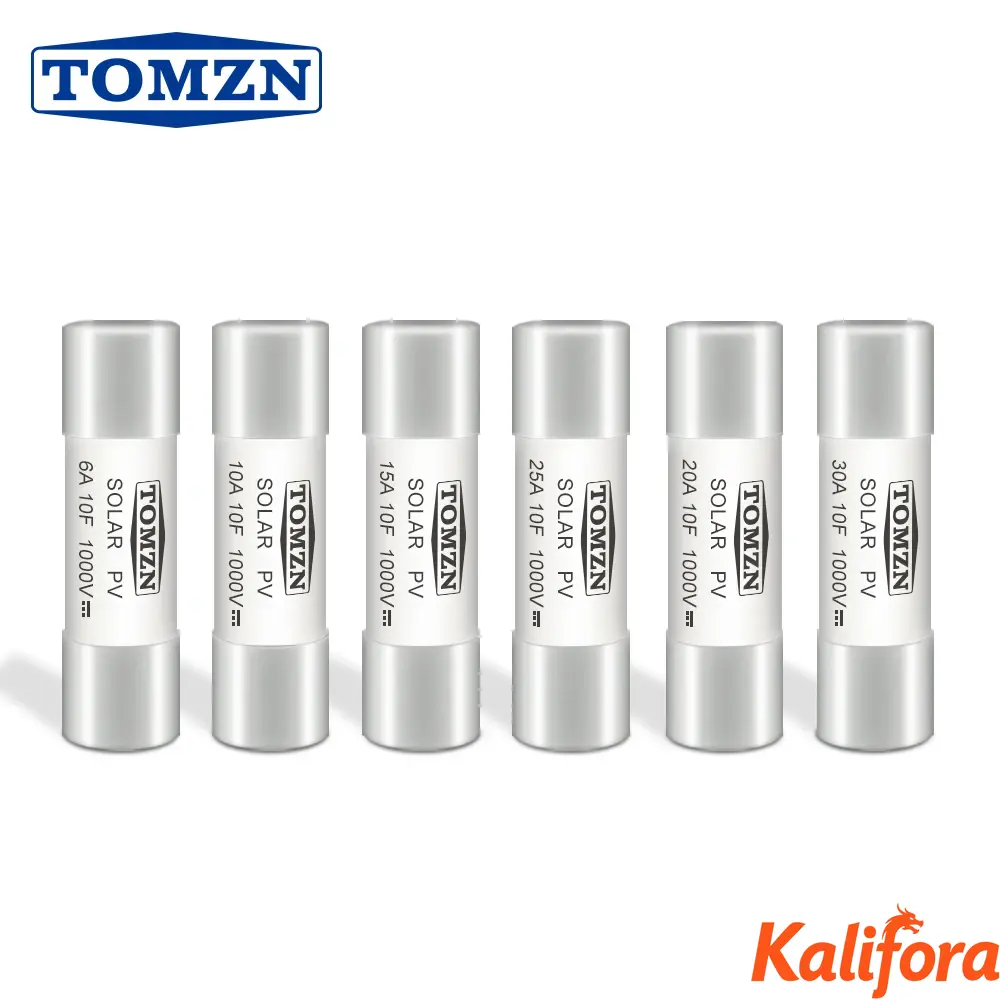

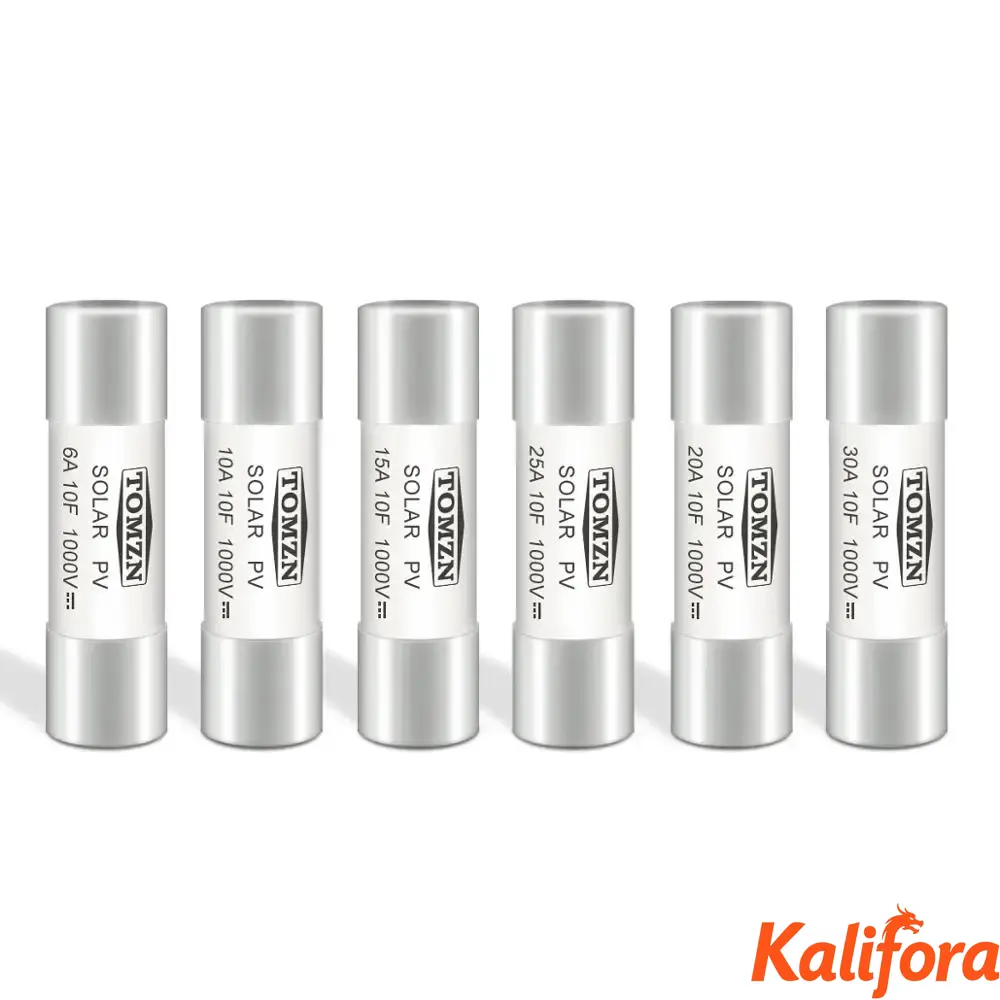

3A,6A, 10A, 15A, 16A,20A, 25A, 30A,32A only fuse. If you want fuse holder, you have to buy the fuse holder.
PV String Fuses for solar panels - 1000VDC

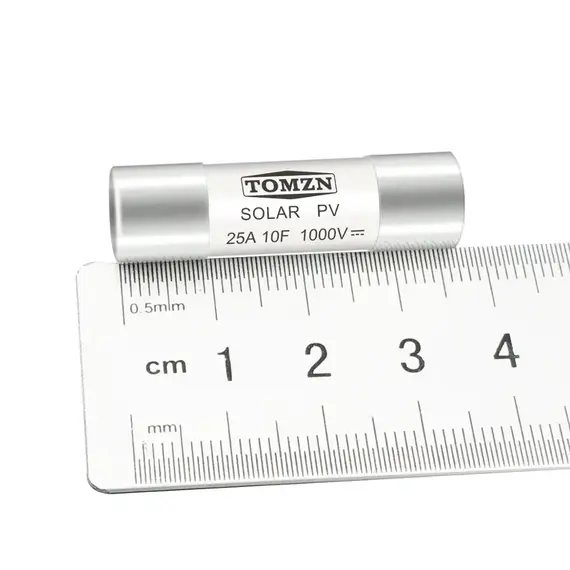

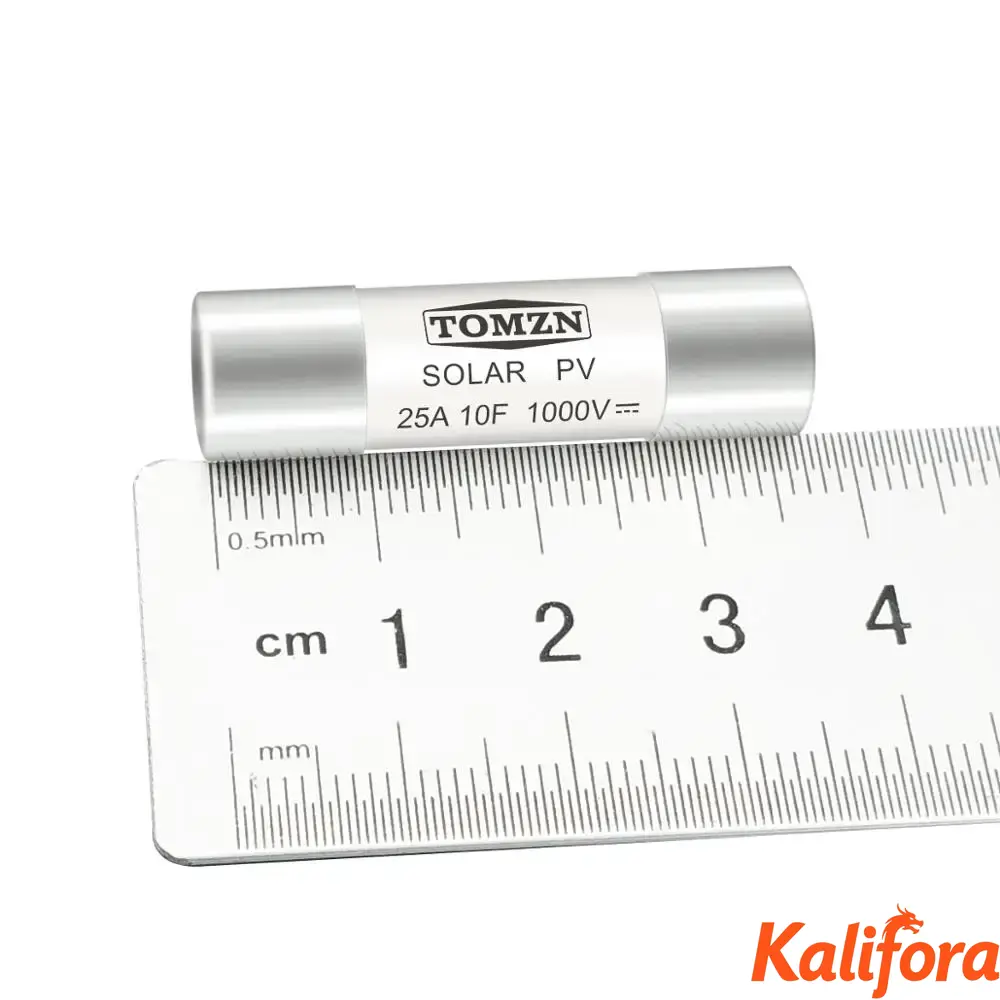

A range of fuses in a 10x38mm package specifically designer for protection and isolation of photovoltaic strings.
The DC fuses are capable of interrupting low overcurrents associated with faulted PV (reverse current, multi-array fault) string arrays.
Applications
Solar Panels, Solar Photovoltaic, DC Strings. ADVICE: Always use fuses on positive and negative terminal on any photovoltaic string rated up to 1000VDC
Electrical Characteristics
Rated voltage 1000VDC
Amps 3A,6A,10A,15A,16A,20A,25A,30A,32A
Rated braking capacity 33kA dc
Minimum interrupting rating 1.3x In
Time constant under 1ms
Standard
IEC 60269-6, EN 60947-3, DC-20B
Product specifications
| Brand Name | TOMZN |
|---|---|
| Does it include wireless functionality? | No |
| Does it include a Battery? | No |
| EU LVD Voltage | High voltage: Above 50Vac or 75Vdc |
| Type | Mini |
| Country of origin | China |
| Model Number | TOPV-32 |
| Is Smart Device | no |
| Certification | CE |
| Rated voltage | DC 1000V |
| Use for | 10x38mm fuse |
| Wire range | 0.8-6.0m㎡ |
