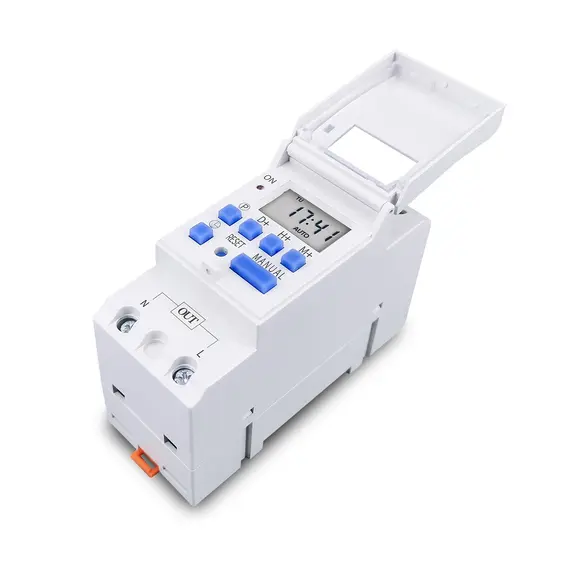

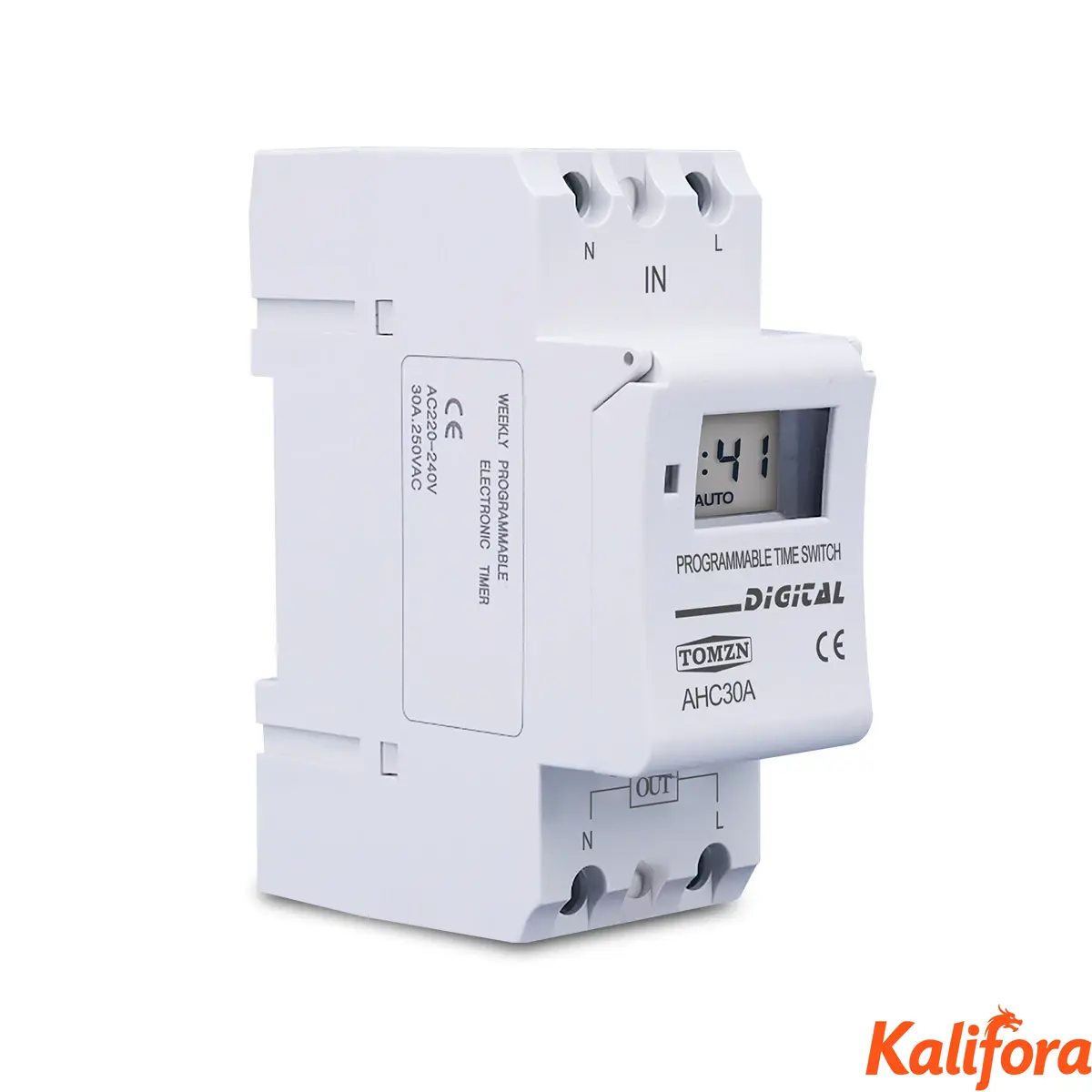

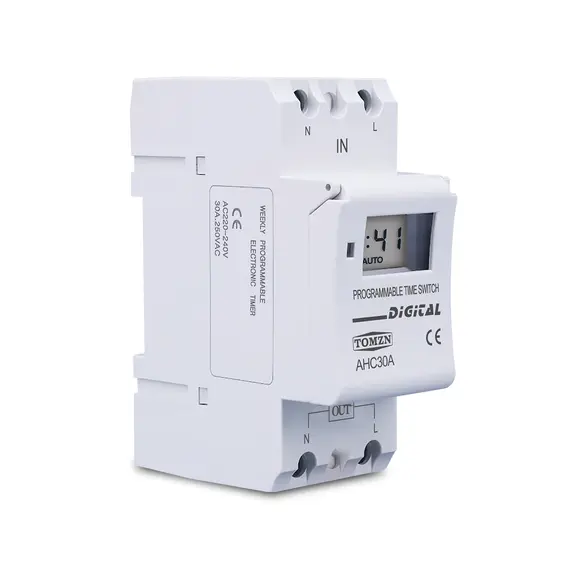

TOMZN New Type Din Rail 2 Wire Weekly 7 Days Programmable Digital TIME SWITCH Relay Timer Control AC 220V 230V 12V 24V 48V 16A
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Variant |
|---|---|---|---|
|
$2936
|
In stock
|
DH-272-45de1b5dfdac834b518e9c41
|
Variant:
|
$2944
|
In stock
|
DH-272-48503b1b73066e4905aa2532
|
Variant:
|
$2980
|
In stock
|
DH-272-2c5e48d3813833b9166b0566
|
Variant:
|
$3064
|
In stock
|
DH-272-99749599f1e2c5c6af0690a4
|
Variant:
|
City: EN, Sheridan
Product attributes
AC DC means the products can work with AC and DC current
AC means the products only work with AC current.
Panel mounted
Advanced pre-setting one week before

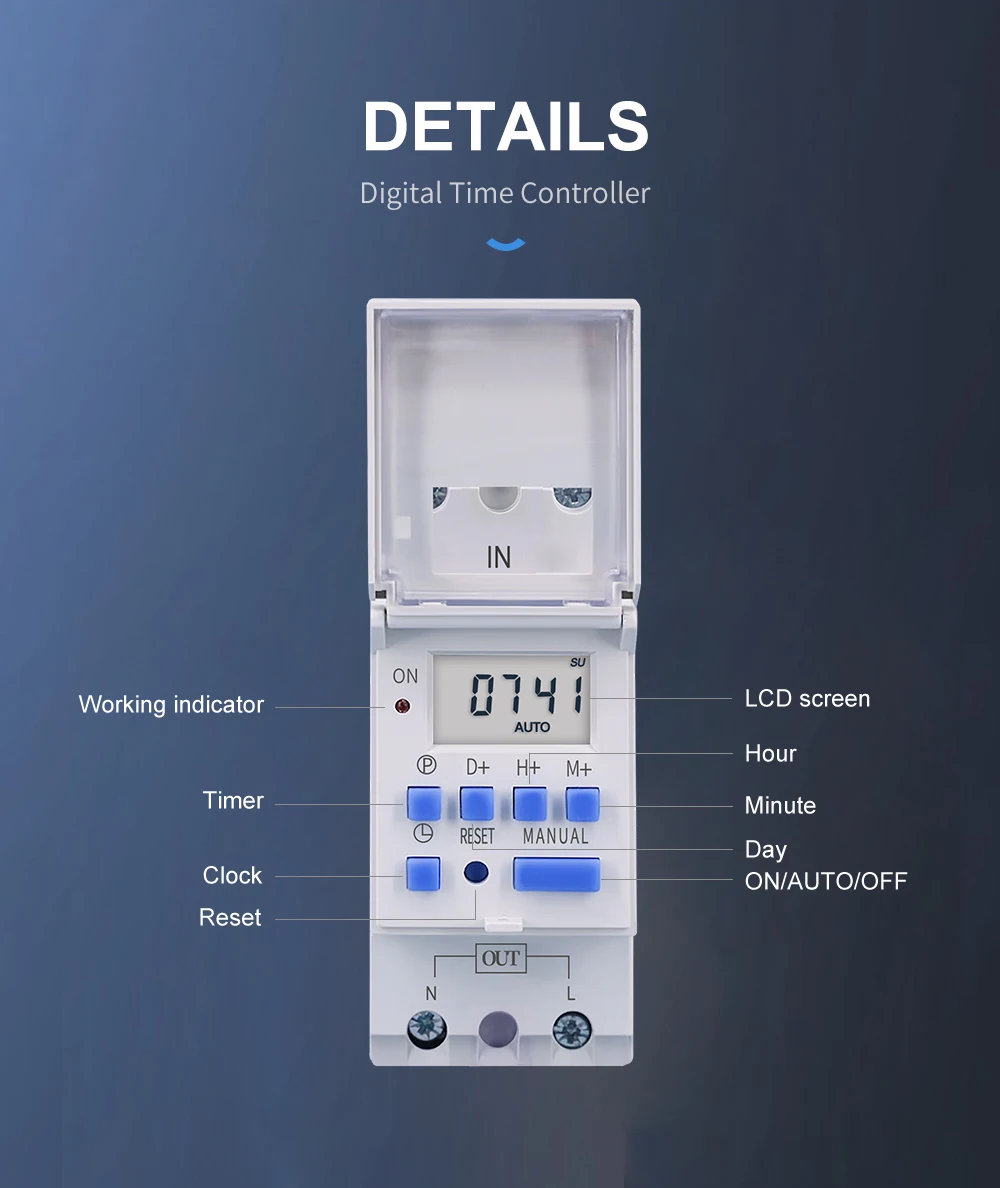

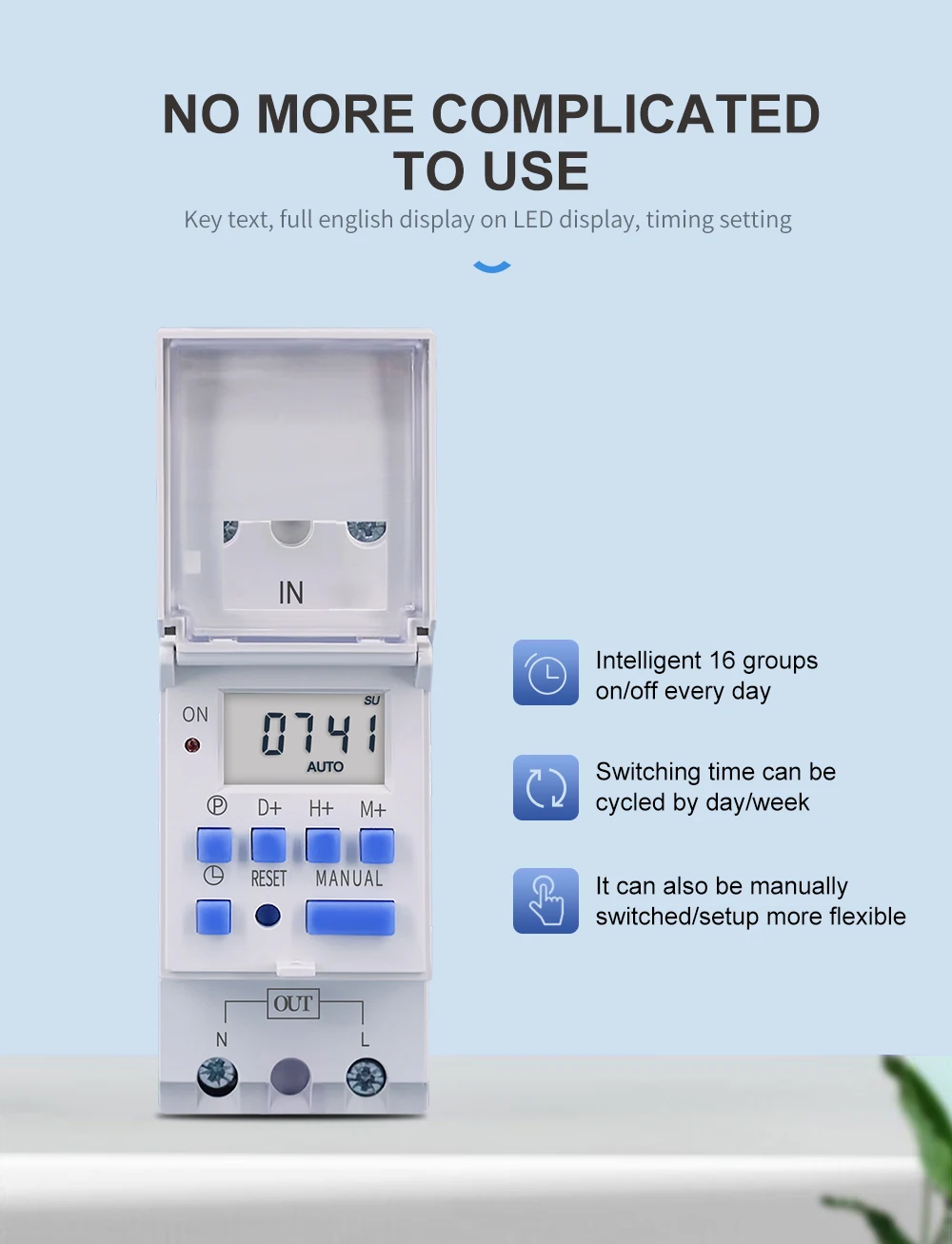

Digital electronic timer switch with daily and weekly programs

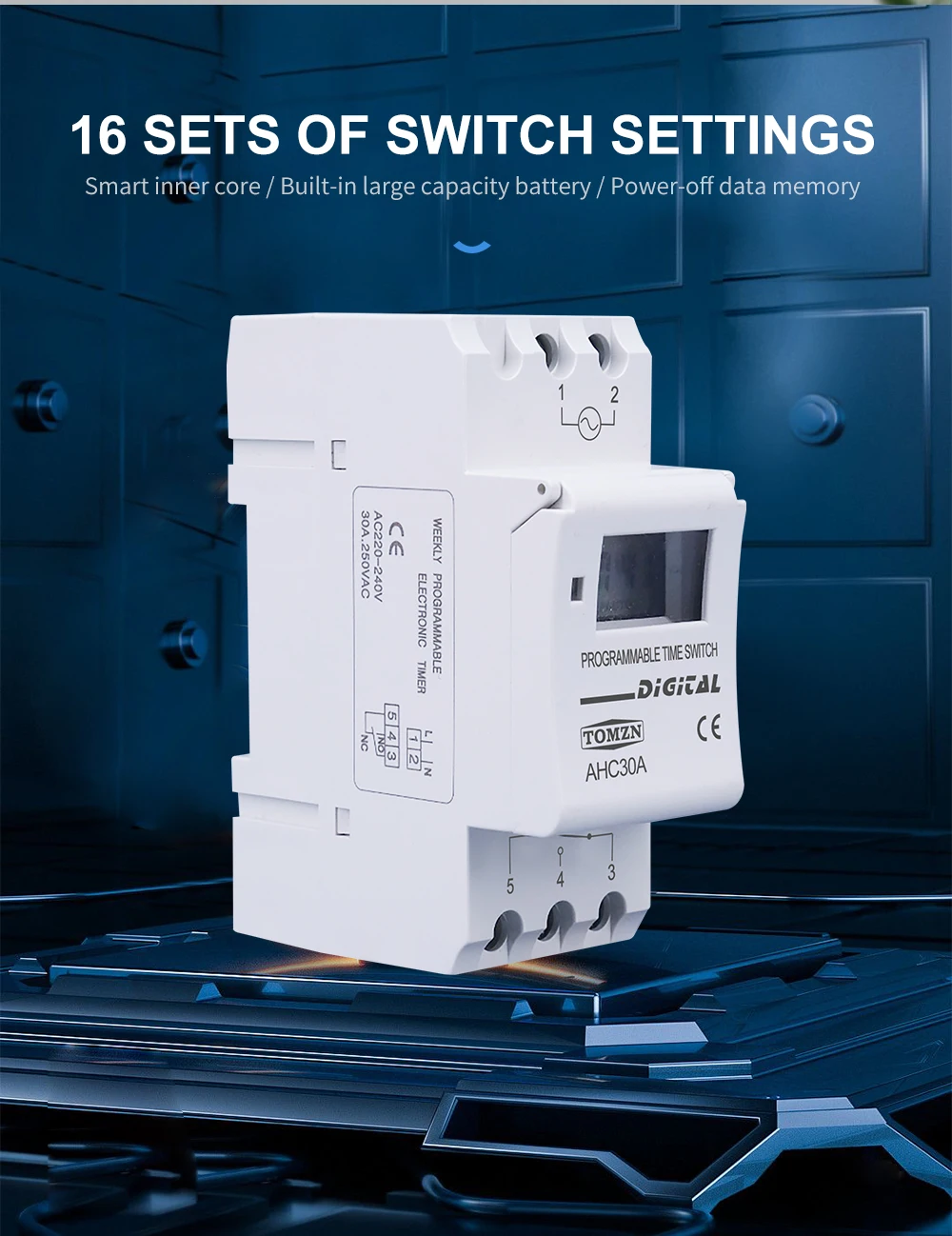

Repeat programs with 16 on/off setting and manual override

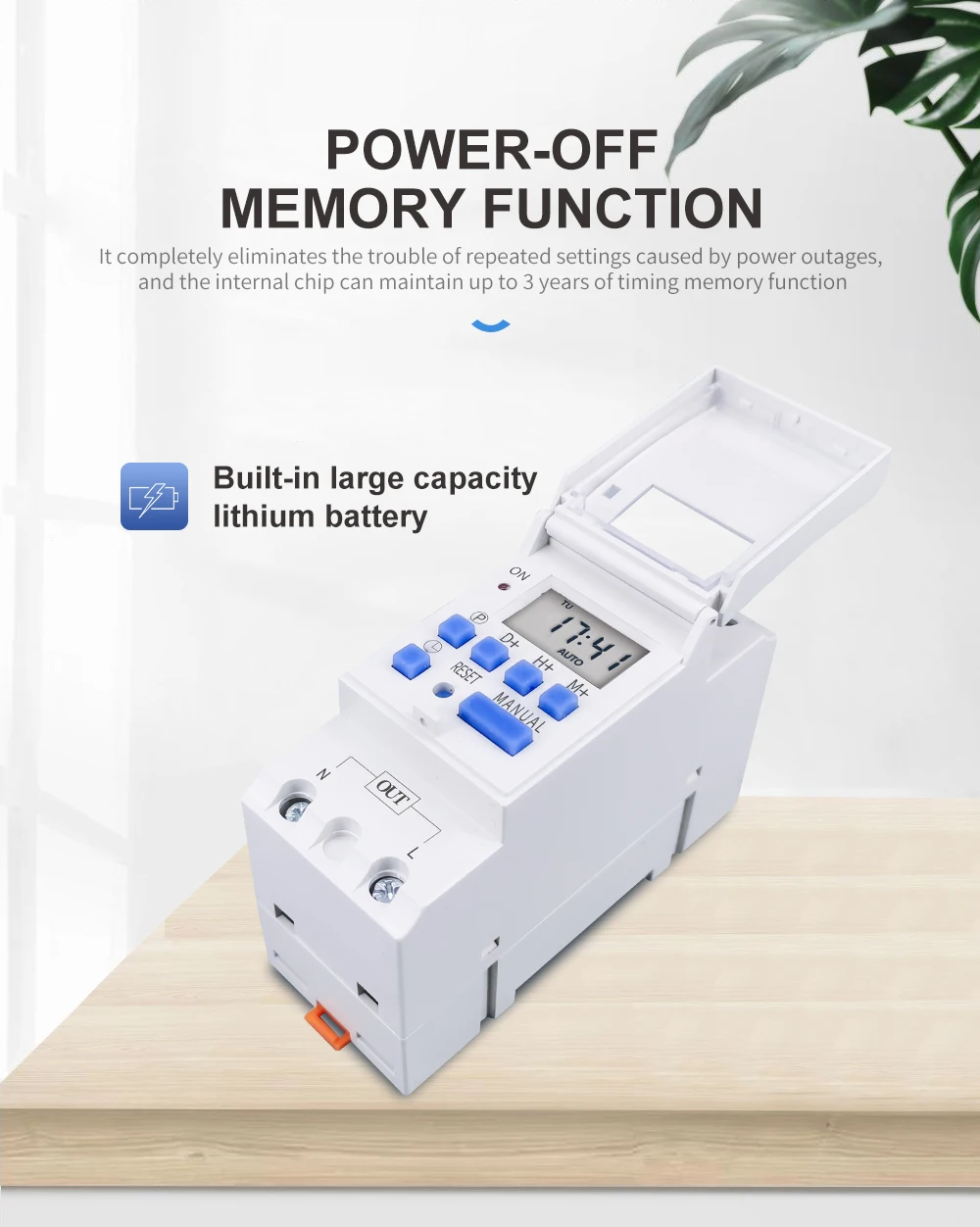

NiH battery power reserve when electric supply cut off

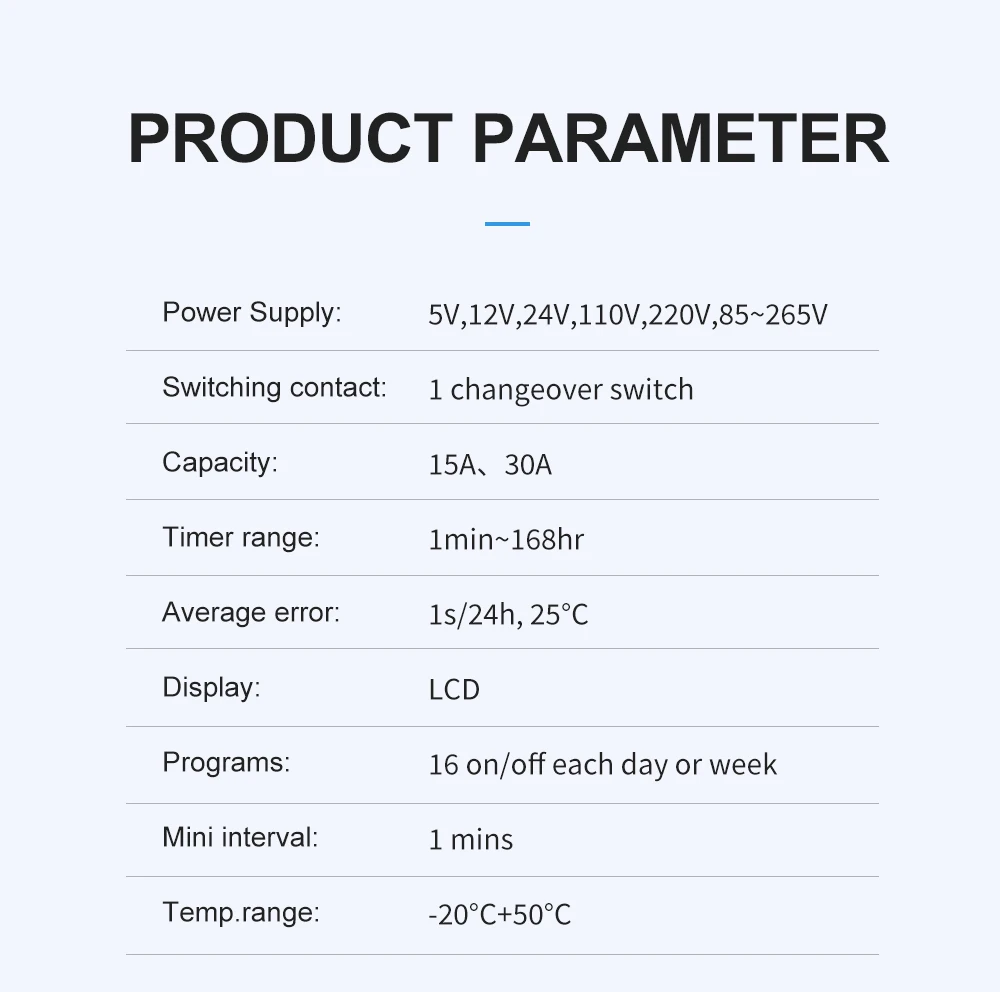

Technical Data:

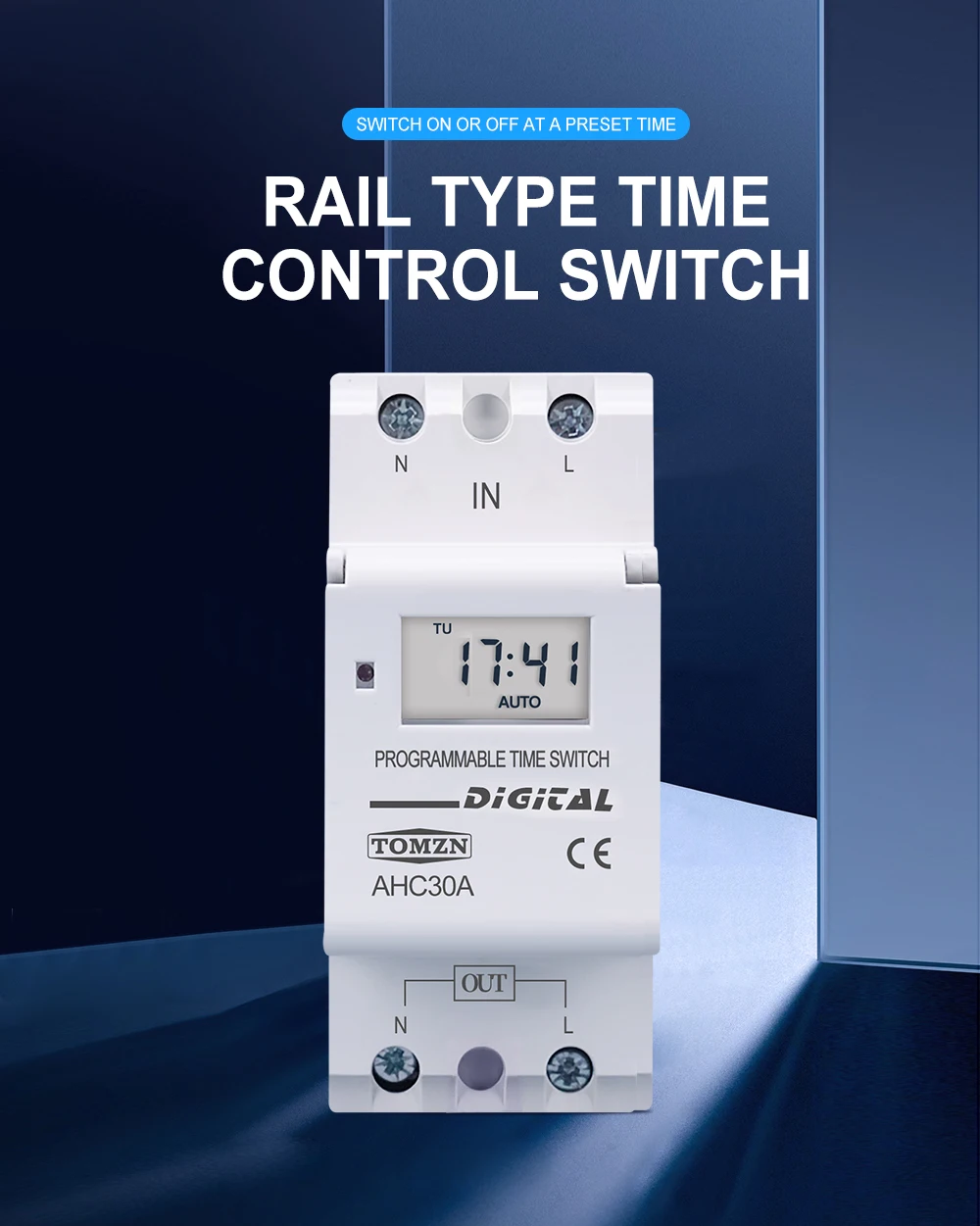

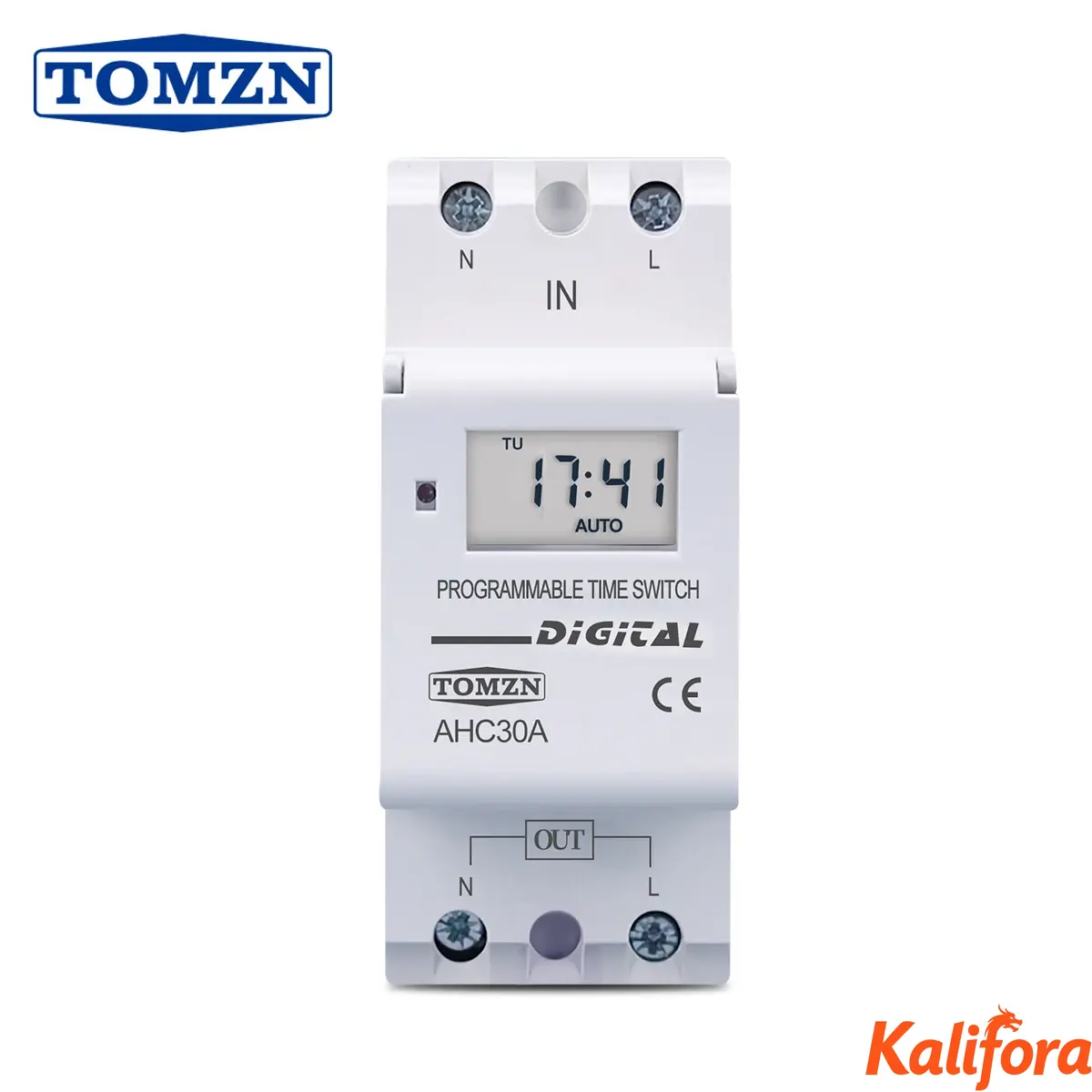

Model | AHC15A, AHC30A |
Temp.range: -20°C+50°C | Power Supply: accorind your order |
Power consumption 4.5 VA (MAX) | Display: LCD |
Switching contact: 1 changeover switch | Programs:16 on/off each day or week |
Hysteresis 2 sec/day (25°C) | Mini interval: 1min |
Capacity: 16(8) 250V AC | Black-out: 60 days |
Timer range: 1min~168hr | Recharge battery: 1.2V 40Ma |

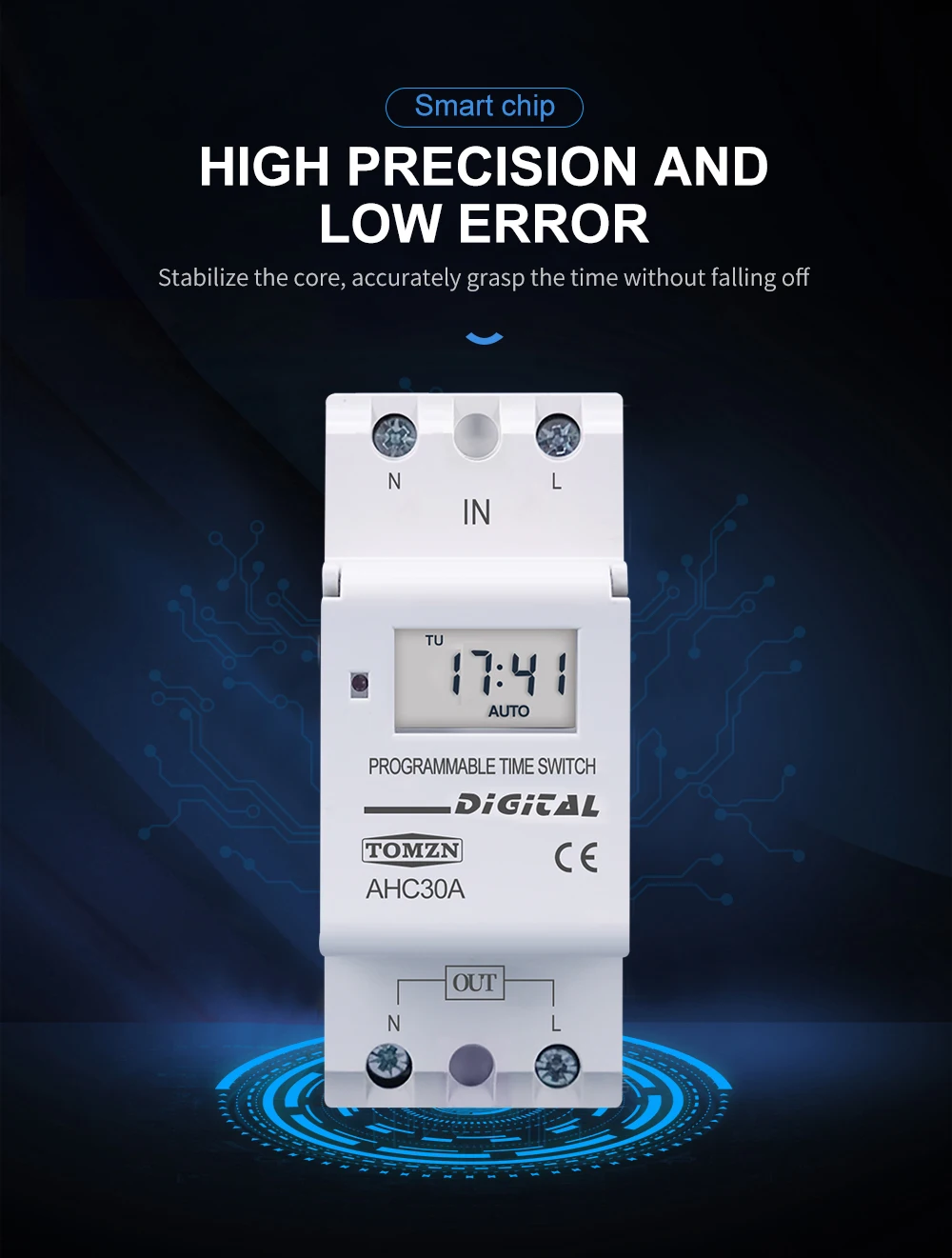

Average error: 1s/24h, 25°C | Weight: 0.15kg |
Package Content:
1 x Digital Timer
1 x English Manual
Product specifications
| Brand Name | TOMZN |
|---|---|
| Country of origin | China |
| Theory | Time Relay |
| Voltage | 12V,24V48V,110V,220V |
| Model Number | AHC15A, AHC30A |
| Contact Load | High Power |
| Use | General Purpose |
| Protect Feature | Sealed |
| EU LVD Voltage | High voltage: Above 50Vac or 75Vdc |
