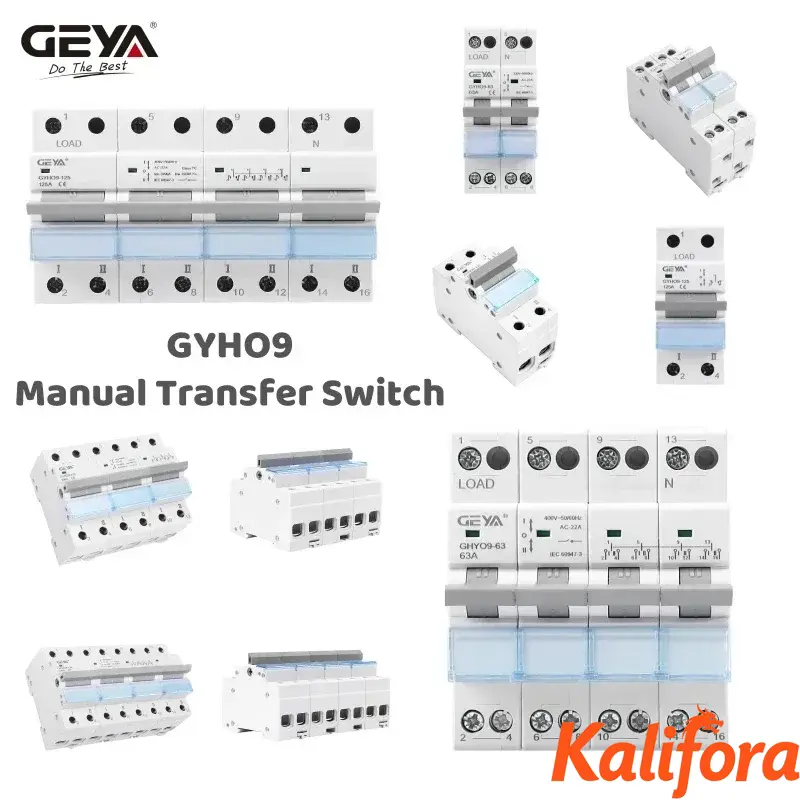

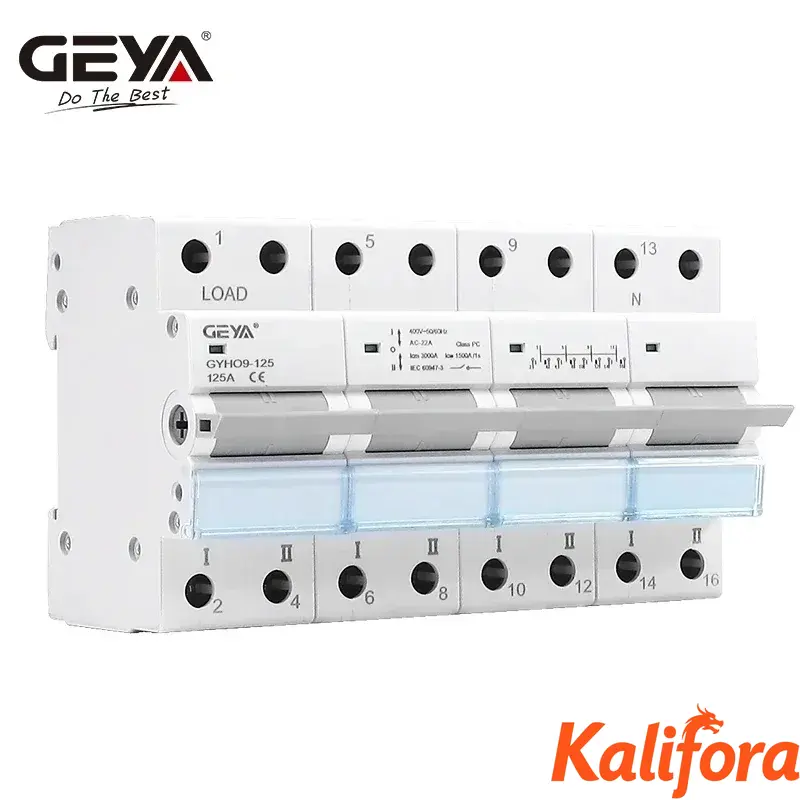

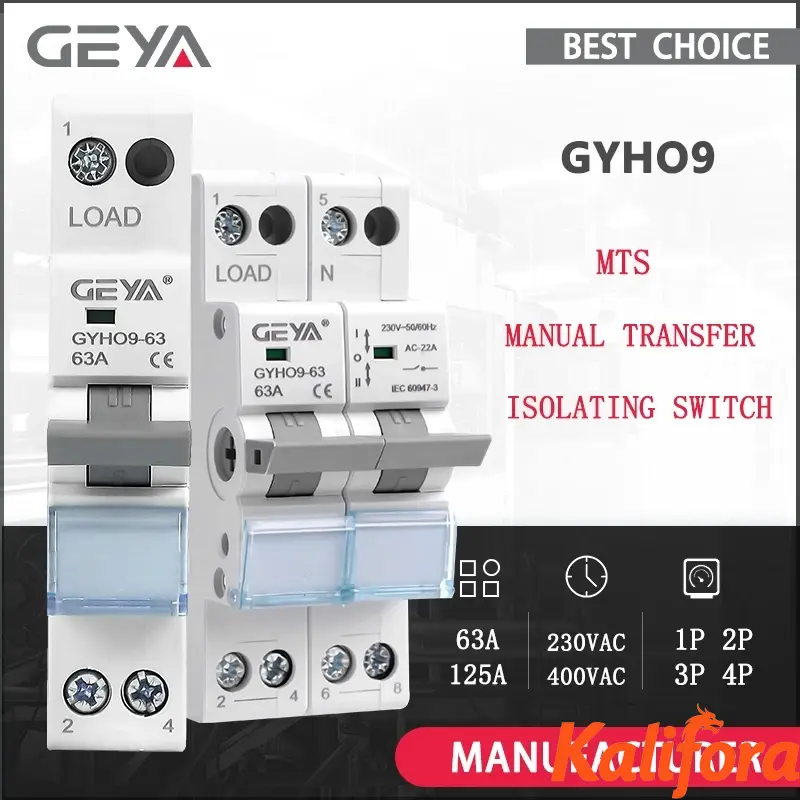

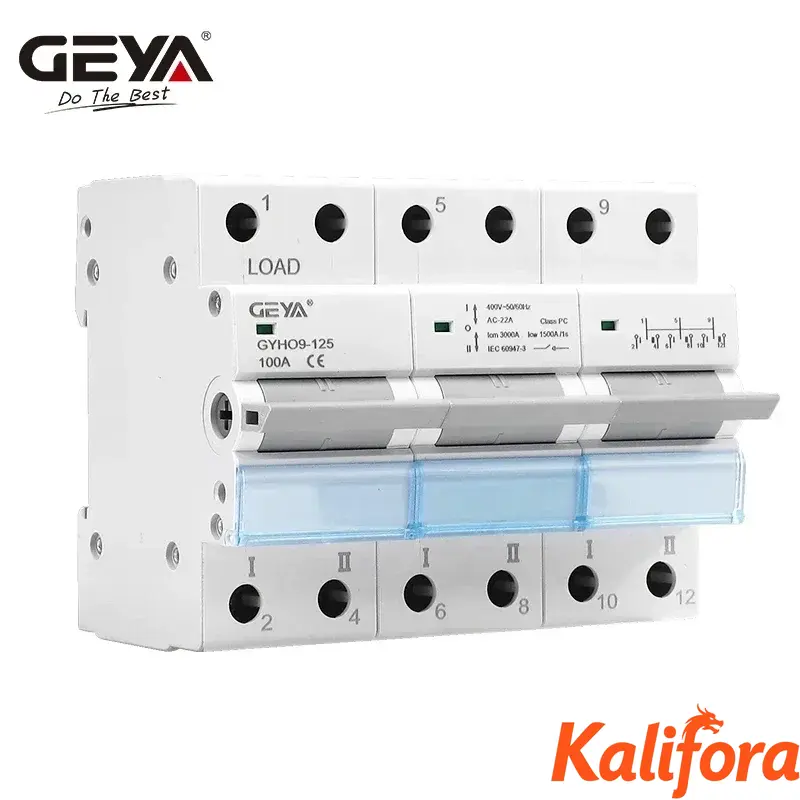

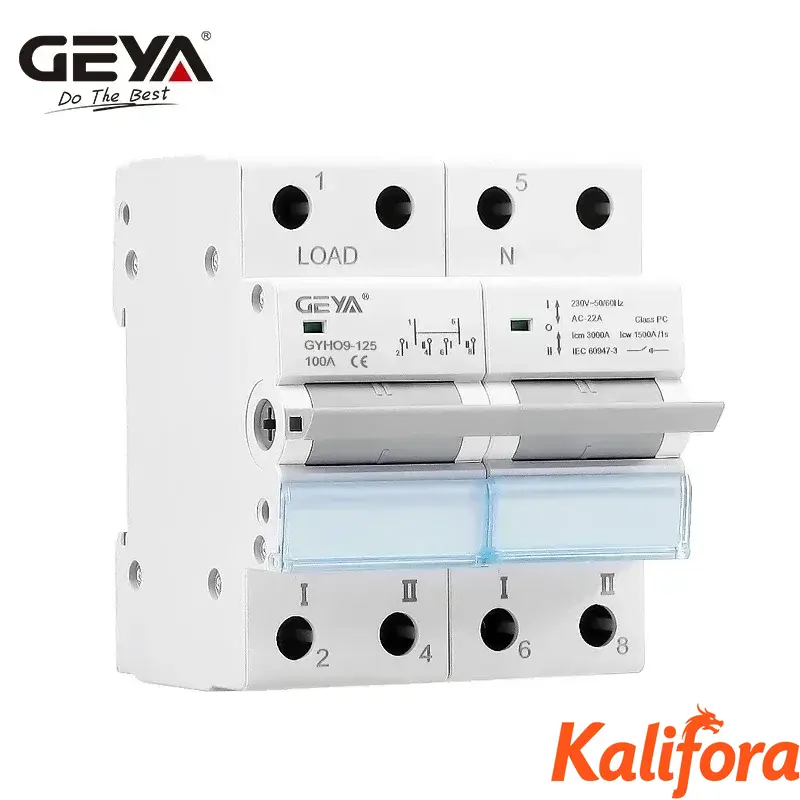

GEYA GYHO9 Manual Transfer Switch NEW Design with Indicator 1P-4P 63A 125A MTS Dual Power Manual Conversion Isolating Switch
General
The purpose of the GYHO9 Manual Transfer Switch(MTS) is to manually transfer power to an alternate source. The most common application is transferring power from a backup power source to the load during utility failures.
When installed properly, the Manual Transfer Switch provides an easy means for transferring loads to an alternate source in the event of another power source failure.
Special Design

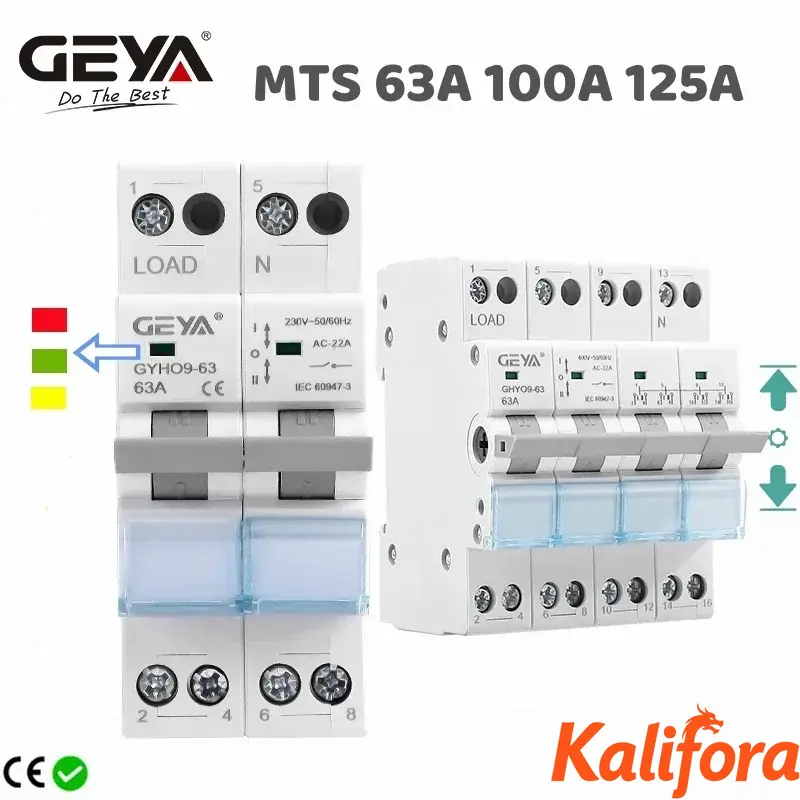

1. Clearly marked power postions with lndicator lights to easily understand which power source is being utilized.
2. Label window for easy and clear labeling of power sources.
Knob Position: 1 - O - 2 (1=Main Power ON, O=OFF, 2=Standby Power ON)
lndicator Window Color: 1=Red, O=Green, 2=Yellow
Product specifications
| Brand Name | GEYA |
|---|---|
| Type | Mini |
| Country of origin | China |
| Rated Voltage | 220/380V |
| Type | Circuit breaker |
| Model Number | GYHO9 MTS |
| EU LVD Voltage | Low voltage: Below 50Vac or 75Vdc |
| Is Smart Device | no |
| Certification | CE |
| Product Name | Manual Transfer Isolating Switch |
| Rated Current | 63A 125A |
| Poles | 1P 2P 3P 4P |
| Rated Voltage Ue | AC220/400V |
| Rated Frequency | 50/60Hz |
| Standard | IEC/EN60947-3 |
| Mounting | Din Rail |
| New Design | with Indiactor Red Green Yellow Color |
| Mechanical Life | 10000 Cycles |
| Cable Size 63A | Max 10mm² |
| Cable Size 100A 125A | Max 50mm² |
| Does it include a Battery? | No |
