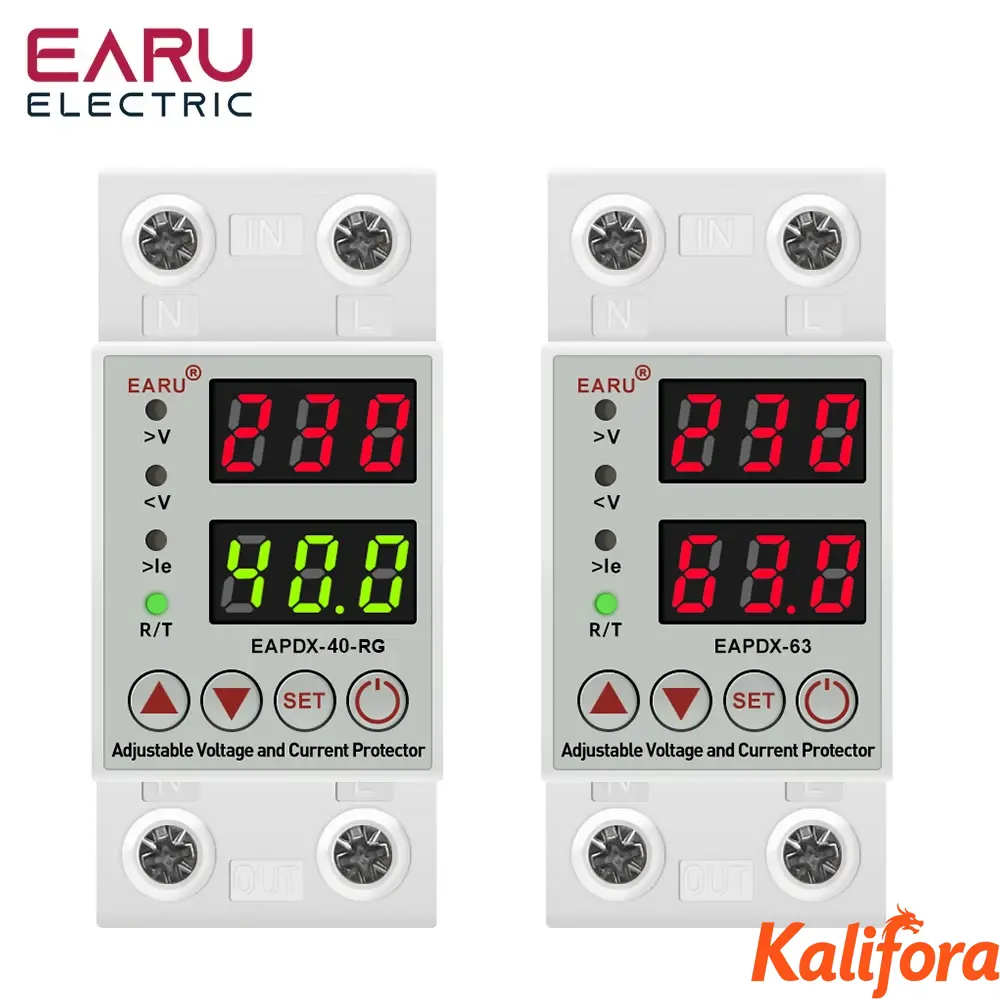

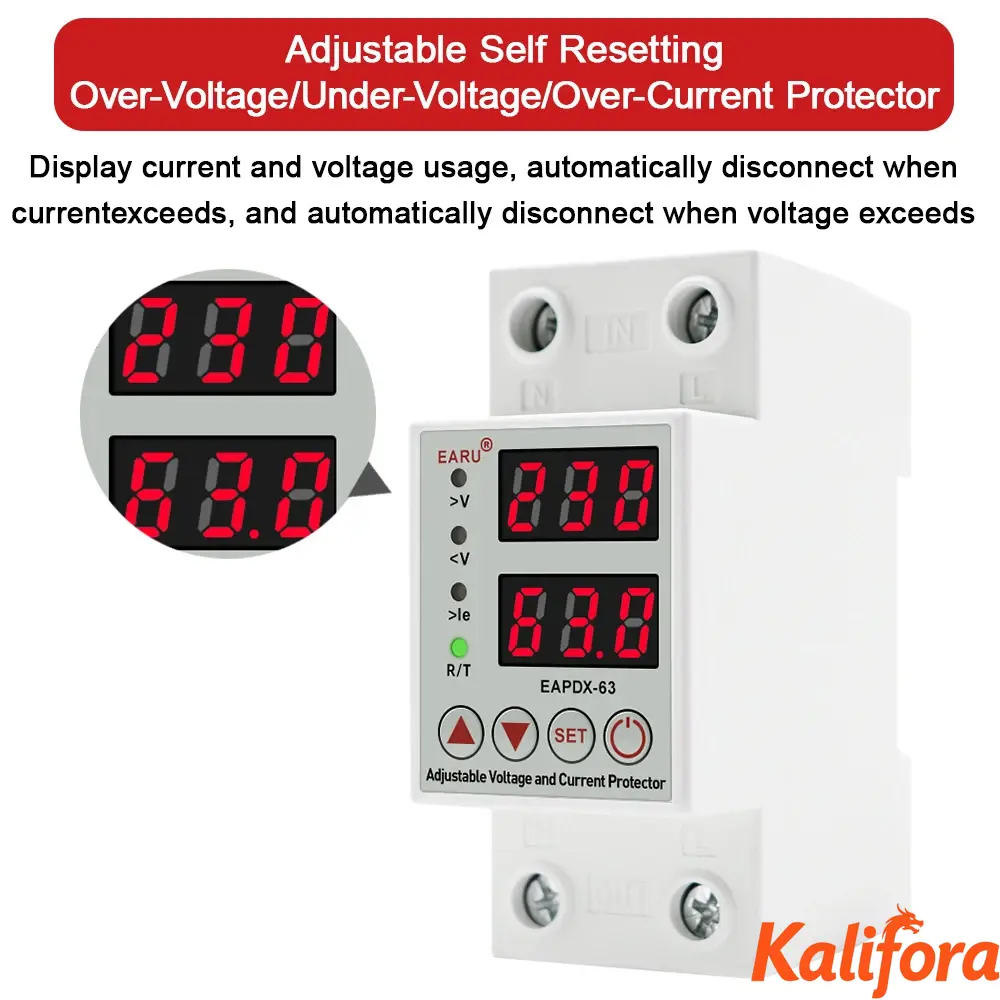

EARU Dual Display 40A 63A Adjustable Power Over Under Current Voltage Protector Relay Switch Meter Voltmeter Automatic Reclosing
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Variant |
|---|---|---|---|
$3716
|
In stock
|
DH-3849-68a70a1b70963e874ebcff83
|
Variant:
|
|
$3512
|
In stock
|
DH-3849-d46ed52564f4675d6f899b8e
|
Variant:
|
$3460
|
In stock
|
DH-3849-269e2d7998b3fccc41f13a69
|
Variant:
|
$3328
|
In stock
|
DH-3849-11561697ca9c661c6492ed16
|
Variant:
|
City: EN, Sheridan

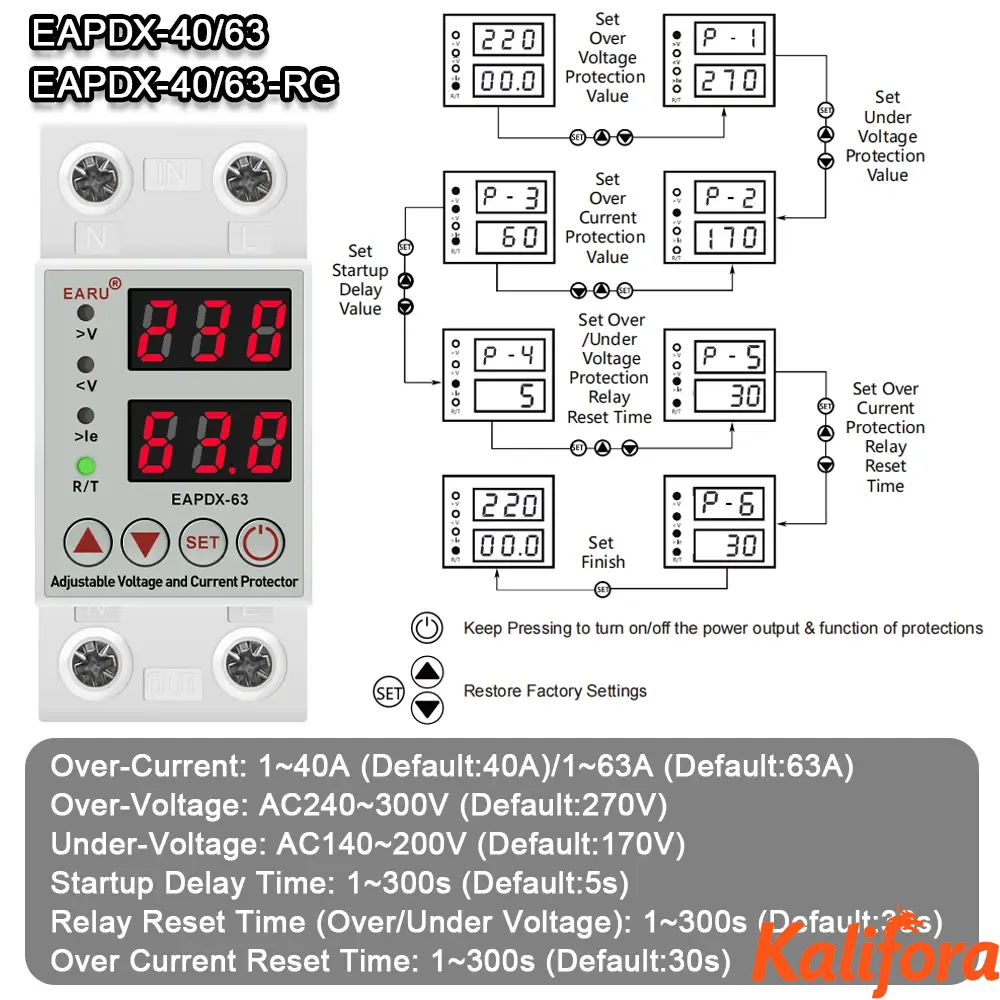

1. Over-Voltage Proteciton: 240V-300V (Adjustable) (Default: 270V)
2. Under-Voltage Protection: 140V-200V (Adjustable) (Default: 170V)
3. Over-Current Protection: 1A-40A/63A (Adjustable)
4. Startup Delay Time: 1-300s (Adjustable) (Default: 5s)
5. Relay Reset Time: 1-300s (Adjustable) (Default: 30s)
6. Over Current Reset Time: 1-300s (Adjustable) (Default: 30s)

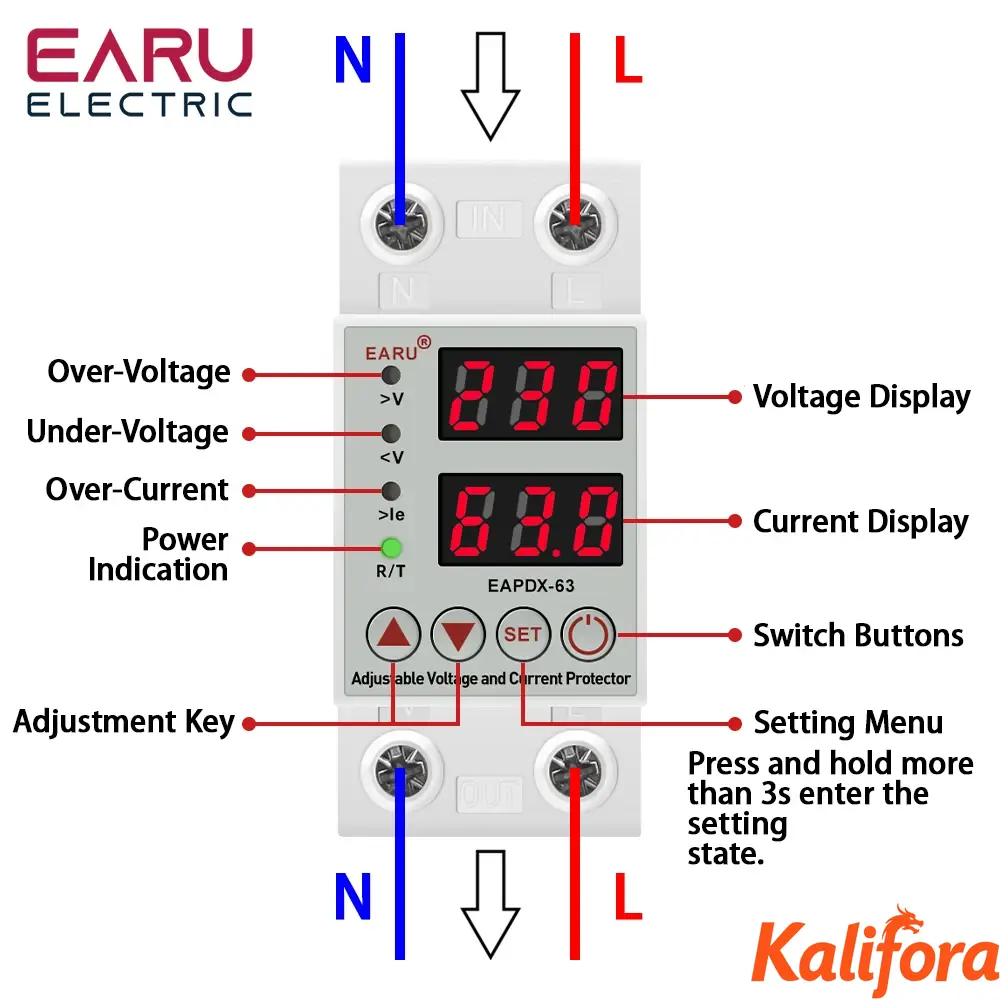

7. Voltage Meter
8. Ammeter
9. Restore Factory Settings
10. Automatic Recovery

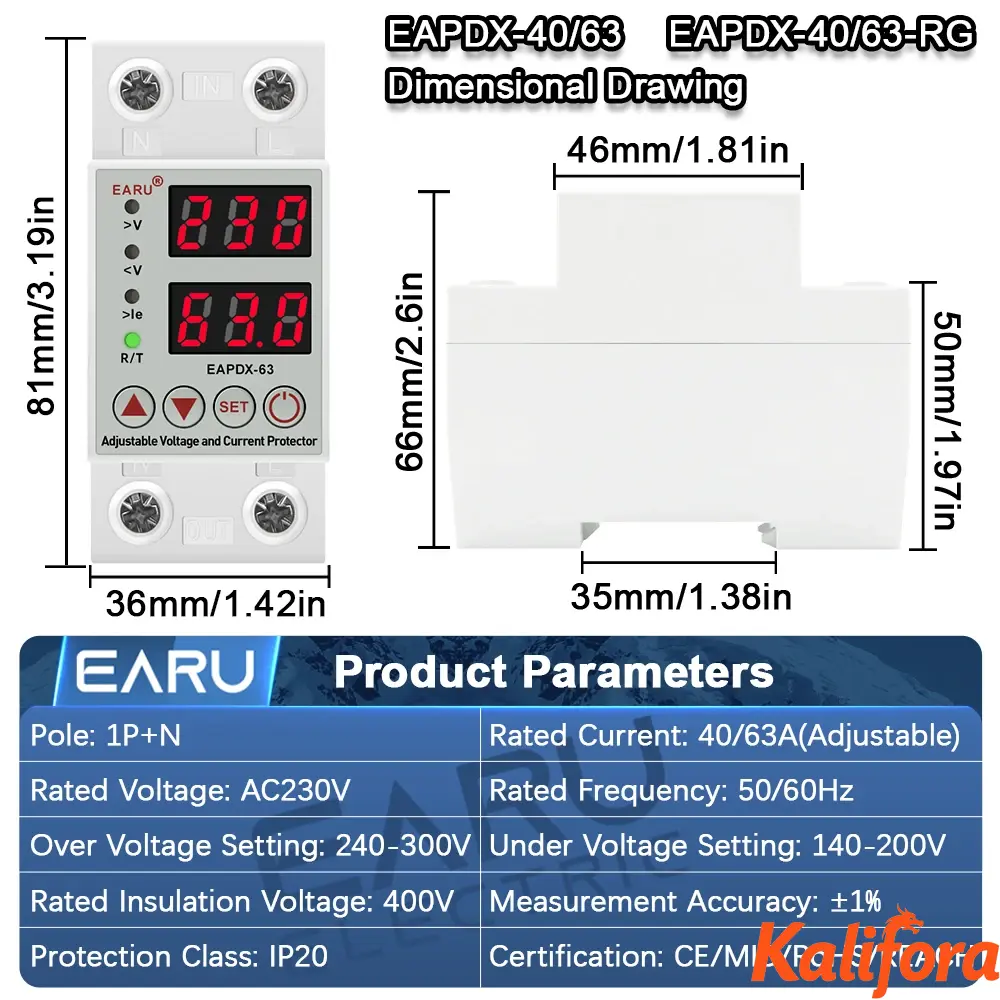

Parameters:
EAPDX-40/63A Screen Color: Red-Red
EAPDX-40/63A-RG Screen Color: Red-Green
Poles: 1P+N
Rated Current: 1-40A/63A (Adjustable)
Rated Voltage: AC230V
Rated Frequency: 50/60Hz
Operatintg Temperature: -50~55℃
Humidity: <50% at 40℃(Without Condensation)
Protection Class: IP20
Measurement Accuracy: ±1%
Product specifications
| Brand Name | EARU |
|---|---|
| Does it include wireless functionality? | No |
| Does it include a Battery? | No |
| EU LVD Voltage | High voltage: Above 50Vac or 75Vdc |
| Type | Mini |
| Country of origin | China |
| Rated Voltage | 220V |
| Type | Voltage relay |
| Model Number | EAPDX |
| Is Smart Device | no |
| Certification | CE |
| Certification | RoHS |
| Over-Voltage Proteciton | 240V-300V (Adjustable) |
| Under-Voltage Protection | 140V-200V (Adjustable) |
| Over-Current Protection | 1A-40A/63A (Adjustable) |
| Reconnect Time | 1s-300s (Adjustable) |
| Over Current Reset Time | 1s-300s (Adjustable) |
| Frequency | 50/60Hz |

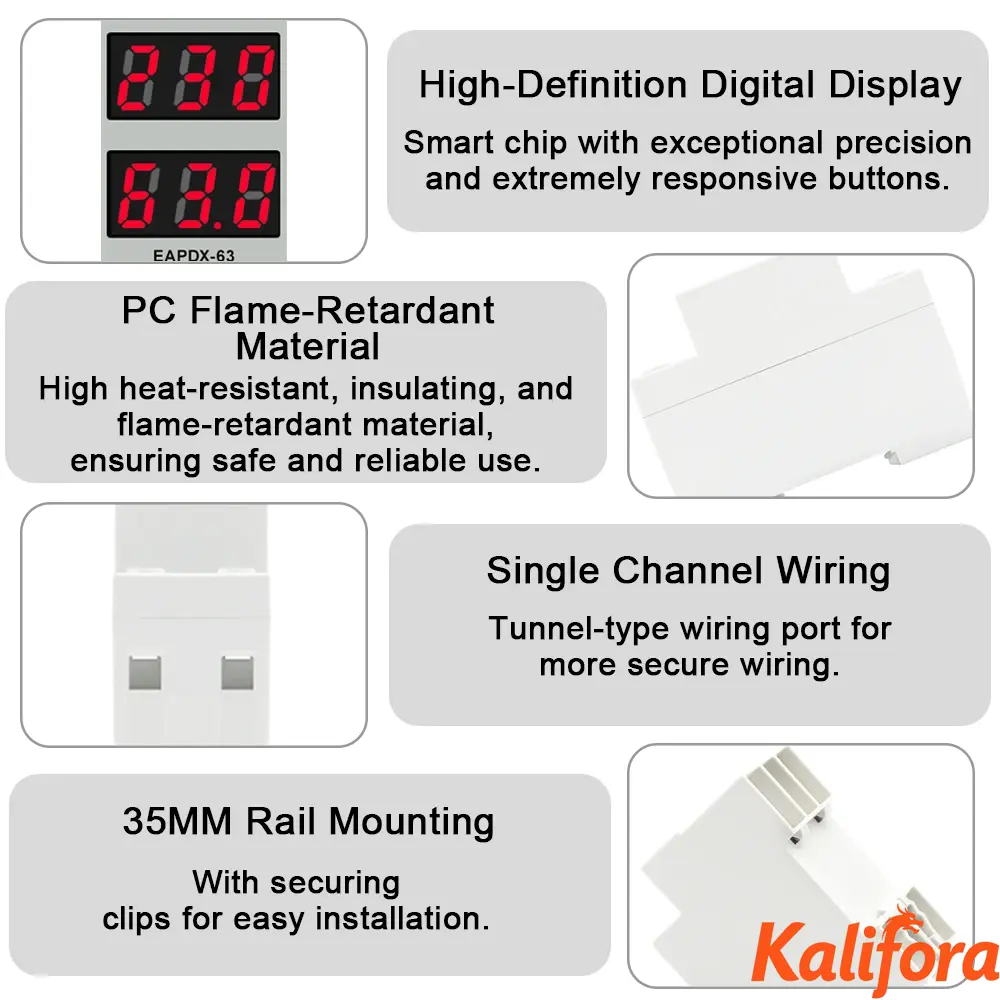

| Installation | 35MM Din Rail |
| Protection Class | IP20 |
| Working Temperature | -10℃~+85℃ |
| Product Certification | CE/RoHS/MID/REACH/SCCP |
| Model Number 1 | EAPDX-40 |
| Model Number 2 | EAPDX-63 |
| Model Number 3 | EAPDX-40-RG |
| Model Number 4 | EAPDX-63-RG |
