EARU 1P 2P DC Solar Molded Case Circuit Breaker MCCB Overload Protection Switch Protector Solar Photovoltaic PV Battery Isolator
$7592
EARU 1P 2P DC Solar Molded Case Circuit Breaker MCCB Overload Protection Switch Protector Solar Photovoltaic PV Battery Isolator
DH-4022-ff32876ce372f45f10988f61
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Variant |
|---|---|---|---|
|
$7592
|
In stock
|
DH-4022-ff32876ce372f45f10988f61
|
Variant:
|
$10128
|
In stock
|
DH-4022-1cc2c8519684ed30c6692803
|
Variant:
|
$9272
|
In stock
|
DH-4022-f620c3528ec6a0950ca0594f
|
Variant:
|
$18540
|
In stock
|
DH-4022-cc6f24cdc6b3bc97037c6ee6
|
Variant:
|
$18556
|
In stock
|
DH-4022-7324c20a0683d6e40c98490e
|
Variant:
|
$18312
|
In stock
|
DH-4022-dd0796e7b7cc04ee4c4cbf21
|
Variant:
|
$14008
|
In stock
|
DH-4022-c539cdc912ba40d7aeb75e22
|
Variant:
|
$13960
|
In stock
|
DH-4022-1b179f840c5d566b0208f68d
|
Variant:
|
$17752
|
In stock
|
DH-4022-38248b71fc4abab78669d171
|
Variant:
|
$7656
|
In stock
|
DH-4022-3aa793b8c381ef2c25adda86
|
Variant:
|
Kalifora is a global online marketplace that makes it easier to discover and shop for...
City: EN, Sheridan
Description

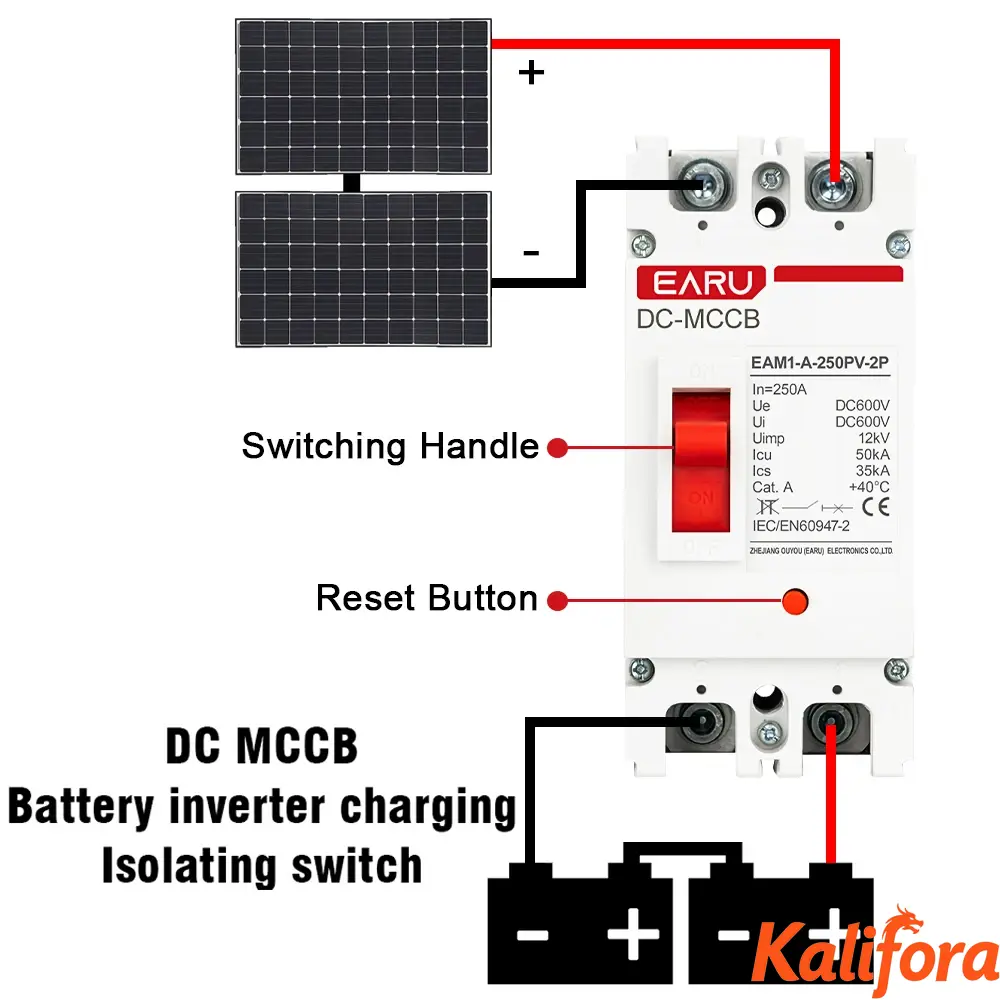

DC Circuit Breaker is mainly used for DC elctricity power line, such as pv solar, wind power, hydropower, car and any DC power supply device
The products are widely used in photovoltaic power generation systems, wind power generation systems, roof building power generation systems, rail transit power distribution systems and infrastructure construction and other low-voltage dc generation transmission and distribution application occasions
Technical Data
Pole: 1P/2P
Rated Short Circuit Capacity: 50KA
Rated Current(A): 100A/125A/160A200A/250A
Rated Voltage: 1P DC300V/2P DC600V
Frequency: 50/60Hz
Protect: Over-Load Protection/Short-Circuit Protect
Product specifications
| Brand Name | EARU |
|---|---|
| Does it include wireless functionality? | No |
| Does it include a Battery? | No |
| EU LVD Voltage | High voltage: Above 50Vac or 75Vdc |
| Type | Moulded Case |
| Country of origin | China |
| Type | Circuit breaker |
| Model Number | EAM1-A-PV |
| Is Smart Device | no |
| Certification | CE |
| Certification | RoHS |
| 1P Rated Voltage | DC300V |
| 2P Rated Voltage | DC600V |
| EAM1-A-PV Rated Current | 100A/125A/160A/200A/250A |
| Breaking Capacity(Icu) | 50kA |
| Tripping Time | ≤0.1S |
| Function 1 | Over Load Protection |
| Function 2 | Short Circuit Protection |
| Product Certification | CE/RoHS/REACH/SCCP |
| Standard | EN IEC 60947-2 |
| Poles | 1P/2P |
