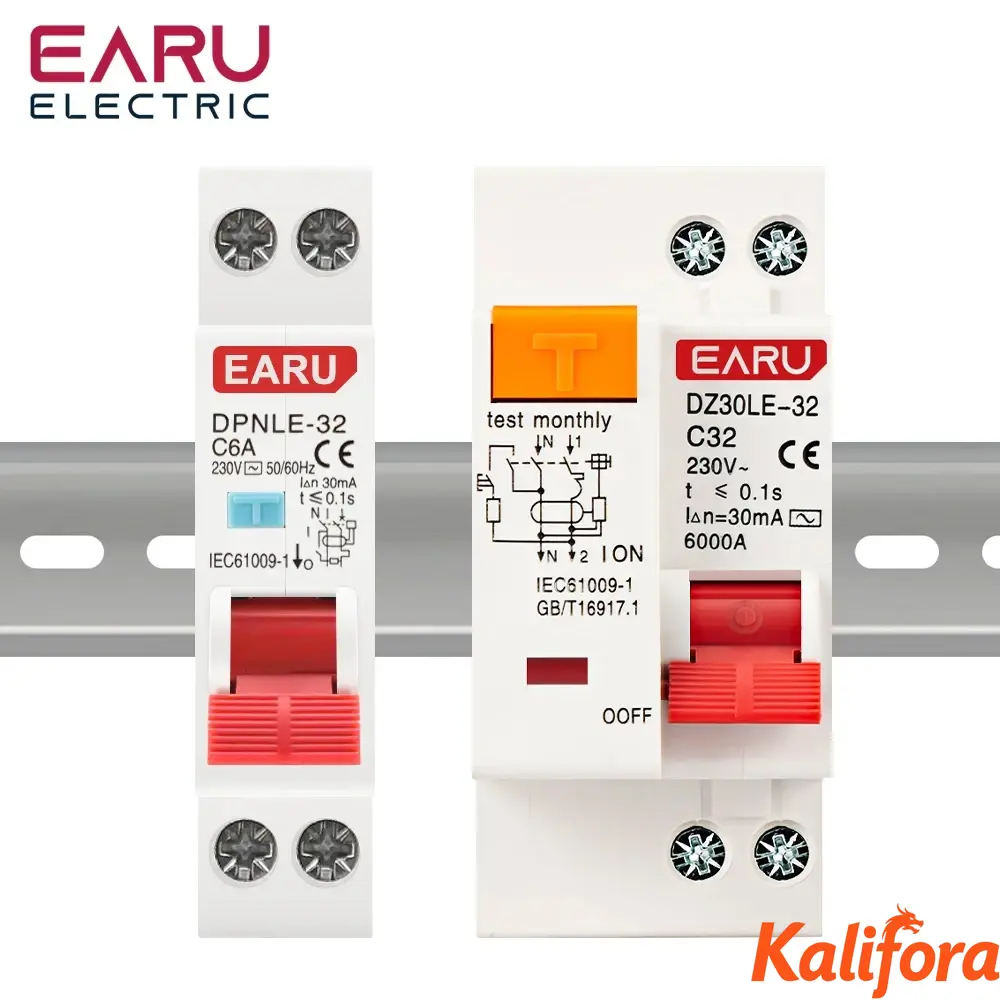

EARU 18MM 36MM RCBO 1P+N 230V 6/10/16/25/32/40/50/63A Residual Current Circuit Breaker Over and Short Current Leakage Protection

Write a review

$29⁹⁶

Add to cart

EARU 18MM 36MM RCBO 1P+N 230V 6/10/16/25/32/40/50/63A Residual Current Circuit Breaker Over and Short Current Leakage Protection

CODE:

DH-3880-28011243d91c875fff32f63a

EARU 18MM 36MM RCBO 1P+N 230V 6/10/16/25/32/40/50/63A Residual Current Circuit Breaker Over and Short Current Leakage Protection

Write a review

$29⁹⁶

In stock

Variant:

+ −

Add to wish list Compare

Shipping time and rates

View all variations as list

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Variant
$29⁹⁶	In stock + −	DH-3880-28011243d91c875fff32f63a	Variant: Rated Current: 40A / Poles Number: 2 [12000051028402799]
$27⁸⁸	In stock + −	DH-3880-cbe1332c70474a32f7c4a67c	Variant: Rated Current: 6A / Poles Number: 1 [12000049041014365]
$28⁴⁴	In stock + −	DH-3880-a8f238a7c8fd5e4304198c89	Variant: Rated Current: 10A / Poles Number: 1 [12000049041014367]
$25²⁰	In stock + −	DH-3880-f3103eef2985889956b9f510	Variant: Rated Current: 6A / Poles Number: 2 [12000049041014366]
$28⁰⁰	In stock + −	DH-3880-0932290439cb0660c0c55ada	Variant: Rated Current: 16a / Poles Number: 1 [12000049041014369]
$24⁵²	In stock + −	DH-3880-27f6ba663bb1e4aba128f3cf	Variant: Rated Current: 10A / Poles Number: 2 [12000049041014368]
$27⁴⁴	In stock + −	DH-3880-e24ff02af91d9e5e3d508f4a	Variant: Rated Current: 20A / Poles Number: 1 [12000049041014371]
$24³²	In stock + −	DH-3880-4f0596cca64e68be6a9b0bb4	Variant: Rated Current: 16a / Poles Number: 2 [12000049041014370]
$29⁰⁰	In stock + −	DH-3880-5027a6fbad662d8817679891	Variant: Rated Current: 25A / Poles Number: 1 [12000049041014373]
$25⁵⁶	In stock + −	DH-3880-b273e80b60fd0c5a20d15b48	Variant: Rated Current: 20A / Poles Number: 2 [12000049041014372]
$31¹²	In stock + −	DH-3880-3491965ce54d40fd3efde705	Variant: Rated Current: 50A / Poles Number: 2 [12000051028402801]
$28⁷²	In stock + −	DH-3880-1494ef19f722690361feedc3	Variant: Rated Current: 32A / Poles Number: 1 [12000049041014375]
$25²⁴	In stock + −	DH-3880-6c4147febd976ba483c4715d	Variant: Rated Current: 25A / Poles Number: 2 [12000049041014374]
$29⁵²	In stock + −	DH-3880-1ea7bb65ef1b9e01e79b965d	Variant: Rated Current: 60A / Poles Number: 2 [12000051028402803]
$24⁸⁰	In stock + −	DH-3880-1b32ede87f3d73343a20c157	Variant: Rated Current: 32A / Poles Number: 2 [12000049041014376]

Kalifora

Kalifora is a global online marketplace that makes it easier to discover and shop for...

City: EN, Sheridan

Ask a question About vendor

Description

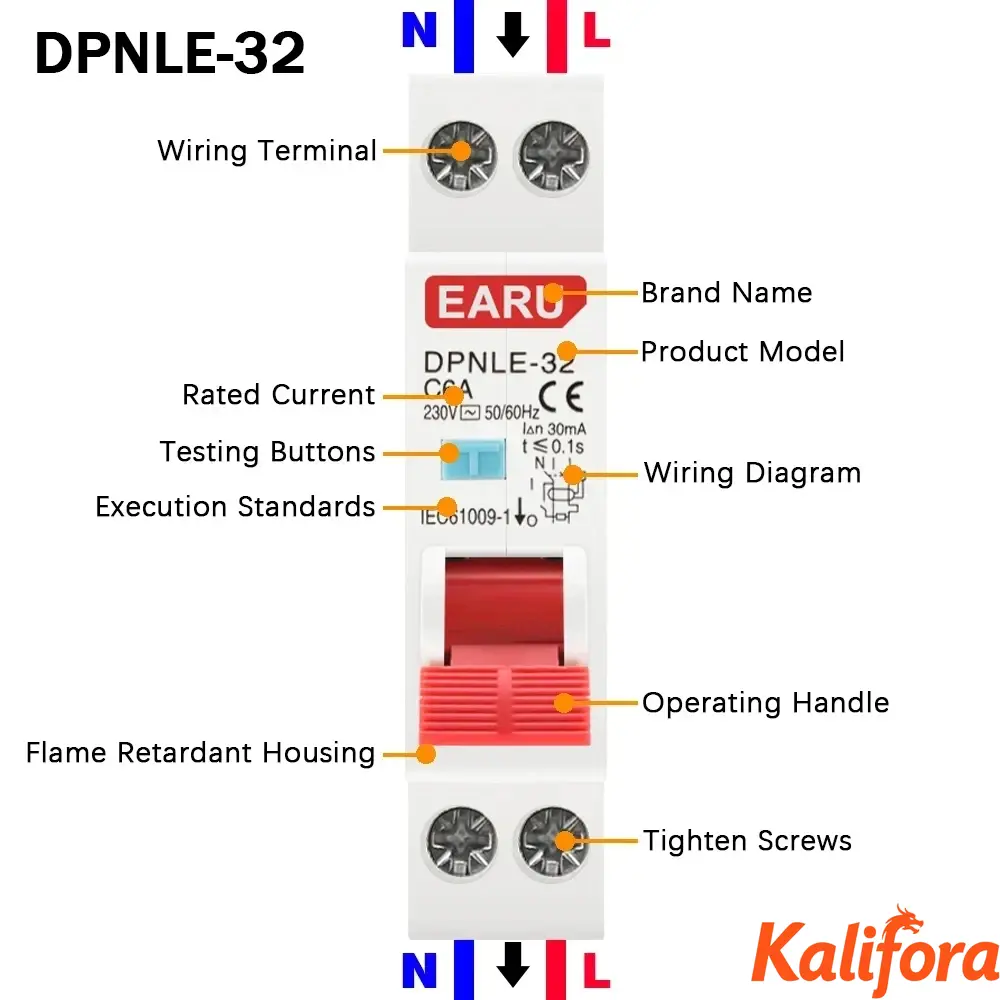

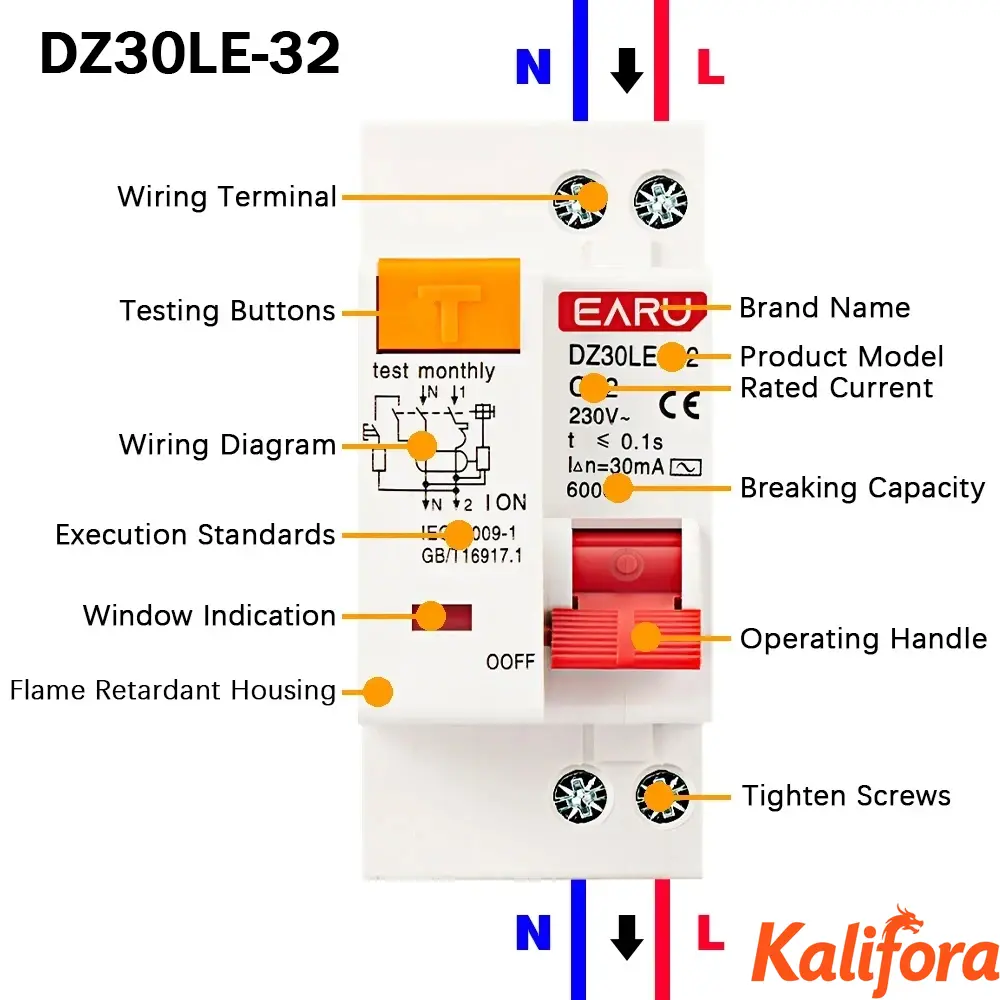

Construction and Feature

1.Provides protection against earth fault/leakage current, short-circuit,overload,and function of isolation.

2.Contact position indication.

3.Provides protection against indirect contact by human body.

4.Provides complementary protection against direct contact by human body.

5.Effectively protects electric equipment against insulating failure.

6.Equipped with switched neutral and phase pole .

7.Provides protection against over-voltage.

8.Provides comprehensive protection to household and commercial distribution systems.

Technical Data

1.Type: Electronic type

2.Residual current characteristics: AC

3.Pole No: 1P+N

4.Tripping curve: C

5.Rated short-circuit capacity:6KA

6.Rated Current(A): 6,10,16,20,25,32,63A

7.Rated Voltage:230VAC

8.Rated Frequency:50/60Hz

9.Rated residual operating current(mA): 30(63Ais 15mA)

10.Tripping duration:instantaneous under or equal 0.1s

11.Electro-mechanical: pillar terminal with clamp.

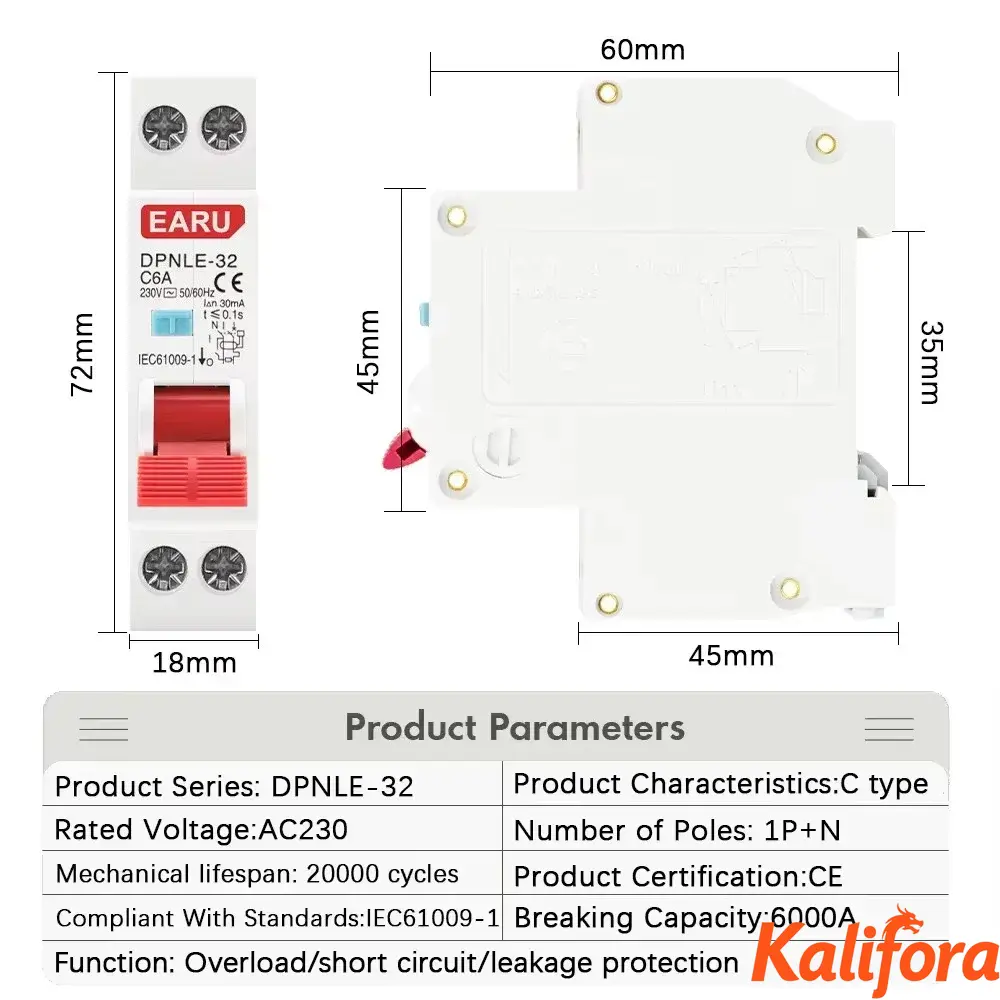

12.Terminal Connection Height:H1=16mm,H2=21mm

13.Over-votage tripping:280V±5%

14.Connection capacity: Flexible conductor 10mm², Rigid conductor 16mm².

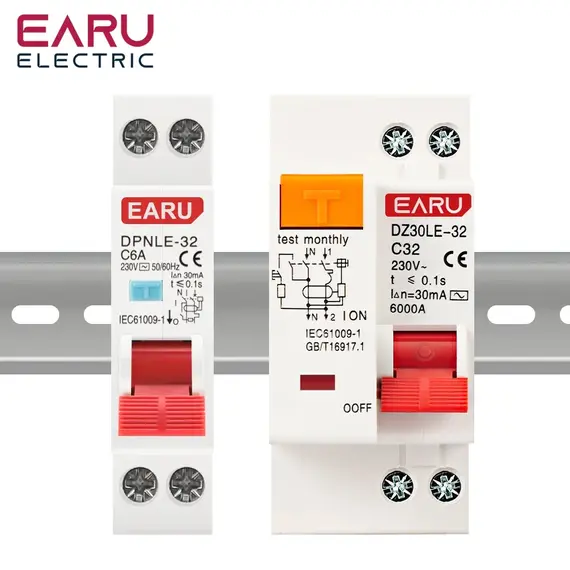

15.Installation: On symmetrical DIN Rail 35mm, Panel mounting Accessories

16.S2 Shunt Tripper

17.U2+O2 Over-voltage and under-votage tripper.

Product specifications

Brand Name	EARU
Does it include wireless functionality?	No
Does it include a Battery?	No
EU LVD Voltage	High voltage: Above 50Vac or 75Vdc
Type	Residual Current
Country of origin	China
Rated Voltage	220V
Type	Circuit breaker
Model Number	DPNLE-32/DZ30LE-32
Is Smart Device	no
Certification	CE
Certification	RoHS
Model Number 1	DPNLE-32
Model Number 2	DZ30LE-32
Model Number 3	DZ40LE-63
Model Number 4	DPNL
Model Number 5	EPNL
Model Number 6	DPNLE
Type 1	RCBO
Type 2	RCCB
Type 3	MCB
DPNLE-32/DZ30LE-32/DZ40LE-63 Rated Voltage	AC 230V
Frequency	50/60Hz
DPNLE-32/DZ30LE-32/DZ40LE-63 Rated Current	6A/10A/16A/25A/32A/40A/50A/63A
Breaking Capacity(Icu)	6000A
Current Leakage Protection Sensitivity	30mA
Current Leakage Protection Type	Type AC
RDC Trip Mechanism	Electronic
Tripping Curve	C Cruve
Tripping Time	≤0.1S

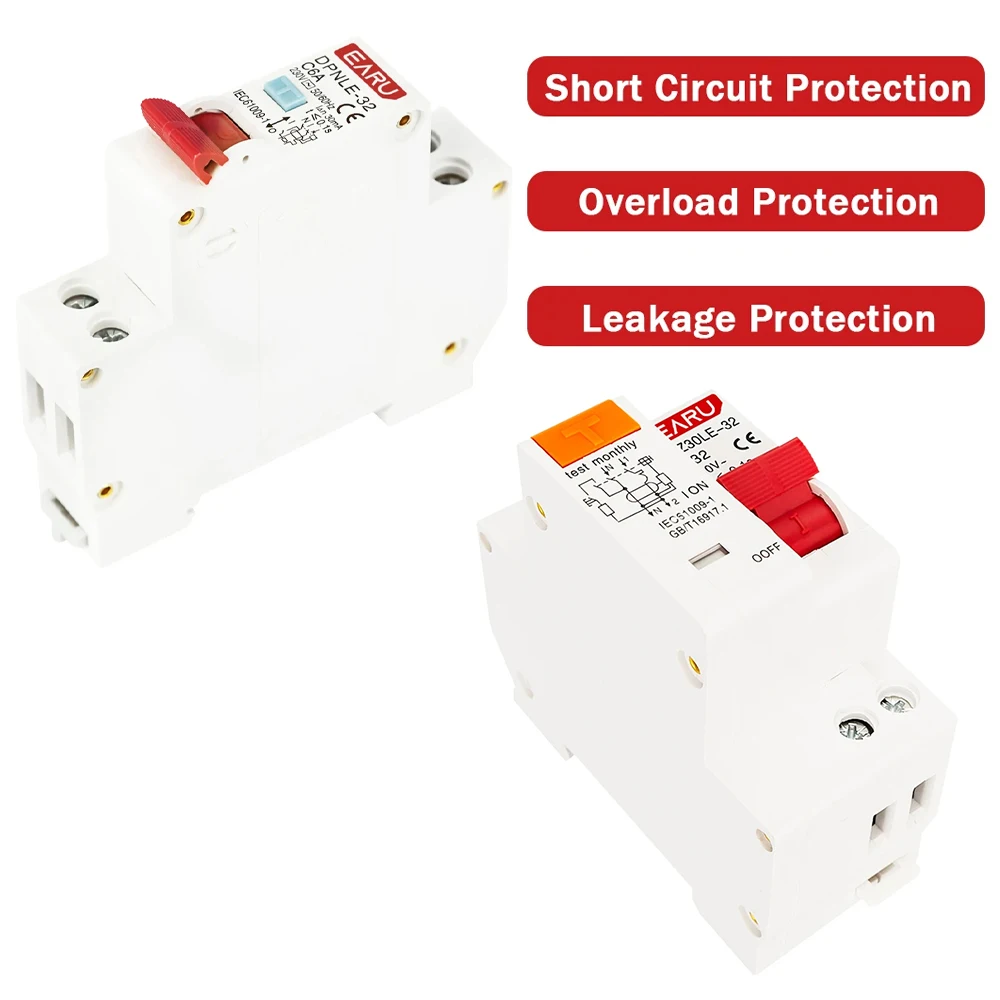

Function 1	Current Leakage Protection
Function 2	Over Load Protection
Function 3	Short Circuit Protection
Product Certification	CE/RoHS/REACH/SCCP
Standard	EN IEC61009-1
Installation	35MM Din Rail
Poles	1P+N
