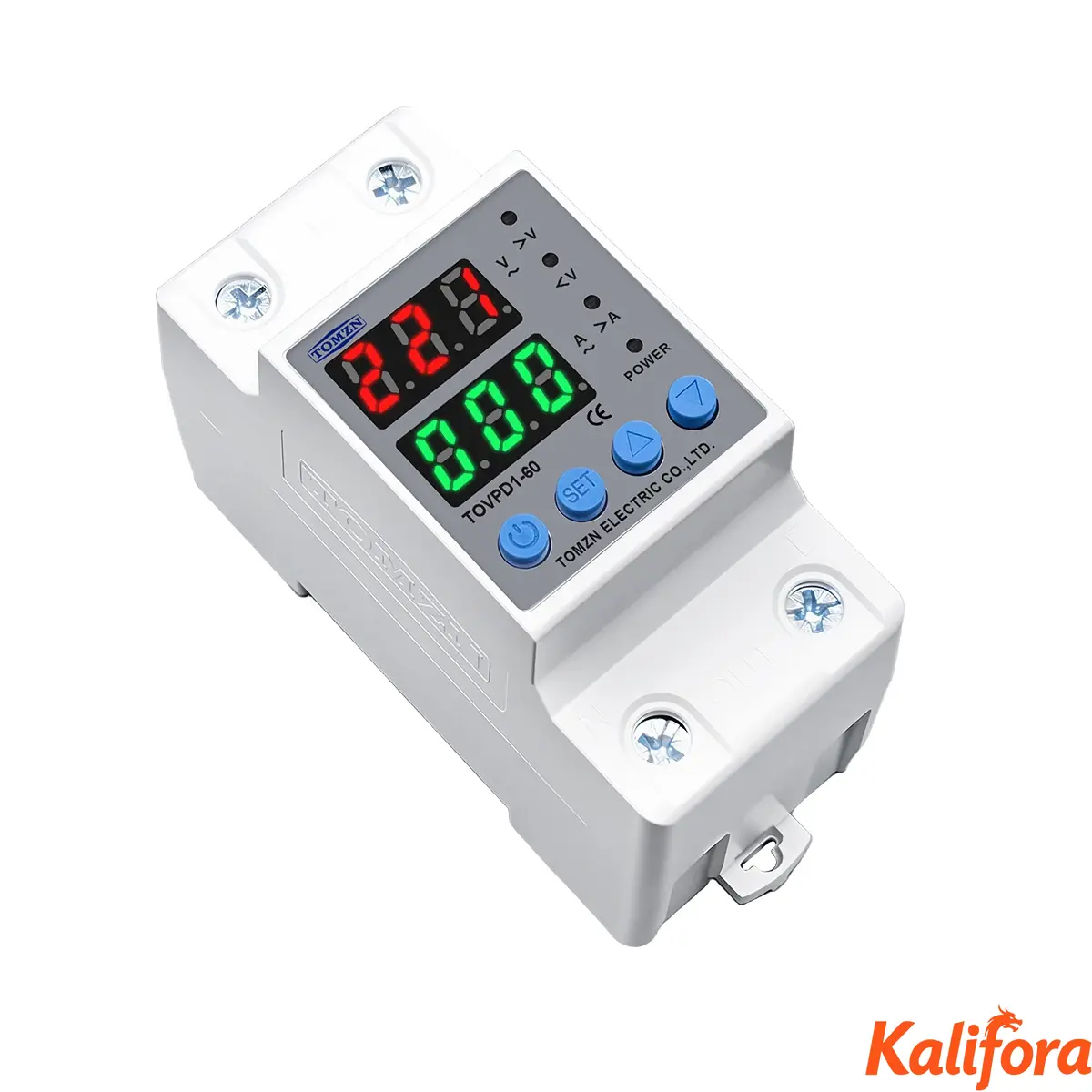

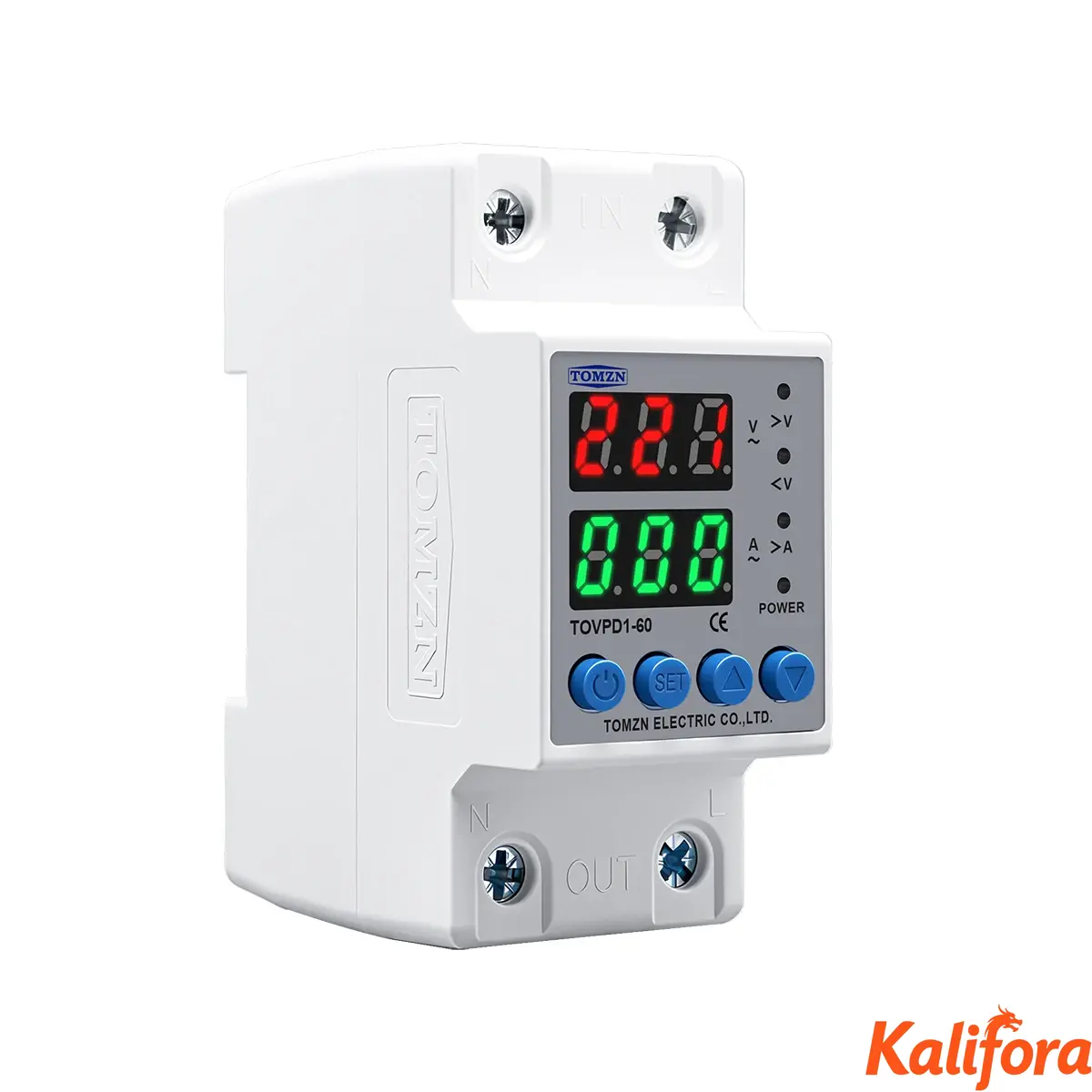

Din Rail 230V Adjustable Over and Under Voltage Protective Device Protector Relay Monitor Current Limit TOMZN 40A 60A 80A 100A

Write a review

$29²⁸

Add to cart

Din Rail 230V Adjustable Over and Under Voltage Protective Device Protector Relay Monitor Current Limit TOMZN 40A 60A 80A 100A

CODE:

DH-3847-78f8a172bb31490a24e8c407

Din Rail 230V Adjustable Over and Under Voltage Protective Device Protector Relay Monitor Current Limit TOMZN 40A 60A 80A 100A

Write a review

$29²⁸

In stock

Variant:

+ −

Add to wish list Compare

Shipping time and rates

View all variations as list

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Variant
$29²⁸	In stock + −	DH-3847-78f8a172bb31490a24e8c407	Variant: Rated Current: 60A [12000038011520565]
$25⁵²	In stock + −	DH-3847-cbe05379b3a3d0a61947c308	Variant: Rated Current: 40A [12000038011520564]
$28⁴⁸	In stock + −	DH-3847-2b48c042cb2de9c6449583f6	Variant: Rated Current: 100A [12000038011520567]
$30²⁸	In stock + −	DH-3847-92874b93d144a4252064fea6	Variant: Rated Current: 80A [12000038011520566]
$30⁵²	In stock + −	DH-3847-828e810703a9c6a72cae6756	Variant: Rated Current: 63A [12000049466727702]
$60³⁶	In stock + −	DH-3847-99de35dda6c3daee65bf846f	Variant: Rated Current: Other [12000038011520568]

Kalifora

Kalifora is a global online marketplace that makes it easier to discover and shop for...

City: EN, Sheridan

Ask a question About vendor

Description

Functions:

1.Over-voltage protection

2.Under-voltage protection

3.Over-current protection

4.Automatic recovery

5.Voltage display(voltage measurement)

6.Current display (current measurement)

7. Voltage calibration: Voltage +-10% adjustable. A13

8. Restore factory settings: press the down button for more than 12s

9.Fault inquiry: Press the UP button from more than 12S

Product Parameters:

1.Model number:TOVPD1-60-EC

2.Power supply:230VAC 50/60Hz

3.Max.Loading power:1~40A Adjustable(default:40A)

1~63A Adjustable(default:63A)

4.Over-voltage protection value range:230V~300~OFF(default:270V)

Over-voltage recovery voltage range:225V--295V(default:250V)

Over-voltage protection action time:0.1s~30s(default value:0.5s)

Over-voltage recovery delay time:1s~500s(default:30s)

5.Under-voltage protection value range:140V--210V --OFF(default:170V)

Under-voltage recovery voltage range:145V--215V (default:190V)

Under-voltage protection action time:0.1s~30s(default:0.5s)

Under-voltage recovery delay time:1s~500s(default:30s)

6.Over-current adjustment range:1-40A (default:20A)1-63A (default:40A)

Over-current action range:0.1~30 second (default:0.5s)

Over-currentrecovery delay time:1s~500s(default:30s)

7.Power-on delay time:1s~500s(default:10s)

9.Power consumption : <2W

10.Electric machinery life : 100,000 times

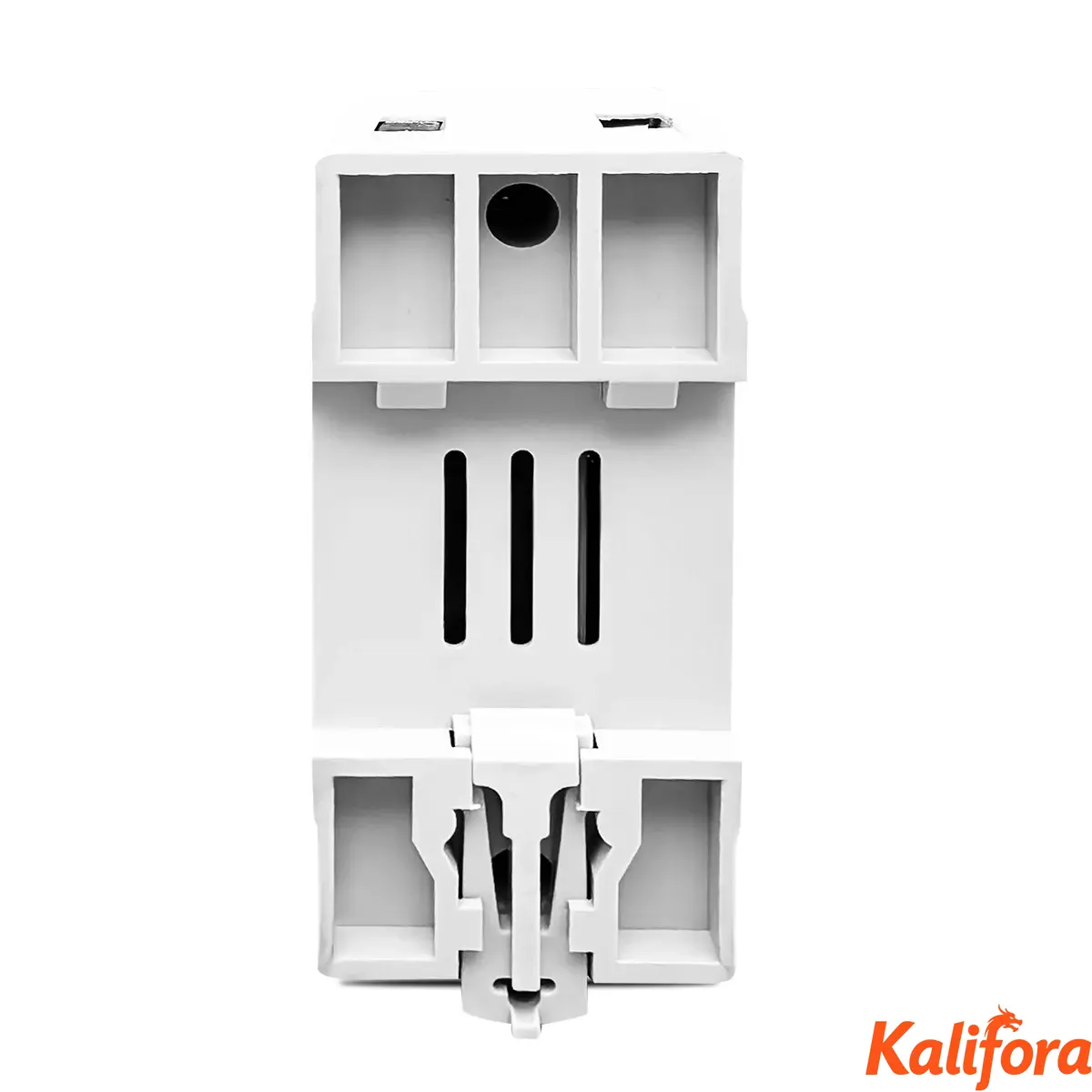

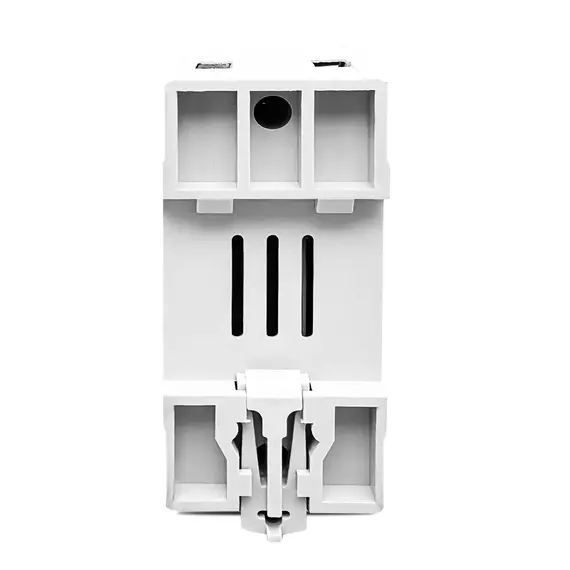

11.Installation:35mm DIN rail

110V Version
2.Power supply:110VAC 50/60Hz
3.Max.Loading power:1~63A Adjustable(default:63A)
4.Over-voltage protection value range:80V~300~OFF(default:145V)
Over-voltage recovery voltage range:75V--295V(default:140V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage r ecovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:80V--300V --OFF(default:90V)
Under-voltage recovery voltage range:85V--305V (default:95V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage r ecovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-63A (default:40A)
Over-current action range:0.1~30 second (default:0.5s)
Over-current r ecovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
8.Power consumption : <2W
9.Electric machinery life : 100,000 times
10.Installation:35mm DIN rail

Product specifications

Brand Name	TOMZN
Does it include wireless functionality?	No
Does it include a Battery?	No
EU LVD Voltage	High voltage: Above 50Vac or 75Vdc
Type	Voltage protector
Country of origin	China
Type	Voltage relay
Model Number	TOVPD1-60-EC
Is Smart Device	no
Certification	CE
