200/100/40/20/10/5 Pcs DC Solar Connector 1000V30A Panel Stecker IP67 waterproof Connectors Kit for PV/MC Cable 2.5/4/6mm2

Write a review

$29⁵²

Add to cart

200/100/40/20/10/5 Pcs DC Solar Connector 1000V30A Panel Stecker IP67 waterproof Connectors Kit for PV/MC Cable 2.5/4/6mm2

CODE:

DH-3315-913022fca97994497dd29240

200/100/40/20/10/5 Pcs DC Solar Connector 1000V30A Panel Stecker IP67 waterproof Connectors Kit for PV/MC Cable 2.5/4/6mm2

Write a review

$29⁵²

In stock

Variant:

+ −

Add to wish list Compare

Shipping time and rates

View all variations as list

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Variant
$29⁵²	In stock + −	DH-3315-913022fca97994497dd29240	Variant: Color: Orange [12000043000317825]
$19⁴⁴	In stock + −	DH-3315-ebf7c880320df07affab9646	Variant: Color: Gold [12000043000317824]
$37⁸⁸	In stock + −	DH-3315-8f3c05805fa2fa5000dc0e78	Variant: Color: Red [12000043000317826]
$49³⁶	In stock + −	DH-3315-0ac68ee7f49318241f882424	Variant: Color: Lavender [12000041874140027]
$27⁸⁰	In stock + −	DH-3315-e7d9911ca9b00a677aeb7ffe	Variant: Color: Dark Grey [12000041874140026]
$17⁴⁰	In stock + −	DH-3315-4fbd9bc4f0e5bb3093c2e542	Variant: Color: Blue [12000050617634963]
$86²⁸	In stock + −	DH-3315-23f4941d291f3cb860f33546	Variant: Color: Ivory [12000041874140029]
$134⁹²	In stock + −	DH-3315-3bd33406d5038b6d16f20347	Variant: Color: MULTI [12000041874140028]
$24⁶⁰	In stock + −	DH-3315-ae210c9ba3419b1654099f30	Variant: Color: army green [12000043000317823]
$14⁶⁰	In stock + −	DH-3315-3ace7466cf79b924e06d73a2	Variant: Color: Brown [12000041874140030]

Kalifora

Kalifora is a global online marketplace that makes it easier to discover and shop for...

City: EN, Sheridan

Ask a question About vendor

Description

10/20/50 Pairs Solar Connectors 1000V 30A Solar Panel Branch PV Connectors Connect solar Tool Crimping pliers

Description:

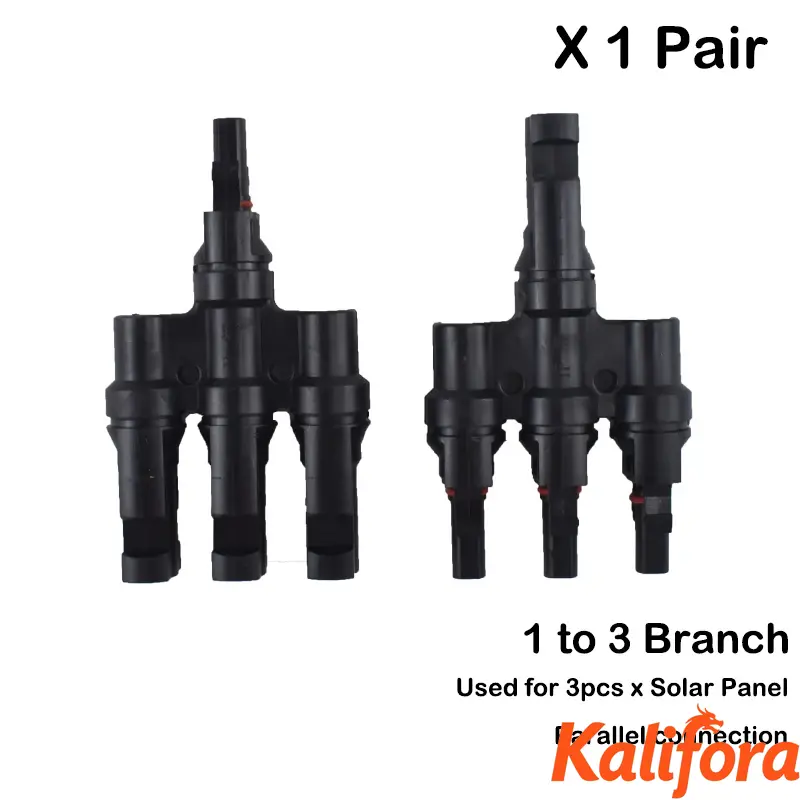

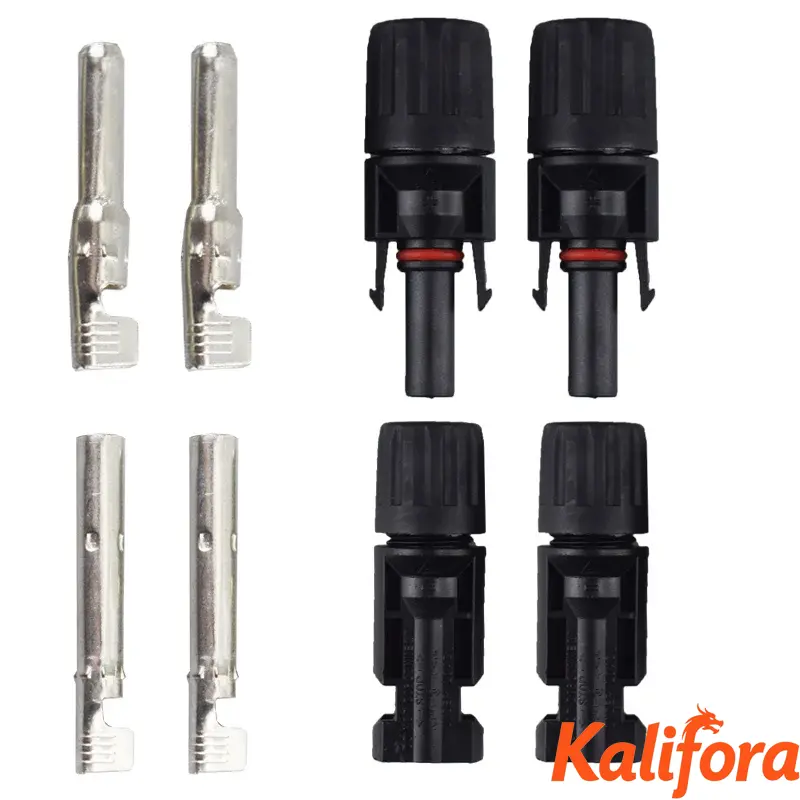

They are used to connect multiple solar panels or groups of solar panels together in a solar field, and typically used in parallel applications. The metal pin is made from high quality machined copper and sealed tip (compare to the cheap sheet metal pin) that can ensure excellent electrical contact.

Feature:

-Compatible with PV cables with different insulation diameters
-It can be used in harsh environment
-With excellent aging resistance and UV endurance

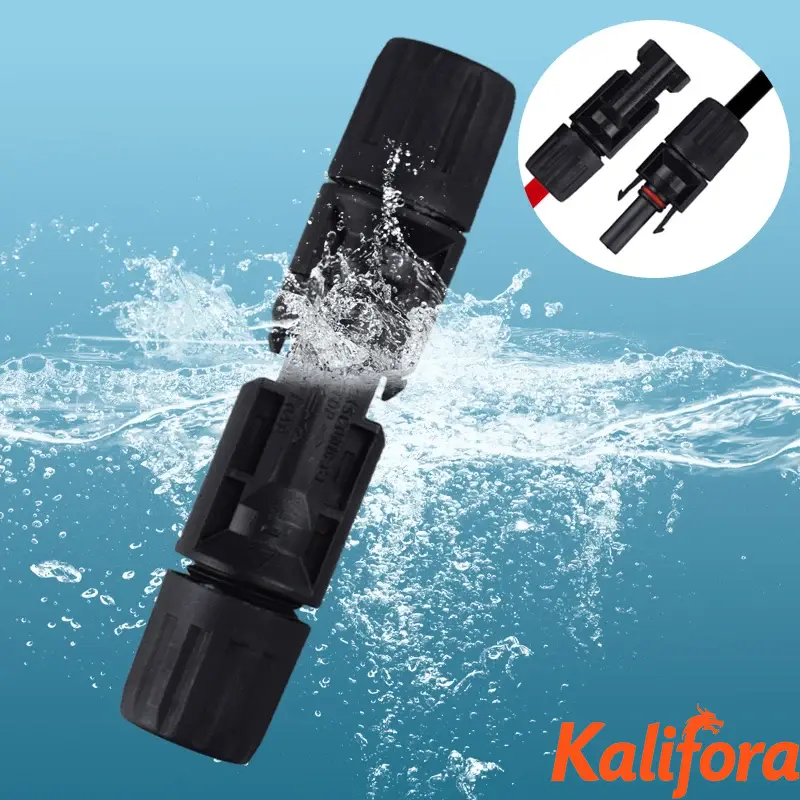

-Double seal rings for better waterproof effect
-Created seal, design of dust proof
-Load capability with big current and high voltage
-Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
-Strong pulling force capability
-Resistance of extra high & low temperature and fireproof
-Lower contact resistance

Technical parameters:
-Rated Current: 30A
-Rated voltage: 1000VDC
-Suitable cable: 2.5mm2, 4mm2, 6mm2(AWG14, AWG12, AWG10) -Contact resistance: ≤0.2mmΩ
-Waterproof degree:IP67
-Safety Class: II
-Withdrawal force: ≥50N
-Pin dimension: 4.0mm dia.
-Insertion force: ≤50N
-Insulation material: PPO+PA
-Connecting system: crimping connection
-Contact material: copper, tin plated
-Temperature range: -40 °C ~ +90 °C

Product specifications

Voltage	1000 V
Country of origin	China
EU LVD Voltage	Low voltage: Below 50Vac or 75Vdc
电压	1V 2V 4V 5V 12V 12V 等或自定义
Model Number	solar connectors
Rated voltage	1000V(Solar Connectors Rated voltage)
Rated current	30A( Connector Rated current)
Certification	CE
Adapter Wire	OD 5mm-7mm
Does it include a Battery?	No
