TEC1-12706 12706 TEC1-12715 TEC1-12705 Thermoelectric Cooler Peltier 40*40MM 12V New of semiconductor refrigeration

Write a review

$21⁸⁸

Add to cart

TEC1-12706 12706 TEC1-12715 TEC1-12705 Thermoelectric Cooler Peltier 40*40MM 12V New of semiconductor refrigeration

CODE:

DH-1483-7883da3540bbc0088f962392

TEC1-12706 12706 TEC1-12715 TEC1-12705 Thermoelectric Cooler Peltier 40*40MM 12V New of semiconductor refrigeration

Write a review

$21⁸⁸

In stock

Variant:

+ −

Add to wish list Compare

Shipping time and rates

View all variations as list

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Variant
$21⁸⁸	In stock + −	DH-1483-7883da3540bbc0088f962392	Variant: Color: Khaki [12000037923666799]
$12²⁸	In stock + −	DH-1483-25fef66ee34d7d392965db71	Variant: Color: WHITE [12000037923666798]
$12⁴⁰	In stock + −	DH-1483-12bff1ca19cebefd7c226a08	Variant: Color: Blue [12000037923666800]

Kalifora

Kalifora is a global online marketplace that makes it easier to discover and shop for...

City: EN, Sheridan

Ask a question About vendor

Description

Note:

If both sides of the cooling sheet are hot, the reason is that there is no heat dissipation or poor heat dissipation, which leads to the accumulation of heat on the hot surface and cannot be dispersed, leading to the transfer of heat to the cold surface, which will lead to the heating on both sides. So in the process of electricity use must pay attention to the heat dissipation, otherwise it is easy to damage the refrigeration sheet.

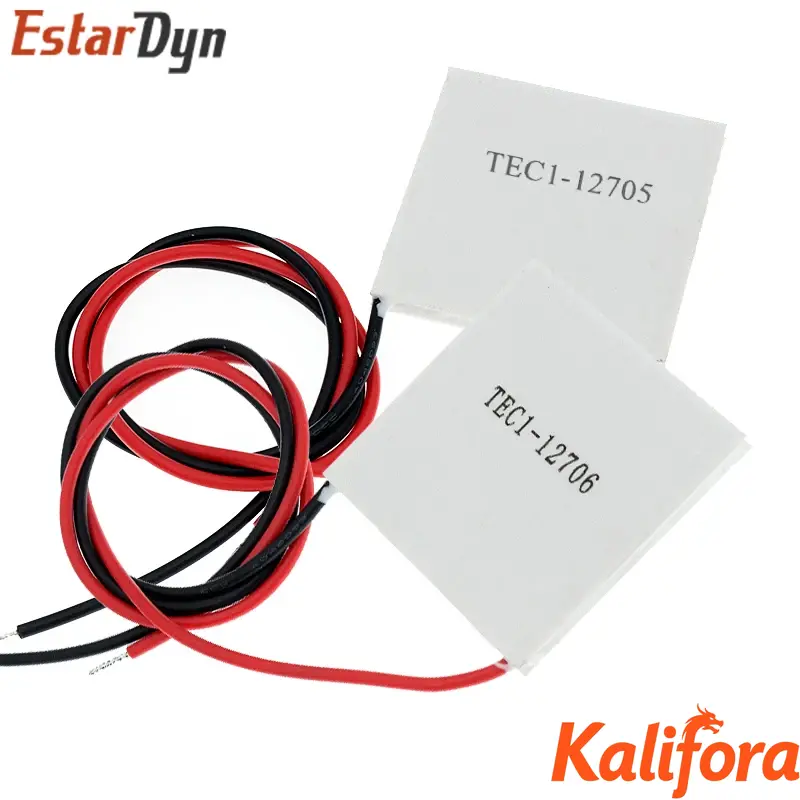

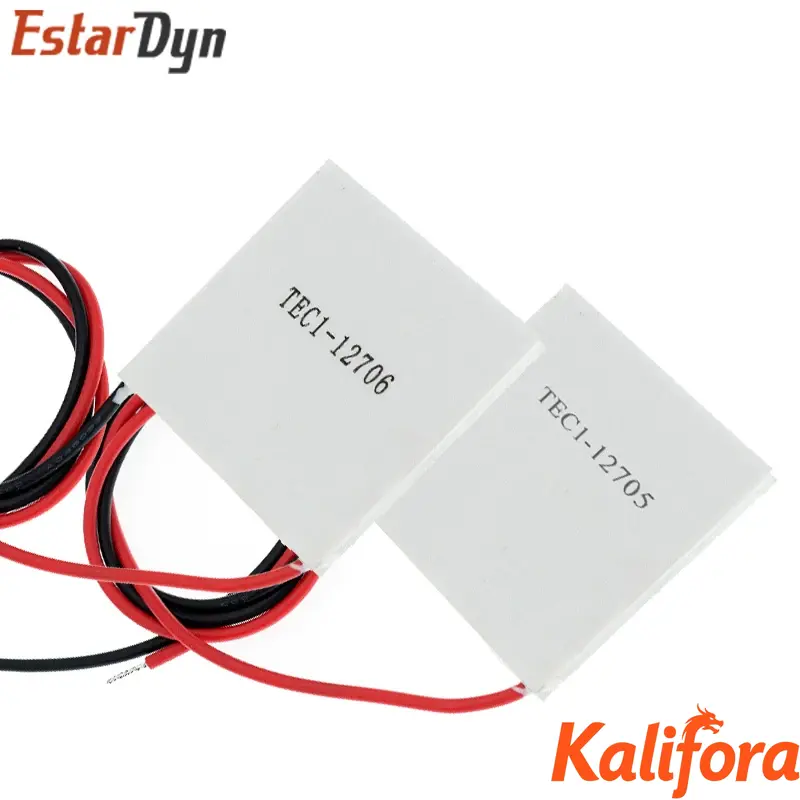

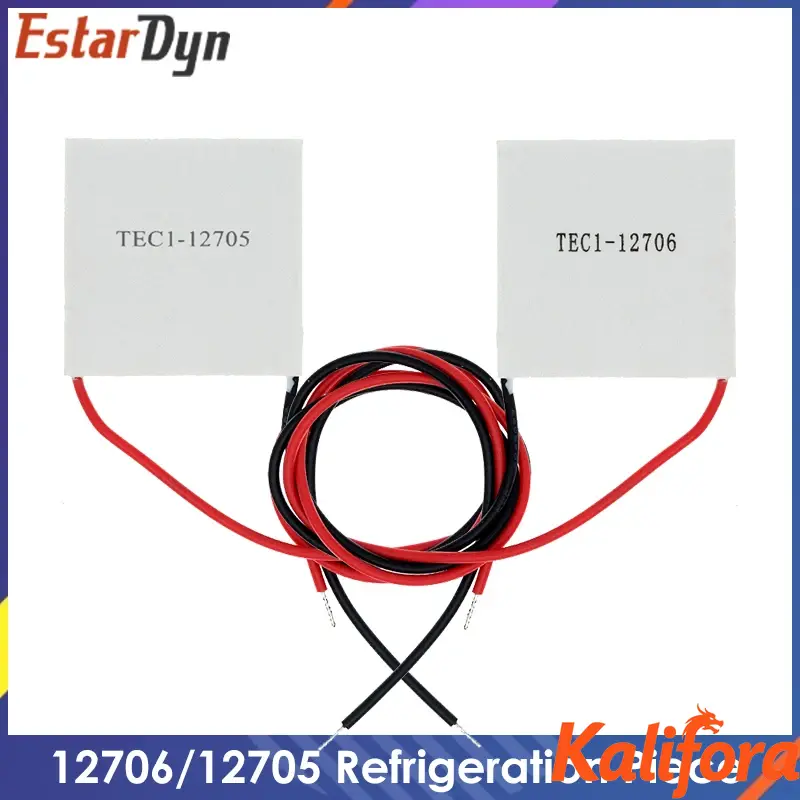

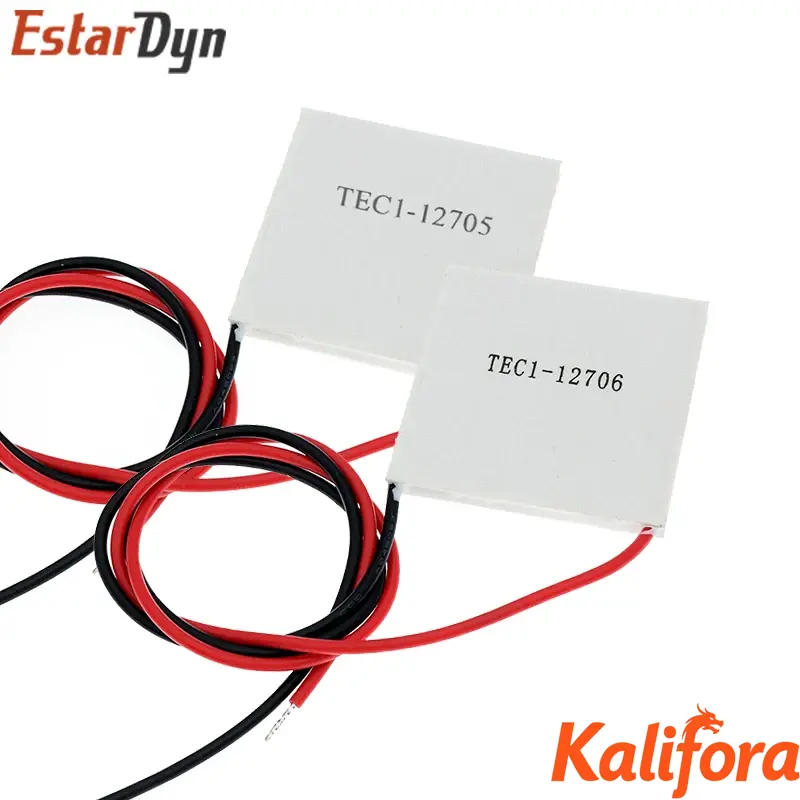

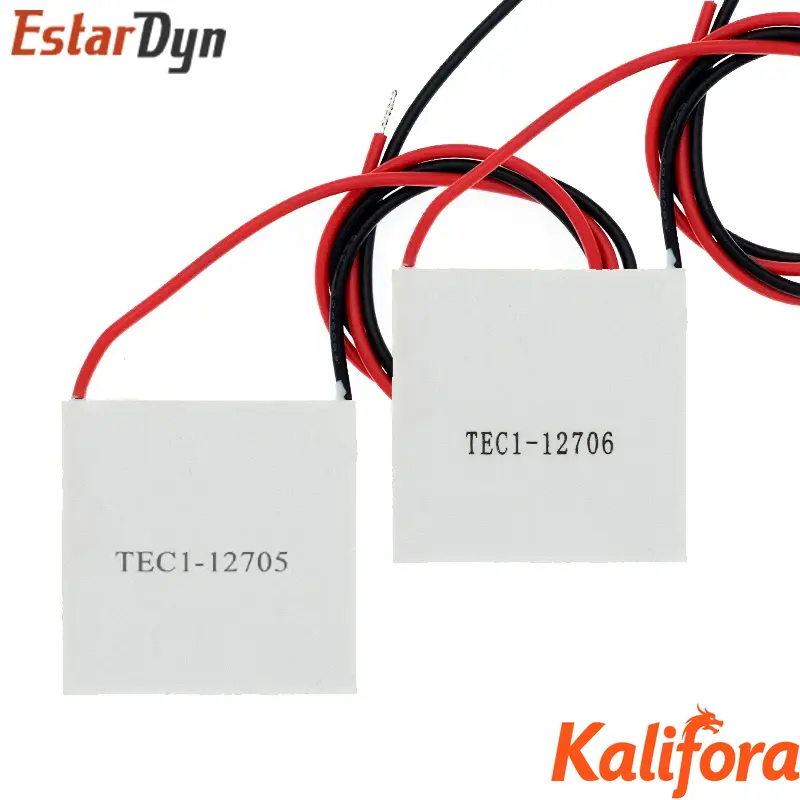

Chip Type: TEC1-12706

External dimensions: 40 * 40 * 3.75mm

Internal resistance: 2.1 ~ 2.4 (ambient temperature of 23 ± 1 'C, 1kHZ Ac test)

The maximum temperature difference: Tmax (Qc = 0) above 59 'C.

Working current: Imax = 4.3-4.6A (rated at 12V)

Rated voltage: 12V (Vmax: 15V starting current 5.8A)

Cooling power: Qcmax 55W

Working environment: temperature range -55 'C ~ 83'C (high ambient temperature drop directly affect the cooling efficiency)

Description :

Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own

custom car drink warmer/cooler.

Since they consit primarily of semiconductor material sandwiched between ceramic plates and have no moving parts

These devices must be used in conjunction with a heat sink to avoid burned

Each device is full inspected and tested

Fitted with 6-inch insulated leads

Chip model: TEC1-12705

Dimensions: 40*40*3.8mm Component logarithm 127

Wire specification: lead length 100±5mm RV standard single lead 5mm tin

Internal resistance: 2.4~2.7Ω (ambient temperature 23±1℃, 1kHz AC test)

Maximum temperature difference: △Tmax(QC =0) above 61℃.

Operating current: IMAX =5 (when rated voltage starts)

Rated voltage: DC12V (Vmax: 15.5V)

Refrigerating power: QCmax 45W

Assembly pressure: 85N/cm2

Working environment: temperature range -55℃ ~ 83℃ (too high ambient temperature will directly affect the refrigeration efficiency)

Packaging process: around standard 704 silicone rubber seal

Packing standard: foam box packing, storage condition ambient temperature -10℃ ~ 40℃

Storage condition: -40~60℃

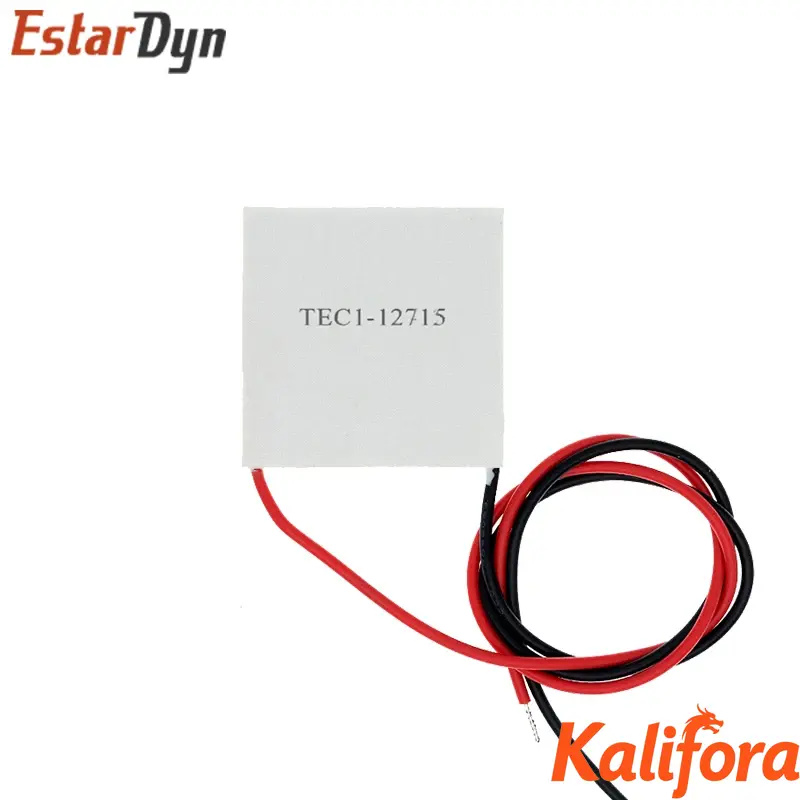

Product Model: TEC1-12715

High voltage: 15.4V

High current: 15A

Cooling capacity: 134W

Temperature: 65 ℃

Product specifications

Brand Name	Estardyn
Country of origin	China
Condition	New
Type	Voltage Regulator
Supply Voltage	12v
Dissipation Power	12706
Operating Temperature	-55℃-83℃
Application	Computer
Package	SMD
