Description
Multi-Frequency Remote Cloner (300-868MHz)
Product Overview
This professional-grade multi-frequency remote cloner supports 300-868MHz range and can copy both rolling code and fixed code (including 1527 encoding) remote signals. Powered by a 3V CR2032 battery, it features simple operation and strong compatibility, making it an ideal tool for replacing or backing up remote controls.
Key Features
Wide Frequency Support: 300-868MHz range, compatible with most remote devices
Dual-Mode Copying: Supports rolling code and fixed code (1527) replication
One-Button Operation: Simple key combinations for quick copying
Portable Design: Compact and lightweight for easy carrying
Rolling Code Copying Steps
Press and hold A and B buttons simultaneously, release B button and press it three times consecutively
Release all buttons, LED flashes red
Place the original remote close to the cloner (within 3cm)
Press the original remote button, wait for cloner's red LED to turn blue
Press the first button on the cloner to confirm, LED turns off indicating success
Repeat the above steps for other buttons (4-button remote requires 4 separate copies)
After copying, re-pair with the receiver for use
Fixed Code (1527) Copying Steps
(Same as rolling code operation process)
Technical Specifications
Operating Voltage: 3V (CR2032 battery)

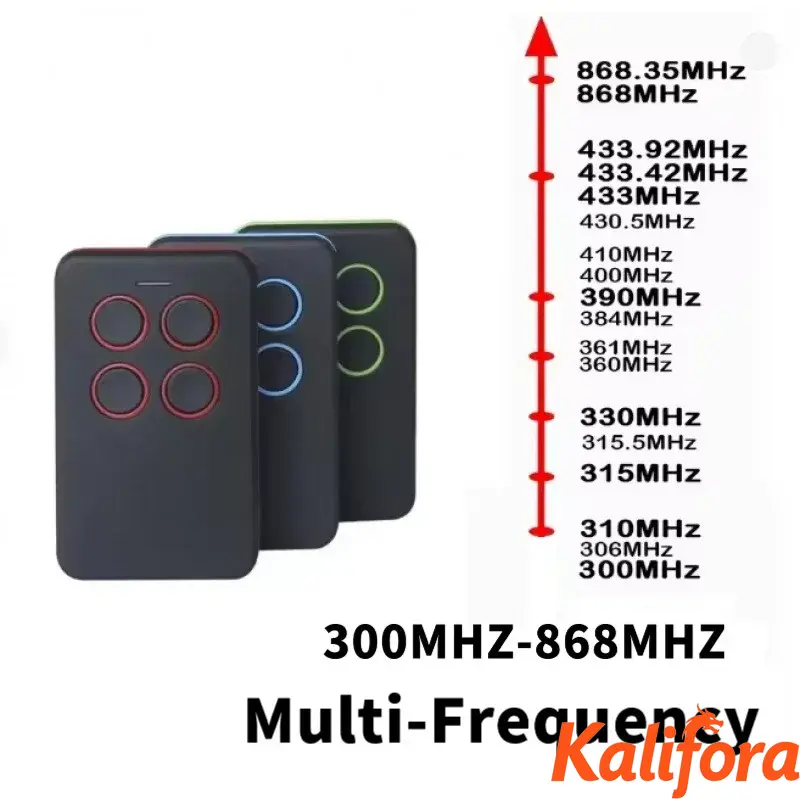

Frequency Range: 300-868MHz
Supported Encoding: Rolling code/Fixed code (1527)
Effective Distance: ≤3cm (must be close during copying)
Housing Material: ABS engineering plastic
Applications
Garage door remote backup
Access control system remote copying
Smart home remote management
Industrial equipment remote backup
Precautions
Ensure the original remote has sufficient power during copying
Keep both devices in close contact during the copying process
Some highly encrypted remotes may not be copyable
Must re-pair with the receiver after copying
Package Contents
Cloner main unit ×1
User manual ×1
Product specifications
| Encoding method | Rolling code |
|---|---|
| Country of origin | China |
