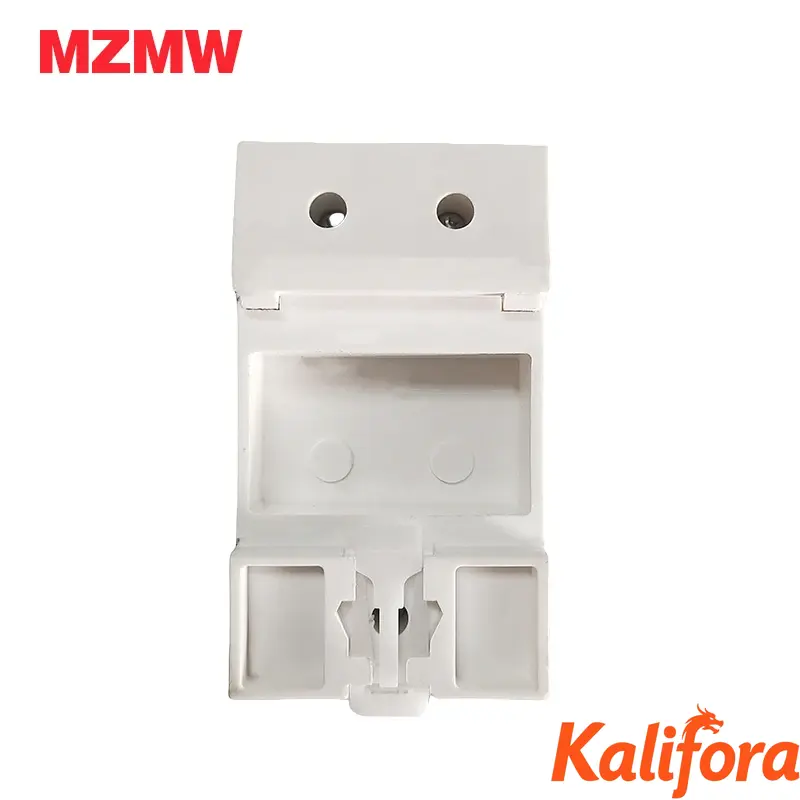

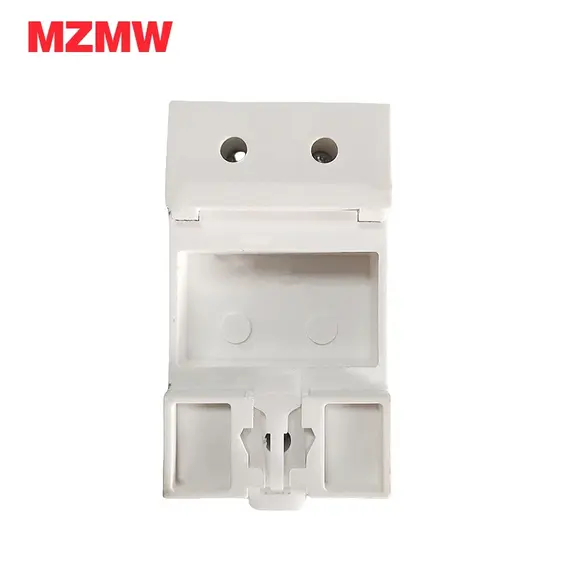

MZMW EU 35mm Modular Din Rail Power Socket Plug 10A 16A 250V AC Industrial Residential General-Purpose Adapter Connector CE
$4896
MZMW EU 35mm Modular Din Rail Power Socket Plug 10A 16A 250V AC Industrial Residential General-Purpose Adapter Connector CE
DH-3310-29398a6e4cb5b7f792f364e0
Kalifora is a global online marketplace that makes it easier to discover and shop for...
City: EN, Sheridan
Description
Description
Rated voltage：250V
Rated frequency：40-60Hz
Rated current：10A/16A
Connection mode：2P+PE
Protection degree：IP 20
Grounded socket is suitable for single-phase power supply, used in the auxiliary AC circuit for connecting electrical appliances (portable lamps, power supply, etc.).
Note：The socket must be installed and connected by professional electrical personnel.

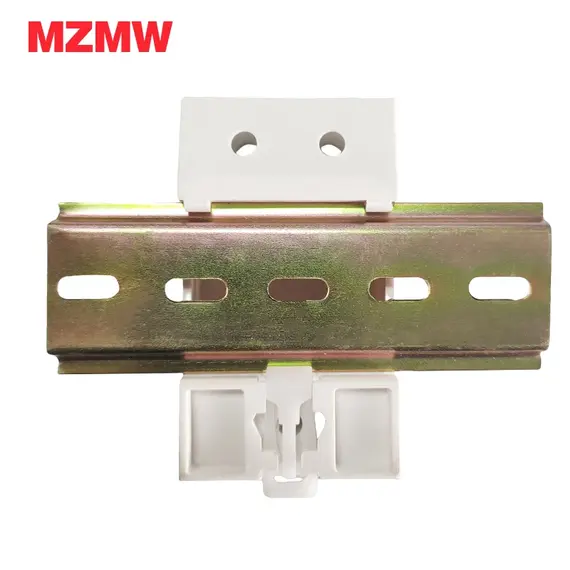

The socket is mounted on DIN 35mm guide rail, the tightening torque is 2.5 N.m.
Rated voltage：250V
Rated frequency：40-60Hz
Rated current：10A/16A
Connection mode：2P+PE
Protection degree：IP 20
Grounded socket is suitable for single-phase power supply, used in the auxiliary AC circuit for connecting electrical appliances (portable lamps, power supply, etc.).
Note：The socket must be installed and connected by professional electrical personnel.
The socket is mounted on DIN 35mm guide rail, the tightening torque is 2.5 N.m.
Product specifications
| Country of origin | China |
|---|---|
| EU LVD Voltage | High voltage: Above 50Vac or 75Vdc |
| Certification | CE |
| Protection class | IP 20 |
| Is Smart Device | no |
| Material | Plastic |
| Rated Current | 10A,16A |
| Grounding | Standard Grounding |
| Backlight/Indication | Not |
| Installation Type | Wall Mounted |
| Application | Residential / General-Purpose |
| Shape | Rectangular |
| Socket Type | Socket 220V |
| Brand Name | MZMW |
Features
Variant
Type: Wall Socket [12000044195622068]
